Reelmaster 7000- D Hydraulic SystemPage 5 - 29

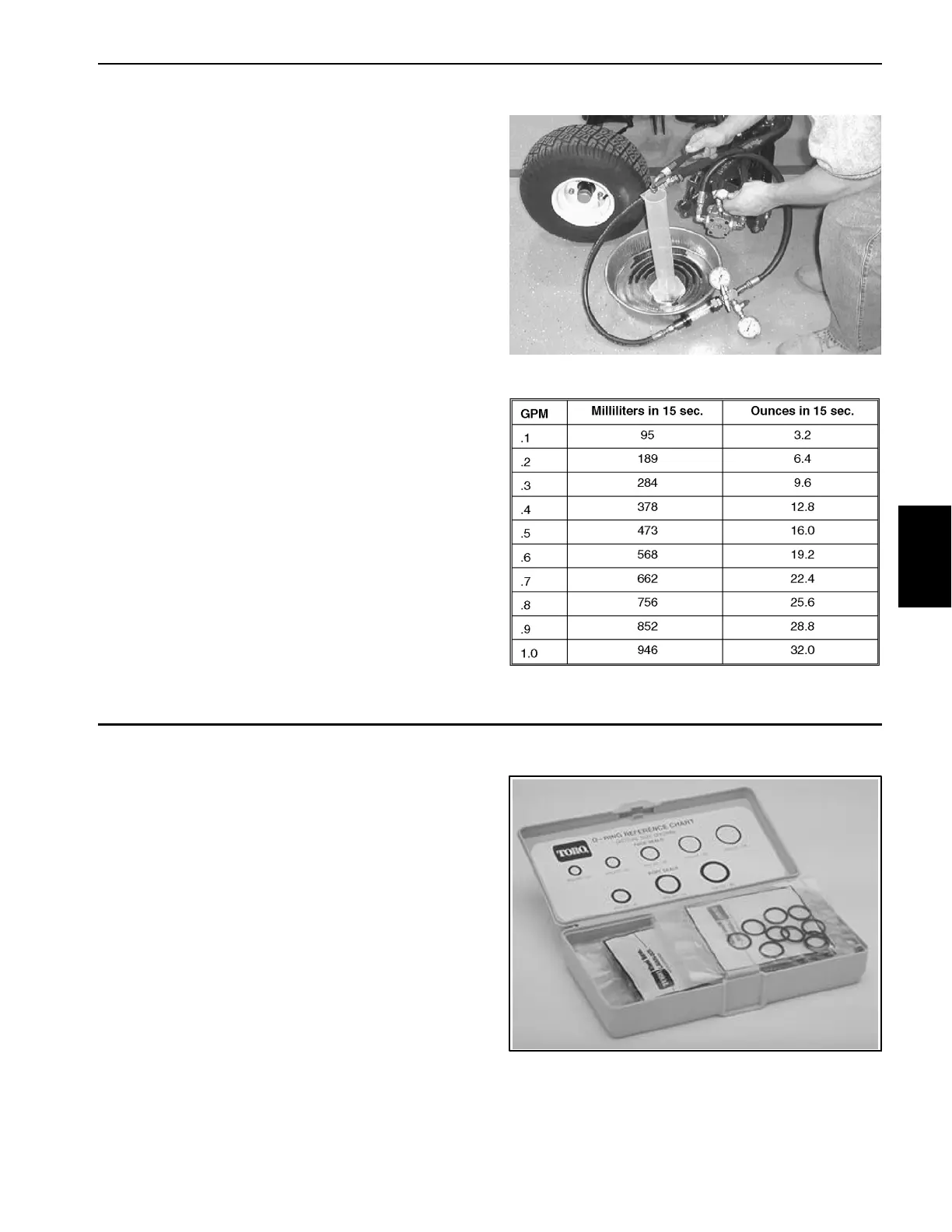

Measuring Container
Use this container for doing hydraulic motor efficiency
testing (motors with case drain lines only). Measure effi-
ciency of a hydraulic motor by restricting the outlet flow
from the motor and measuring leakage from the case
drain line while the motor is pressurized by the hydraulic
system.
The table in Figure 25 provides gallons per minute
(GPM) conversion for measured milliliter or ounce motor
case drain leakage.
Toro Part Number: TOR4077
Figure 24
Figure 25
O- ring Kit
The kit includes O- rings in a variety of sizes for face seal
and port seal hydraulic connections. It is recommended
that O- rings be replaced whenever a hydraulic connec-
tion is loosened.
Toro Part Number: 117- 2727
Figure 26
