Toro 04022 Service Manual

Greensmaster Flex 21 Page 7 – 23 Cutting Unit (Rev. C)
NOTE: Special tool TOR4105 (see Special Tools) can
be used instead of washers and spacer when installing
bearings and seals in roller.
2. Position a new bearing, black assembly washer (see
Special Tools) and original lock nut onto each end of the
roller shaft (Fig. 35).
3. Tighten nuts until the bearings are seated into each
end of the roller.
4. Remove nut and black assembly washer from each
end of the roller.
IMPORTANT: Failure to grease bearing lock nut be-
fore seal installation may result in seal damage.
5. Apply a coating of grease to the nut surface to pre-
vent seal damage during seal installation (Fig. 36).
6. Carefully install seals onto bearing lock nuts. Pack
the back of the seal 75 to 90% full with #2 grease (Fig.
36).
7. Install a nut with seal onto each end of the roller shaft.
Tighten nuts until they bottom against bearings (Fig. 37).
Remove nuts from roller shaft.
8. Position an assembly spacer and yellow assembly
washer (see Special Tools) on each end of roller shaft
(Fig. 38). Thread nut onto each end of shaft.
9. Tighten each nut until the yellow assembly washers
bottom out against the roller housing. Remove nuts, as-
sembly washers and assembly spacers from roller
shaft.
NOTE: If original bearing lock nut(s) are being used,
apply Loctite #242 (or equivalent) to threads of lock
nut(s).
10.Insert a V–ring onto each bearing lock nut.
11. Lubricate lips of installed seals with #2 grease.
12.Install bearing lock nut with V–ring onto each end of
the roller shaft. Torque lock nuts from 25 to 30 ft–lb (34
to 41 N–m).

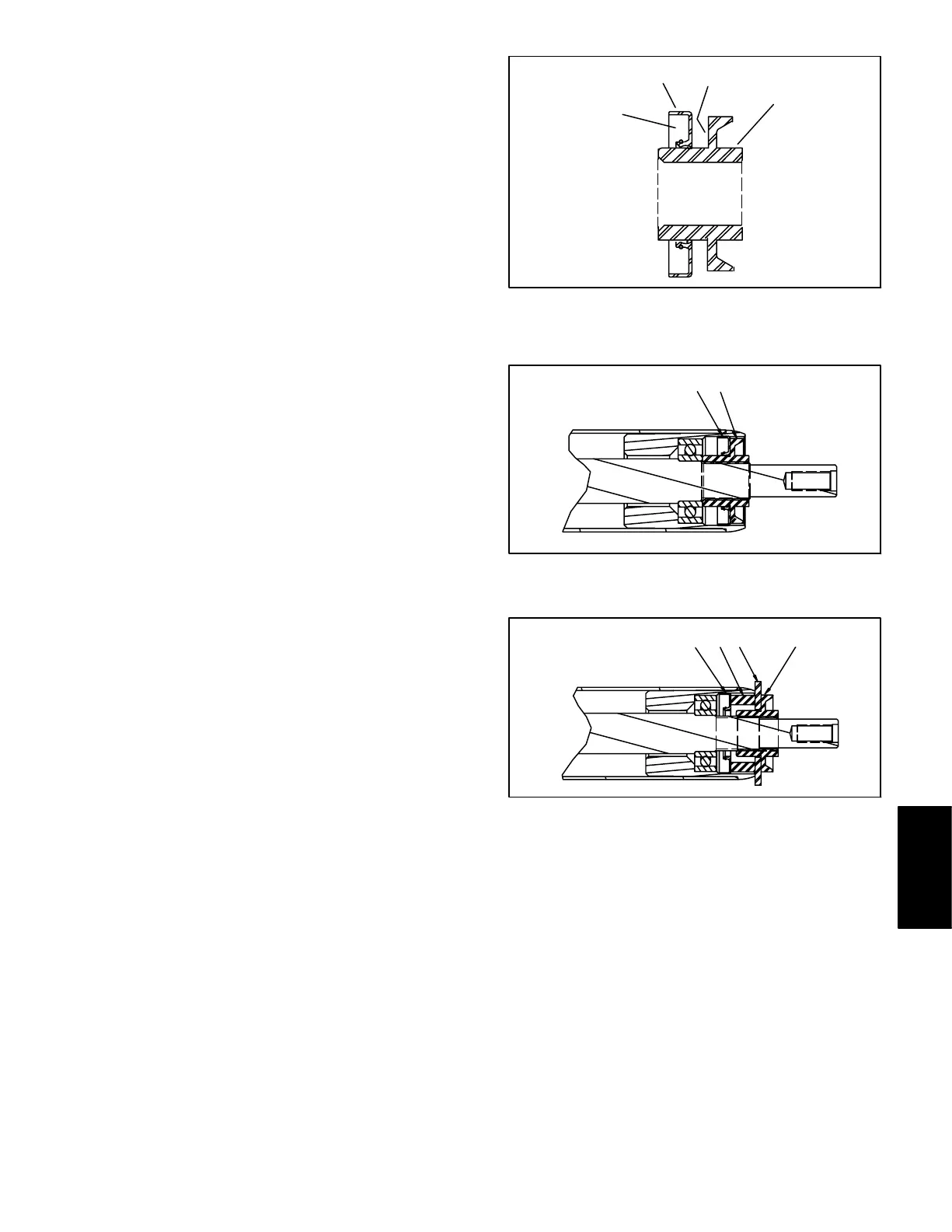

1. Bearing lock nut
2. Seal
3. Grease nut surface
4. Pack with grease
Figure 36
3
4
2
1
1. Bearing lock nut 2. Seal
Figure 37
2
1
1. Bearing lock nut
2. Yellow assembly washer
3. Assembly spacer
4. Seal
Figure 38
3
4
2
1
Cutting Unit
