Greensmaster Flex 21
Page 6 – 4
Chassis and Controls
Service and Repairs

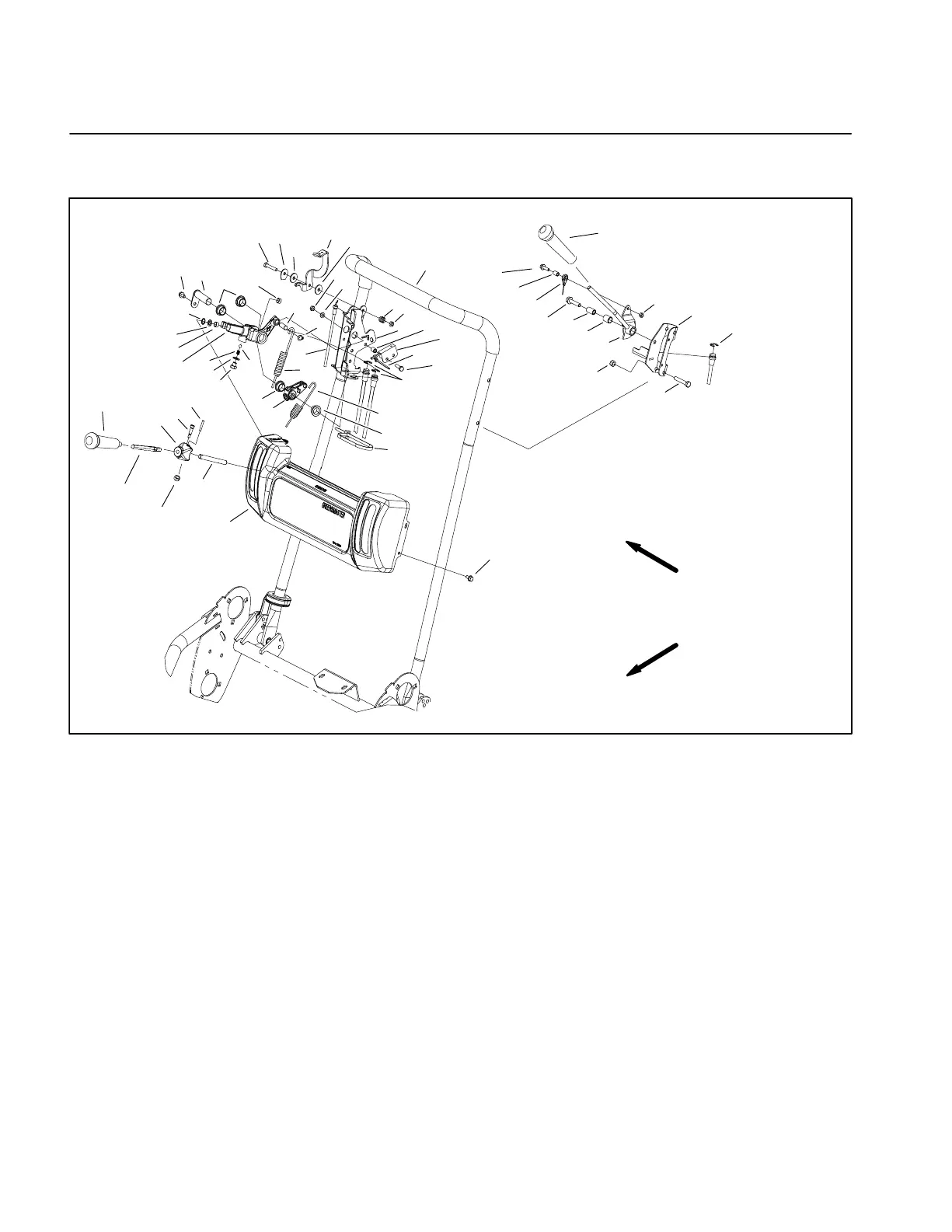

Handle Assembly
Figure 2
1. Handle
2. Brake lever
3. Brake bracket assembly
4. Console assembly
5. Retaining ring
6. Retaining ring
7. Retainer washer
8. Interlock switch (proximity)
9. Retaining washer
10. Traction cable
11. Lock nut
12. Pin
13. Handle hub mount
14. Traction/reel drive knob (black)
15. Socket head cap screw
16. Roll pin
17. Handle rod
18. Bushing
19. Reel lever
20. Reel clutch cable
21. Wiper
22. Control bracket
23. Reel lever pin
24. Friction washer
25. Dowel pin
26. Throttle cable
27. Cap screw
28. Cap screw
29. Throttle lever
30. Compression spring
31. Lock nut
32. Brake cable spacer
33. Cable tie
34. Brake cable
35. Cap screw
36. Brake knob (red)
37. Flange screw
38. Lock nut
39. Cap screw
40. Flange screw
41. Spacer
42. Washer head screw
43. Cable tie
44. Bushing
45. Bronze bushing
46. Flat washer (early models)
47. Detent ball
48. Detent spring
49. Flat washer
50. Traction control lever
FRONT
RIGHT
40
41
44
2
32
32
31
3
39
38
1
30
31
24
29
24
9
28
23
45
45
18
18
19
49
14
16
13
36
37
7
21
50
25
6
42
42
4
35
8
26
22
43
12
10
20
15
34
18
5
5
33
31
46
27
48
47
11
17
