Greensmaster Flex 21Traction and Reel Drive System (Rev. C) Page 4 – 24
Gearbox (Serial Number Below 240001001)

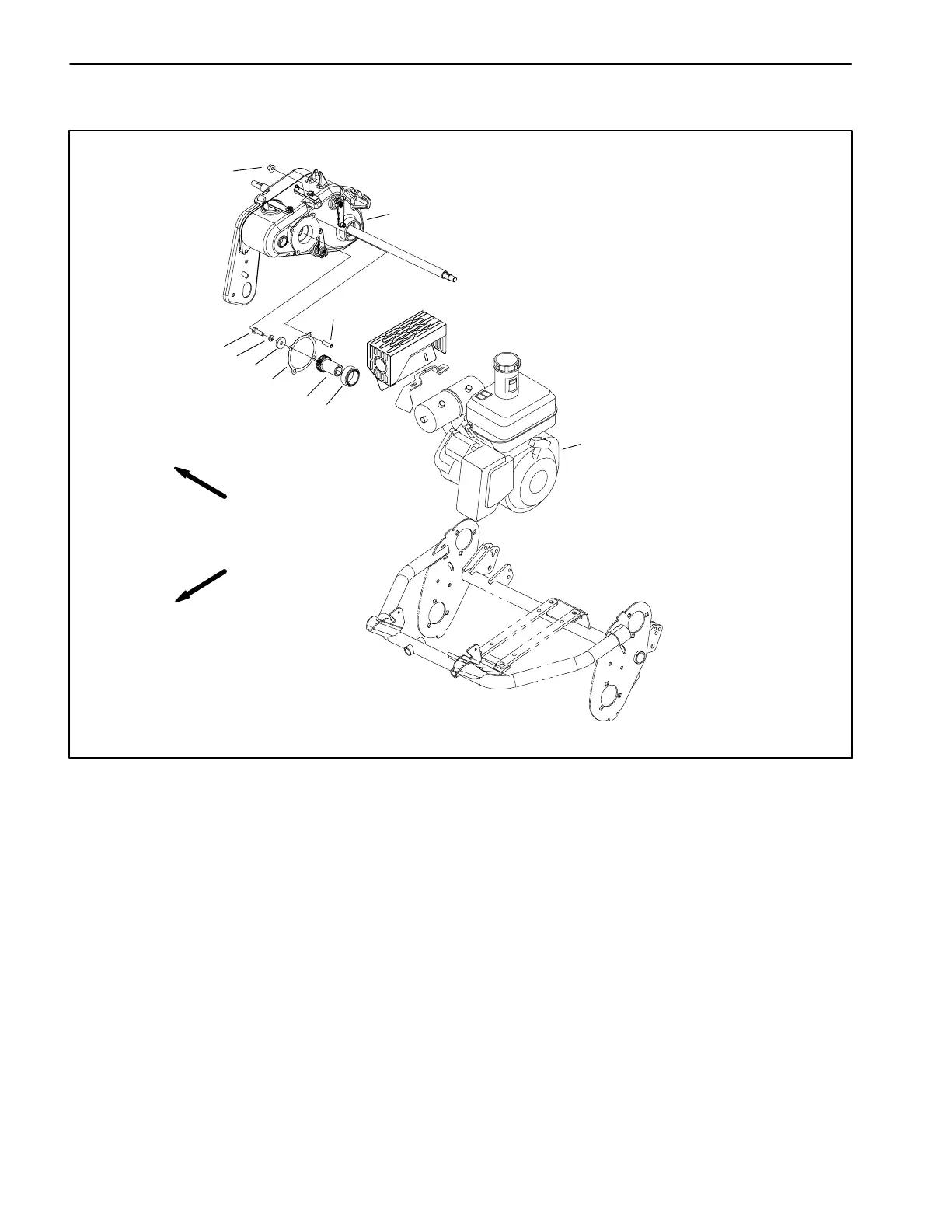

Figure 31
1. Gearbox assembly
2. Flange gasket
3. Engine gear
4. Engine adapter
5. Engine
6. Set screw
7. Cap screw
8. Lock washer
9. Washer
10. Flange nut
5
4
3
2
9
8
7
6
1
10
FRONT
RIGHT
Gearbox Removal
1. Park mower on a level surface. Make sure engine is
OFF. Remove high tension lead from the spark plug.
2. Drain oil from gearbox assembly (see Change Gear-
box Fluid in this section).
3. Remove traction control and reel control cables from
gearbox (see Control Cable Replacement in the Service
and Repairs section of Chapter 6 – Chassis and Con-
trols).
4. If installed, remove transport wheels (see Wheels in
the Service and Repairs section of Chapter 6 – Chassis
and Controls).
5. Remove traction drive belt covers and belts from
both sides of mower (see Traction Drive Belt Replace-
ment in this section).
6. Remove flange nut that secures traction drive pulley
(Fig. 32) on both sides of mower. Remove pulley wash-
er, pulley and woodruff key from both sides.
