Toro 04022 Service Manual

Greensmaster Flex 21 Groomer (Model 04201) (Rev. B)Page 8 – 13
Adjuster Arm Assembly

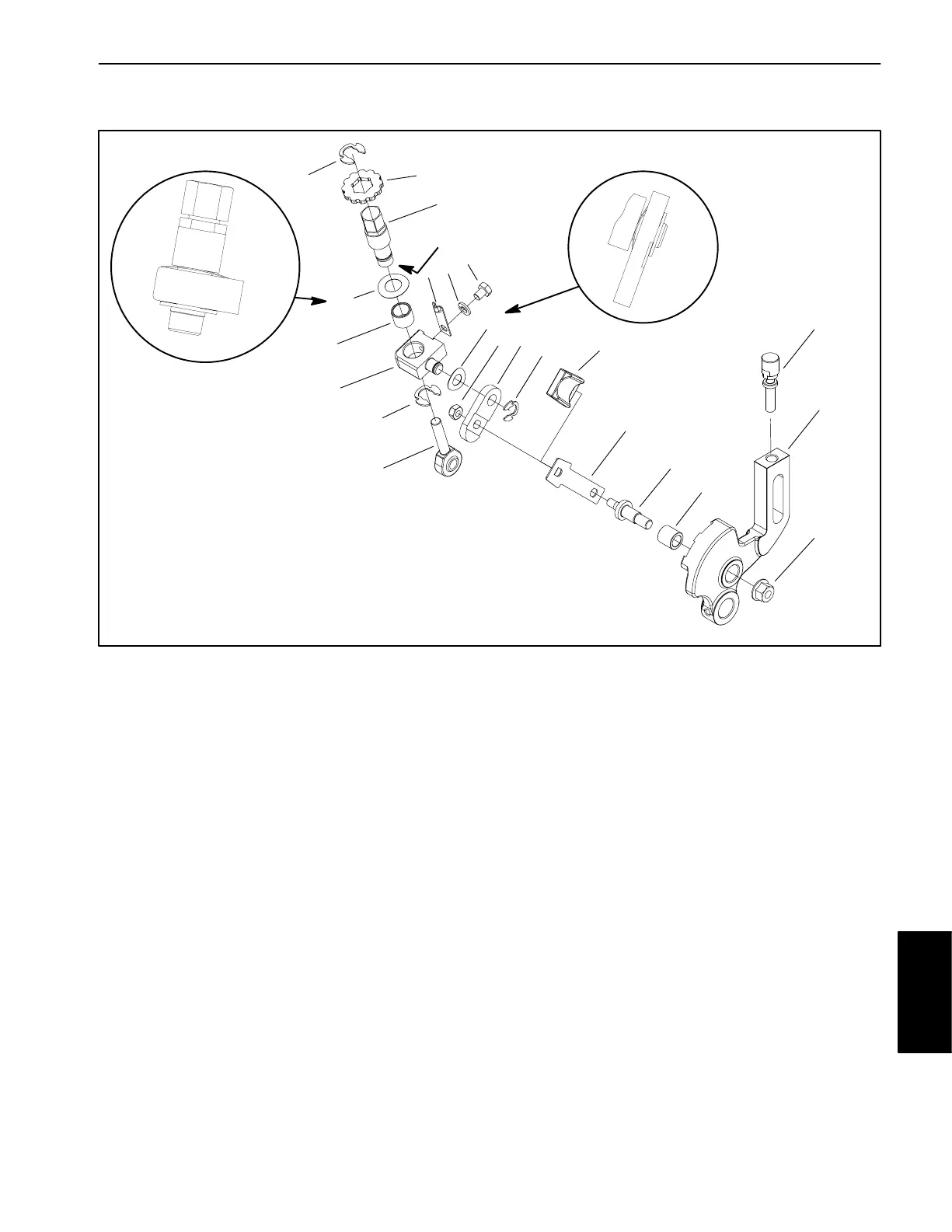

Figure 18
1. Adjuster arm (RH shown)
2. Block assembly
3. Spring washer
4. Cap screw
5. Engage plate
6. Detent spring
7. Lift cam
8. Lift pivot
9. Lift arm knob
10. Lift arm
11. Adjust shaft
12. Retaining ring
13. Flange nut
14. Lock nut
15. Lift spacer
16. Retaining ring
17. Spring washer
18. Groomer shaft end bearing
19. Bushing
20. Curved washer
21. Height–of–cut screw
13
3
5
14
11
2
18
20
6
4
16
7
12
9
10
8
17
1
15
19
16
21
Anti–seize lubricant
Disassembly
1. Remove adjuster arm from cutting unit (see Groomer
Reel Removal in this section).
2. Disassemble adjuster arm using Figure 18 as a
guide. Note: Right and left side adjuster arms are differ-
ent; other components in Figure 18 are the same on
both sides.
Assembly
1. Apply anti–seize lubricant to internal threads of ad-
just shaft.
2. Assemble adjuster arm using Figure 18 as a guide.
Note: Orientation of spring washer (17) and curved
washer (20) is important for correct operation. See in-
sets in Figure 18 for proper washer installation.
3. Install adjuster arm onto cutting unit (see Groomer
Reel Installation in this section).
4. Check height–of–cut and adjust as needed.
