Greensmaster Flex 21 Groomer (Model 04201) (Rev. B)Page 8 – 3
General Information
Transport Mode
IMPORTANT: Before changing groomer position,
make certain that the reel drive lever is in the disen-
gaged position and that the cutting reel is not rotat-
ing.
IMPORTANT: When transporting the mower, make
sure the cutting unit is disengaged and the groomer
reel is raised to its transport position.
1. To raise the groomer reel to the transport position,
push down on both quick–up levers.
2. To position the groomer reel for operation (groom-
ing), pull up on both quick–up levers.

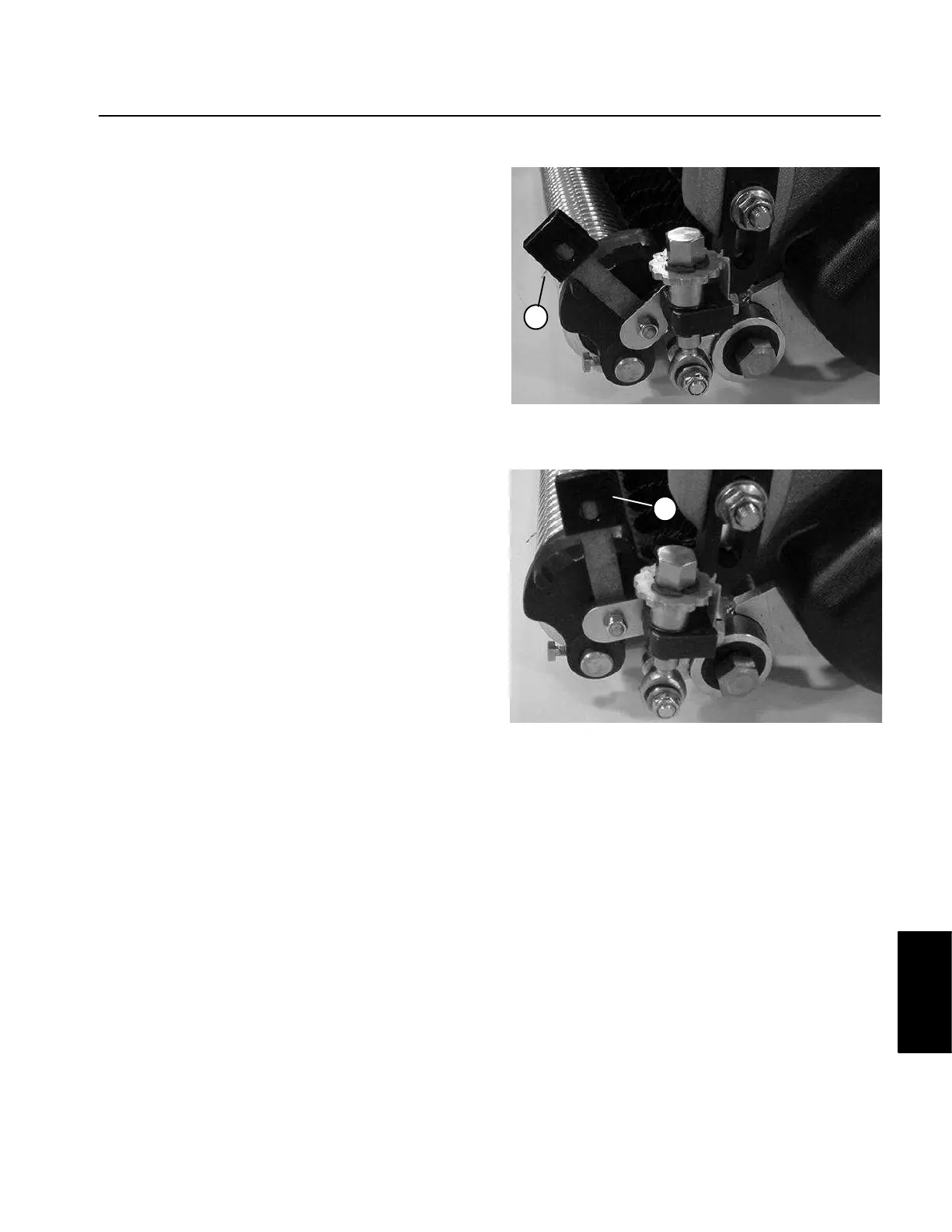

1. Raised position (transport)
Figure 1
1
1. Lowered position (grooming)
Figure 2
1
Groomer
(Model 04201)
