Greensmaster Flex 21Groomer (Model 04204) (Rev. B) Page 9 – 18
Groomer Brush

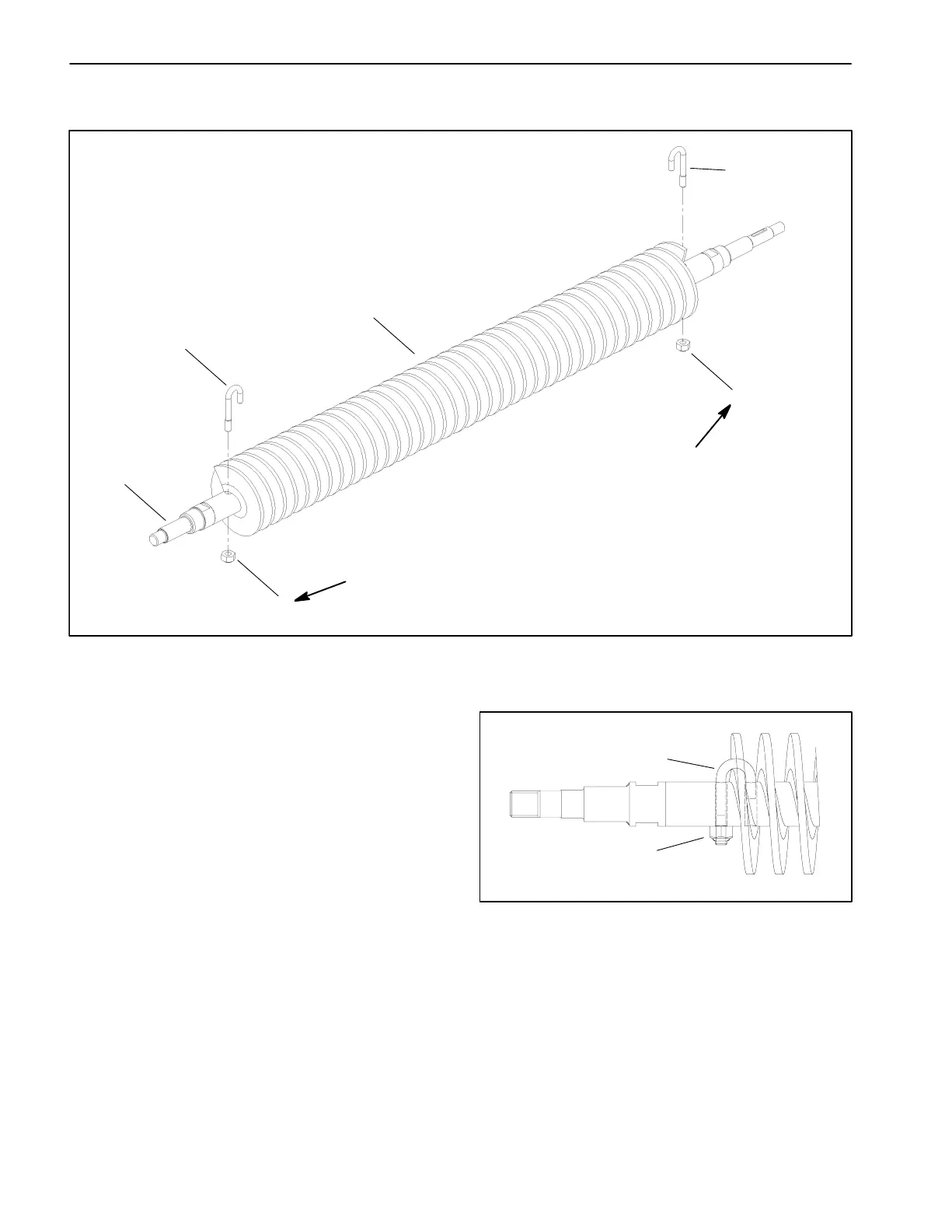

Figure 21
1. Groomer brush shaft
2. Lock nut
3. J–bolt 4. Groomer brush
3
1
2
4
2
3
20 to 25 in–lb
(2.3 to 2.8 N–m)
20 to 25 in–lb
(2.3 to 2.8 N–m)
The groomer brush attaches to the groomer drive in
place of the groomer reel. Removal and installation of
the groomer brush uses the same procedure as removal
and installation of the groomer reel (see Groomer Reel
in this section).
To remove the groomer brush from the shaft, remove the
lock nut and J–bolt from both ends of the brush and slide
the brush from the shaft. When assembling the brush to
the shaft, secure the assembly with J–bolts and lock
nuts. Make sure that the J–bolts are installed with the
threaded portion on the outside of the brush (Fig. 22).
Torque lock nuts from 20 to 25 in–lb (2.3 to 2.8 N–m).
1. J–bolt 2. Lock nut
Figure 22
2
1
