Greensmaster Flex 21 Groomer (Model 04201) (Rev. B)Page 8 – 7
Service and Repairs

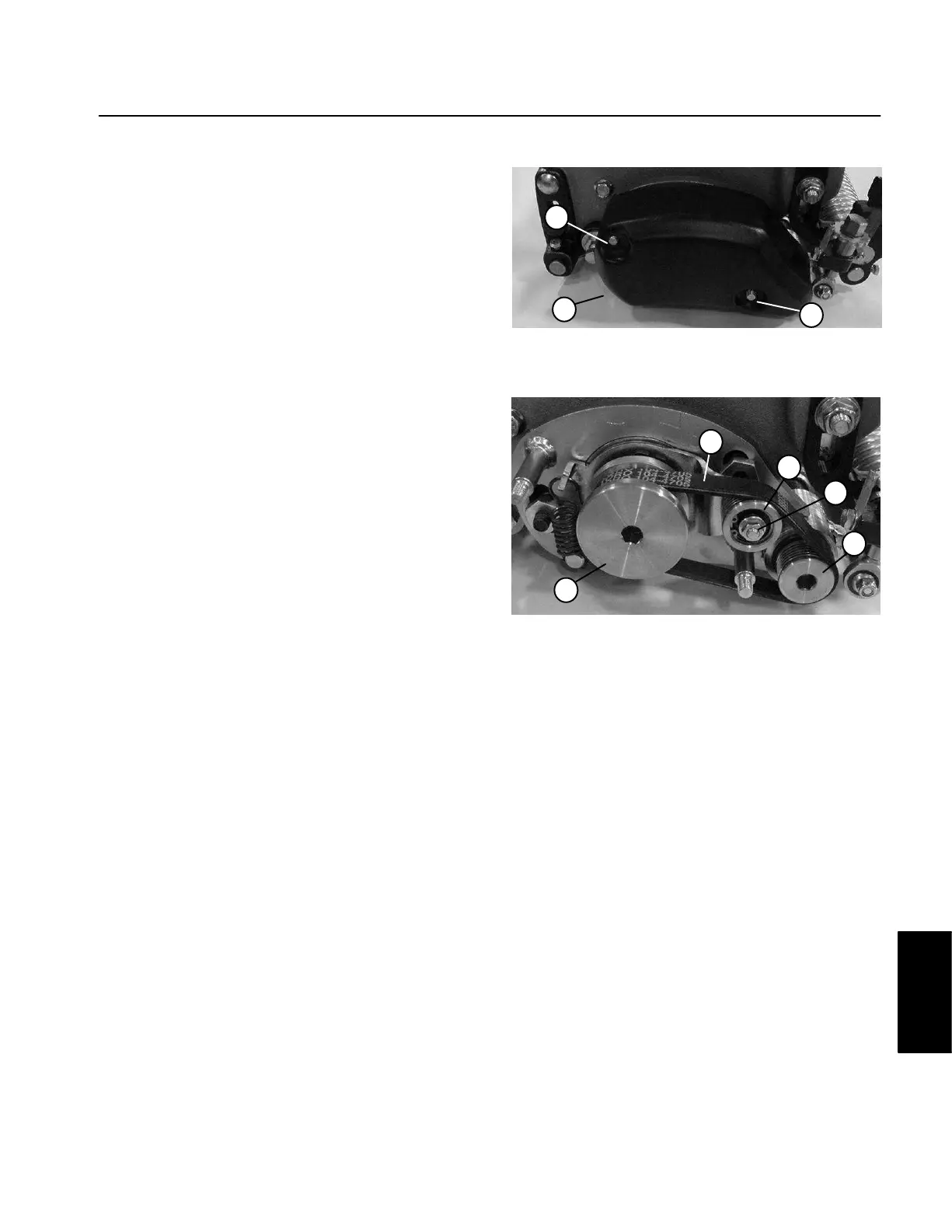

Drive Belt Replacement
1. Park mower on a level surface. Make sure engine is
OFF. Remove high tension lead from the spark plug.
2. Remove two lock nuts that secure groomer belt cov-
er, then remove cover (Fig. 4).
3. Pivot idler pulley by placing a 10mm wrench on
pulley nut and rotating clockwise to relax belt tension.
Slip groomer drive belt off pulleys. Release idler (Fig. 5).
4. Install new drive belt to drive pulley, idler pulley, and
driven pulley observing correct belt routing (Fig. 5).
5. Secure belt cover to housing with two lock nuts.
1. Groomer belt cover 2. Lock nut
Figure 4
1
2
2
1. Drive pulley
2. Idler pulley
3. Idler pulley nut
4. Driven pulley
5. Groomer drive belt
Figure 5
1
4
2
3
5
Groomer
(Model 04201)
