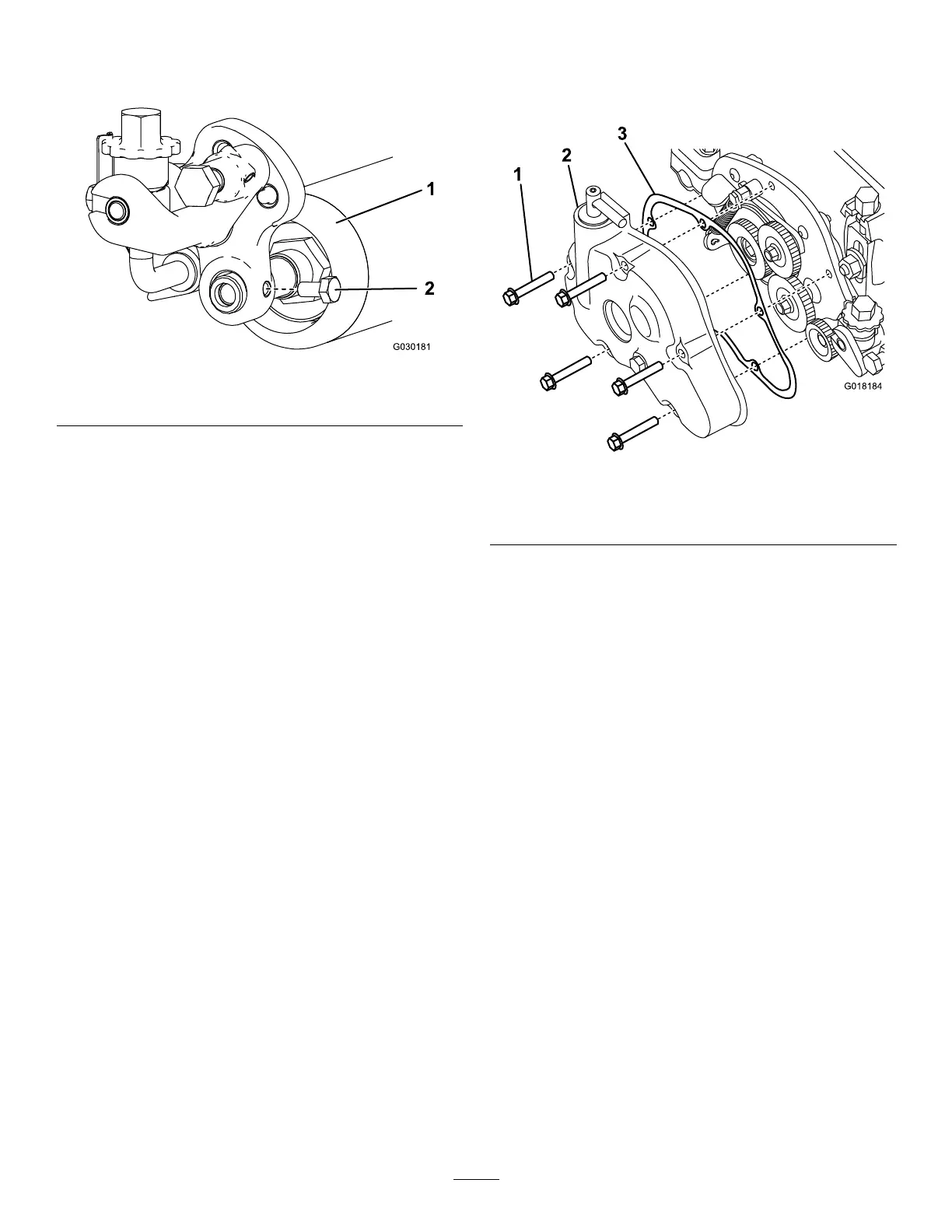

6.Inserttherollershaftintotherightadjusterarm
andlooselysecureitwithashortbolt(Figure
14).
g030181
Figure14
1.Roller
2.Shortbolt
7.Installthebushingintheholeintheleft
groomer-driveassembly(Figure13)
8.Threadtheheight-of-cutadjustingscrewintothe
topoftheleftadjuster-armassembly(Figure13).
9.Inserttherollershaftintotheleftadjusterarm.
Note:Donottightentheboltatthistime.
10.Installthespringwasherontotherodendofthe
leftheight-of-cutarmassembly(Figure13)
11.Installtheleftadjuster-armassemblytothe
cuttingunitsideplateusingaplowbolt,nut,and
newwasher(Figure13).
Note:Makesurethattherodendslidesinto
thebushingintheholeinthegroomerdrive
assembly.
12.Securetheadjuster-armassemblyrodend
tothegroomerdriveassemblywithalocknut
(Figure13).
13.Fillthegearboxcoverwithapproximately0.15
L(5oz)ofMobilXHP-221orequivalentand
mountittothegroomerhousingassemblywith
thegasketinbetweenusing5bolts(Figure15).
G018184
1
2
3
g018184
Figure15
1.Bolt
3.Gasket
2.Gear-boxcover
14.Centertherollerbetweentheadjusterarmsand
tightenthemountingbolts(Figure14).
15.IfyouareinstallingthekitonaTriFlex3300or
3400machine,proceedtostep16.Ifyouare
installingthekitonawalk-behindunit,perform
thefollowingsteps:
A.Installthebelt-driveassemblytothecutting
unitusingthe3boltsthatyouremoved
previously(Figure6).
B.Installthepulleytothereelshaftusingthe
2setscrewsthatyouremovedpreviously
(Figure5).
C.Installthebeltandtightenthebelt-tensioning
nut(Figure4).
D.Installthebeltcoverandtightenthecaptive
bolt(Figure4).
16.IfyouareinstallingthekitonaTriFlex3300or
3400machine,installthemotormounttothe
leftendofthecuttingunitusingthe2boltsthat
youremovedpreviously(Figure3).
7
