ServiceandRepairs
EngineTopEndAssembly1

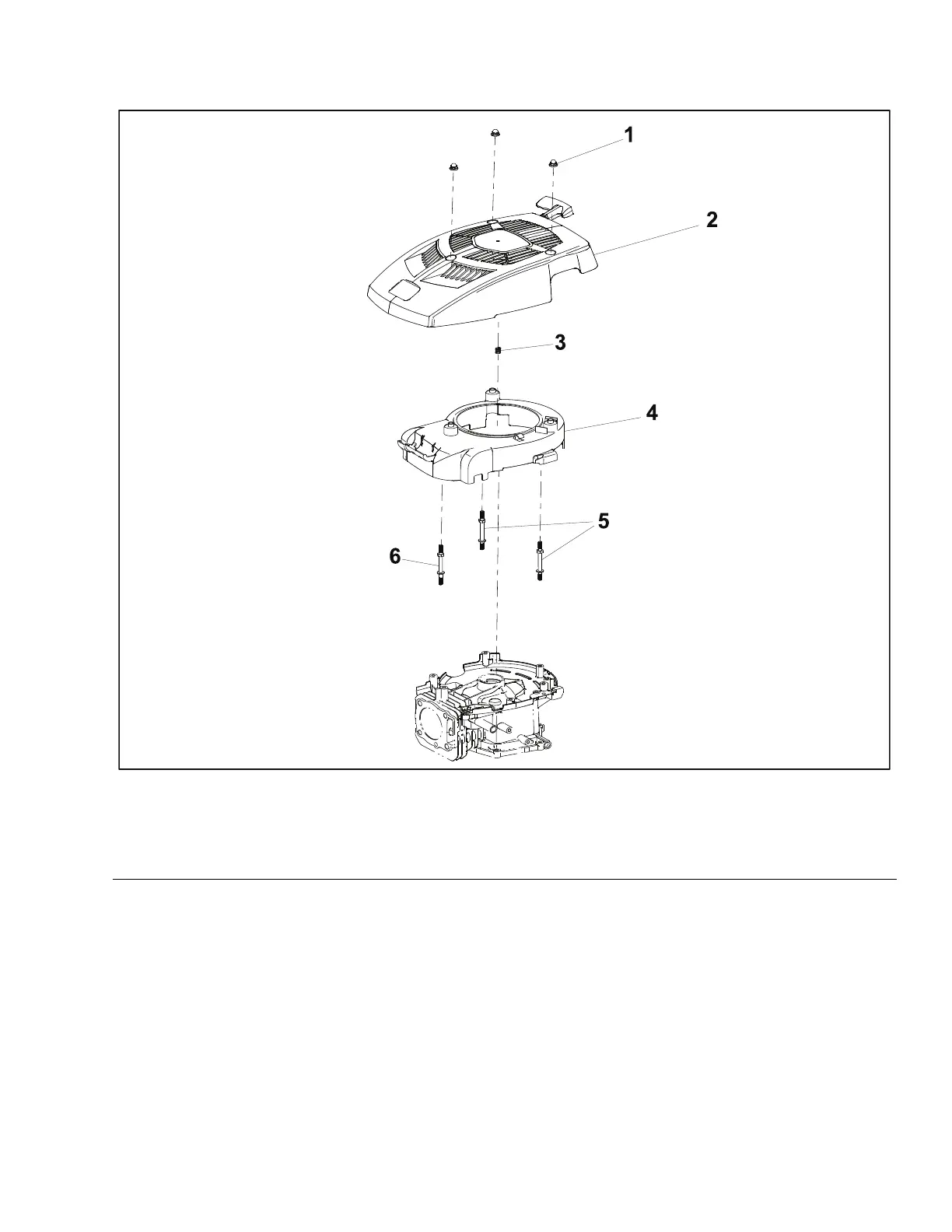

Figure3
1.AcornNut
4.FanShroud
2.RecoilShroudAsm.5.ShroudStud3.42inch(86.9mm)
3.RecoilCompressionSpring6.ShroudStud3.31inch(84.0mm)
1P65F-2ServiceManual
Page4–3
EngineTopEnd:ServiceandRepairs
3429-270RevA
