CarburetorInstallation(continued)

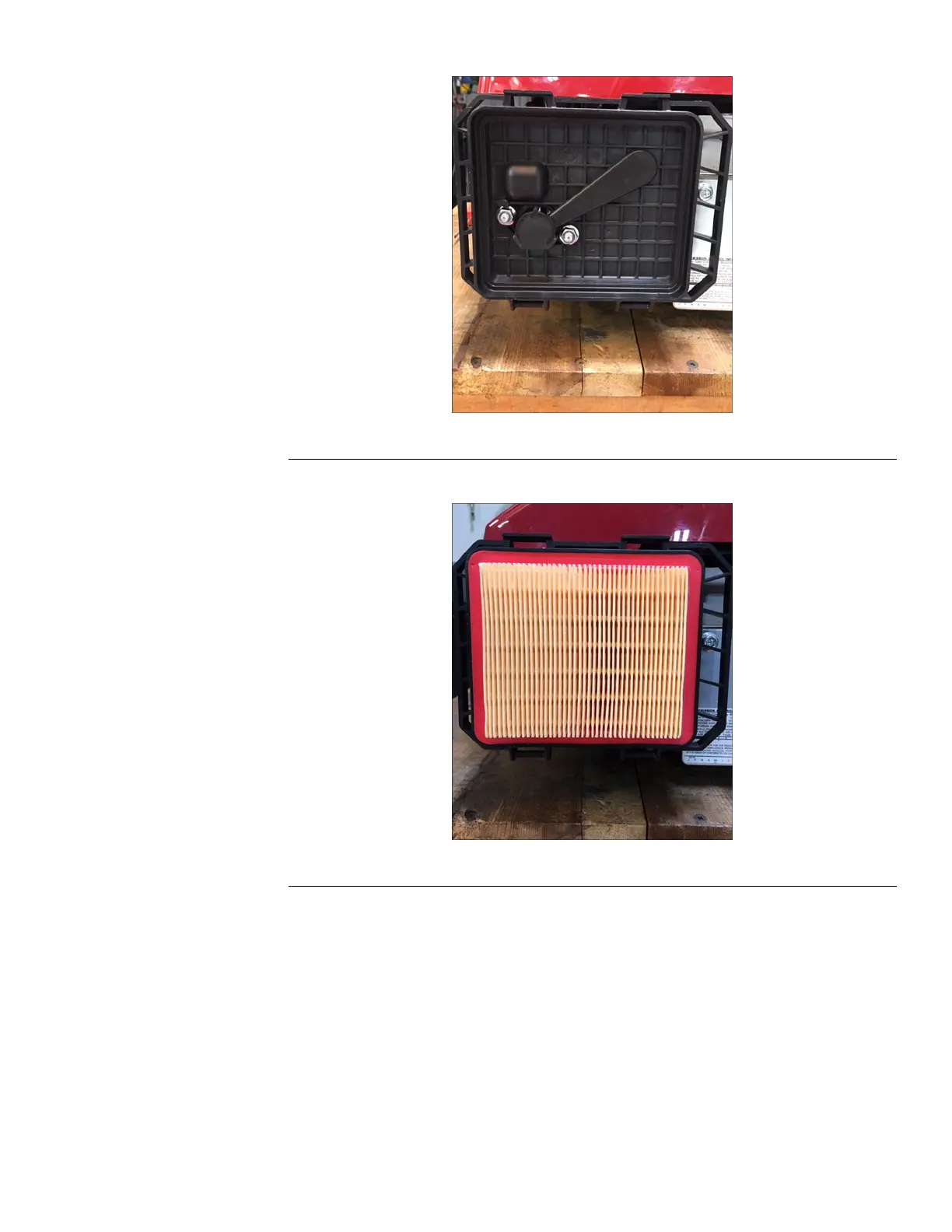

Figure95
9.Installtheairlterintotheairlterhousing.
Figure96
10.Installthecovertotheairlterhousingassembly.
11.Hingetheairltercoverupwardandlockintoplace.
AutoChokeSystem/ThermalControlReplacement
AutoChokeSystem/ThermalControlRemoval
1.Removethe3(10mm)acornnutssecuringtherecoilassemblytothetopof
theengine.Removetherecoilassembly.
1P65F-2ServiceManual
Page6–25
FuelSystem:ServiceandRepairs
3429-270RevA
