AutoChokeSystem/ThermalControlRemoval(continued)

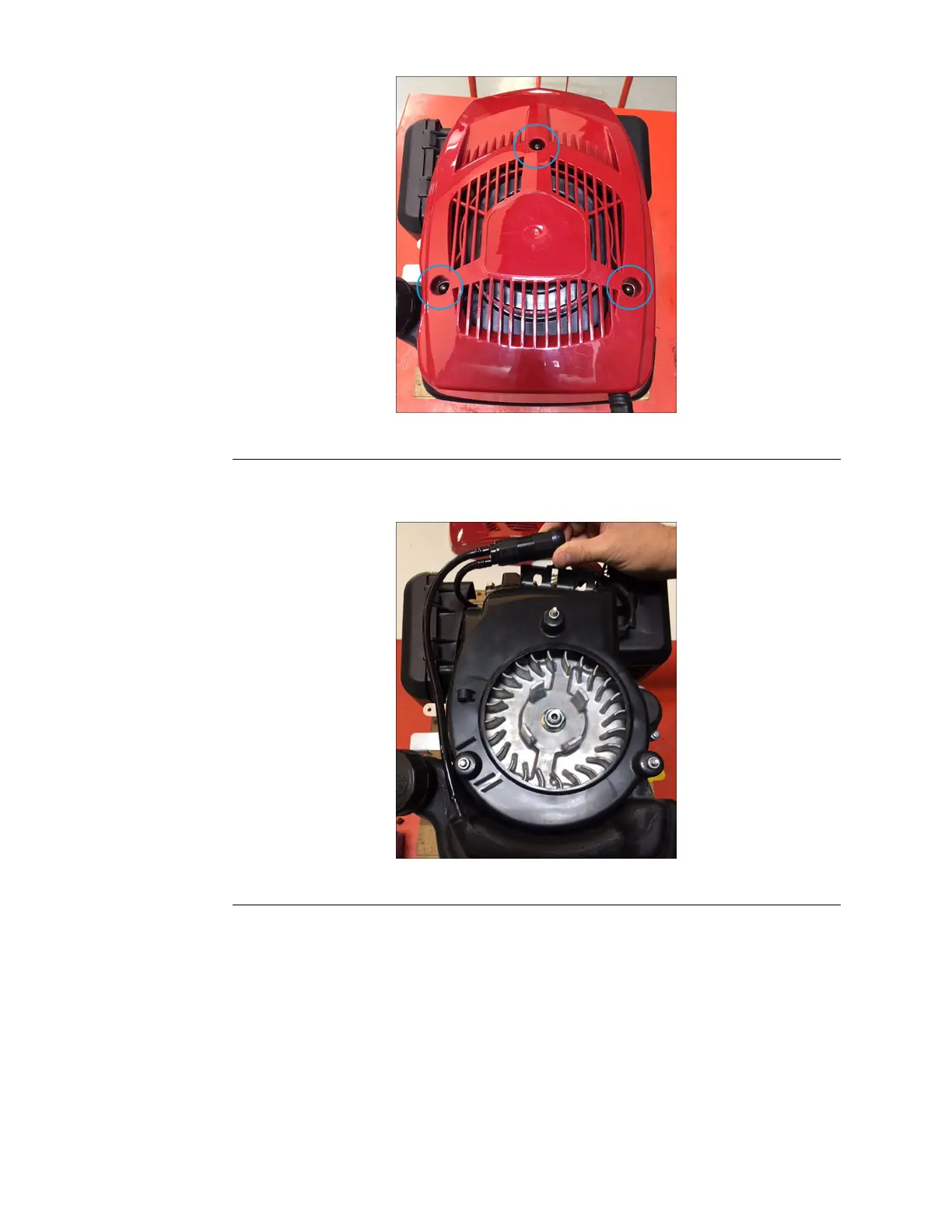

Figure97
2.Removethefueltankventhosefromthehoseretainerontheengineshroud.
Movethecarboncanistertothesideoftheengine.
Figure98
3.Removetheshroudbyliftingawayfromtheengine.
4.Removethe2(10mm)nutssecuringmufertothecylinderhead.
FuelSystem:ServiceandRepairs
Page6–26
1P65F-2ServiceManual
3429-270RevA
