Toro 1P65F-2 - Carburetor Replacement and Service

FuelFilterandHosesInstallation(continued)

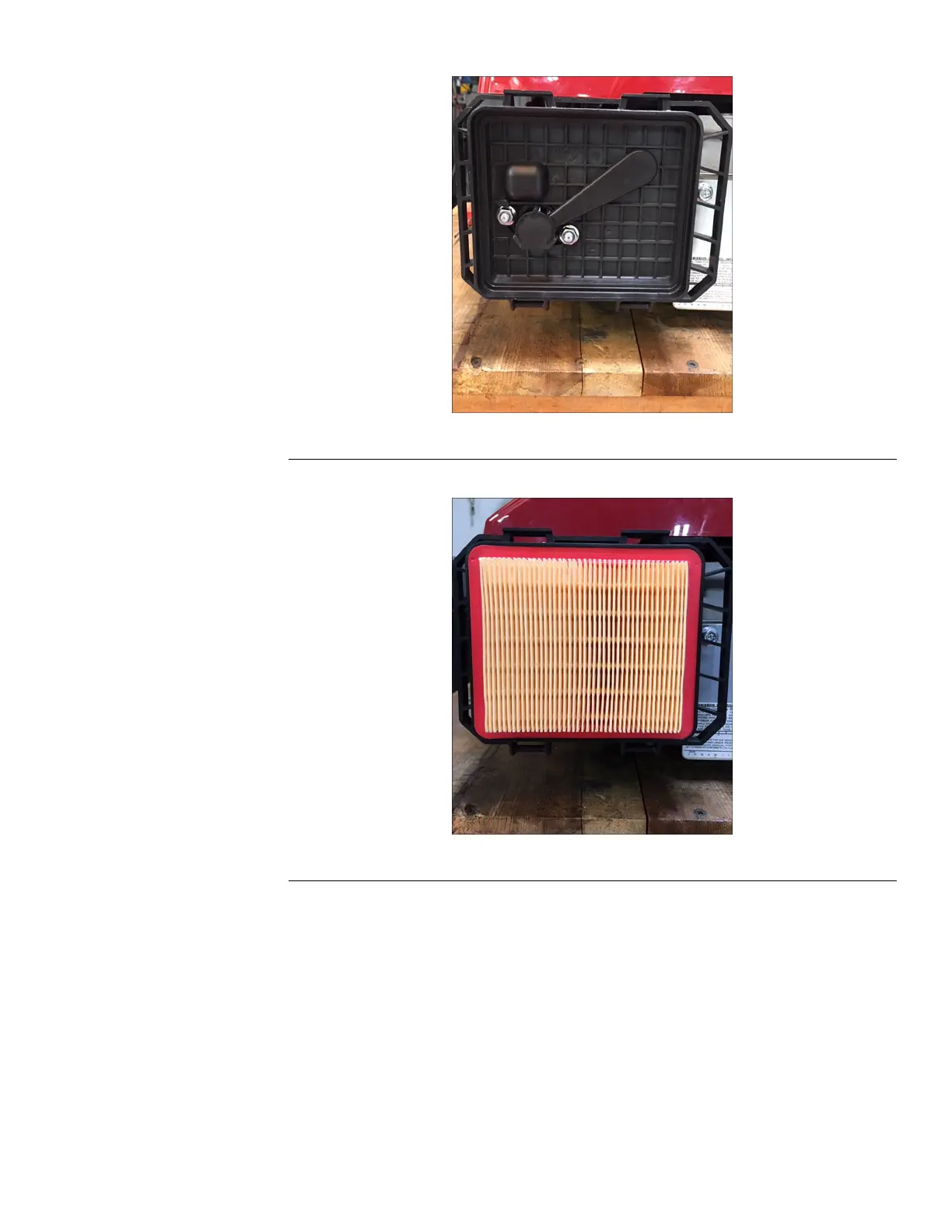

Figure71
6.Installtheairlterintotheairlterhousing.
Figure72
7.Installthecovertotheairlterhousingassembly.
8.Hingetheairltercoverupwardandlockintoplace.
CarburetorReplacement
CarburetorRemoval
1.Pushdownonthe2airltercoverlatchtabs.
2.Hingetheairltercoverdownward.Removethecoverfromtheairlter
housingassembly.
3.Removetheairlterfromtheairlterhousing.
4.Removethe2(10mm)nutssecuringtheairlterhousingtotheengine.
1P65F-2ServiceManual
Page6–13
FuelSystem:ServiceandRepairs
3429-270RevA
