FuelFilterandHosesInstallation(continued)

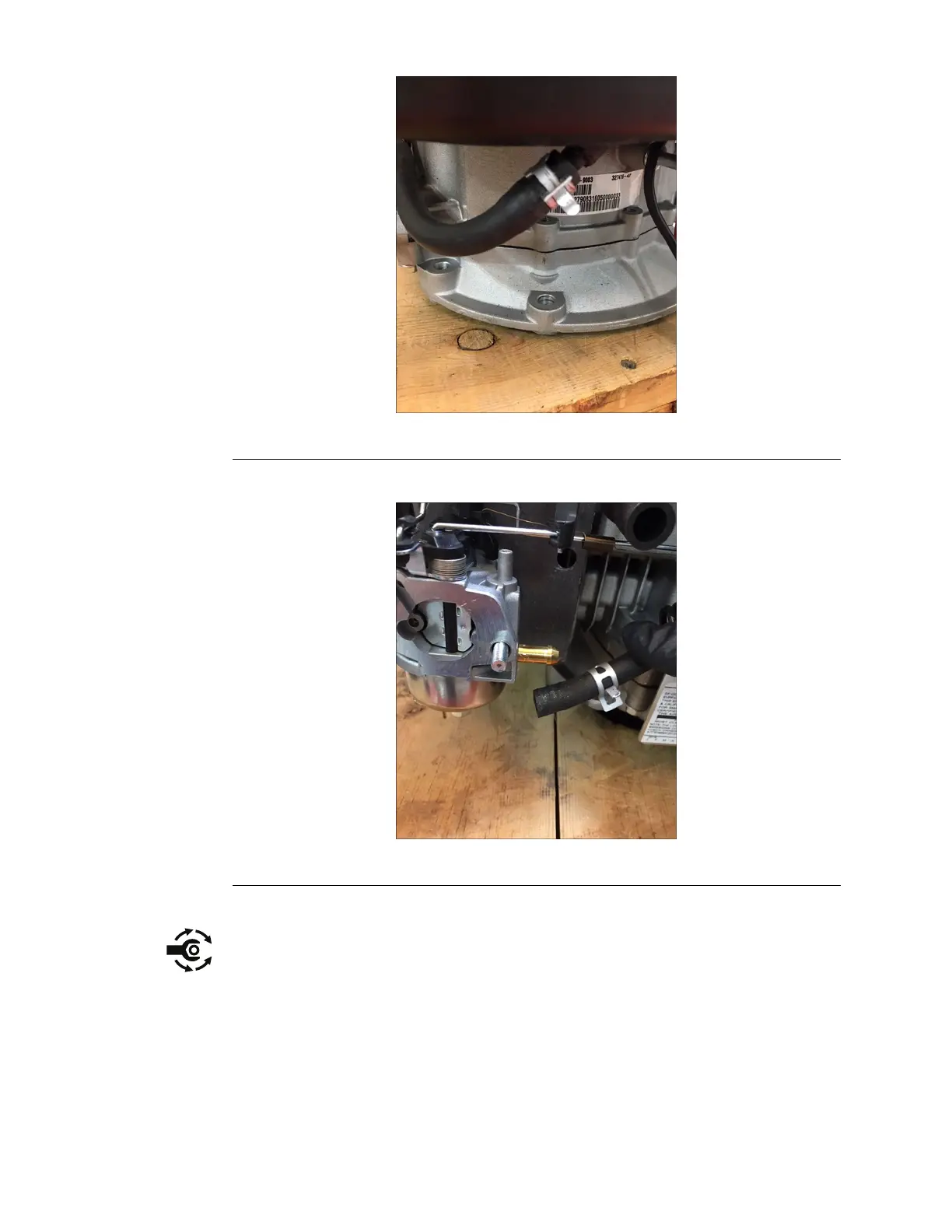

Figure69
3.Installthefuelhosetothecarburetor.Securewiththefuelhoseclamp.
Figure70
4.Installtheairlterhousingtotheengine.
5.Installtheairlterhousingtotheengine.Securewith2(10mm)nutssecuring
theairlterhousingtotheengine.Torquenutsto52–87in-lbs.(6–10Nm).
FuelSystem:ServiceandRepairs
Page6–12
1P65F-2ServiceManual
3429-270RevA
