AirFilterInspection(continued)

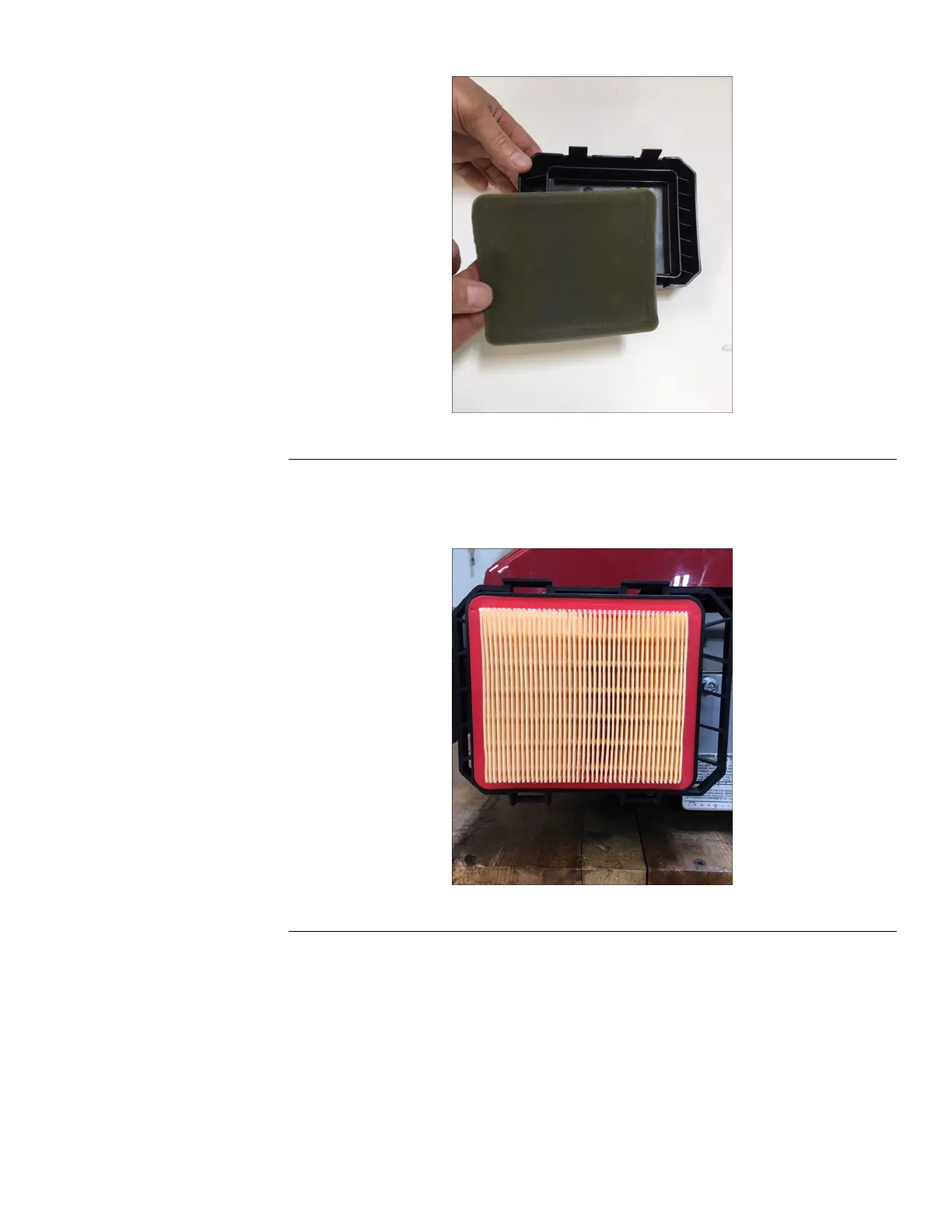

Figure46
AirFilterInstallation
1.Installtheairlterintotheairlterhousing.
Figure47
2.Installthecovertotheairlterhousingassembly.
3.Hingetheairltercoverupwardandlockintoplace.
AirBoxReplacement
AirBoxRemoval
1.Pushdownonthe2airltercoverlatchtabs.
1P65F-2ServiceManual
Page5–5
AirIntakeSystem:ServiceandRepairs
3429-270RevA
