CarburetorAssembly(continued)

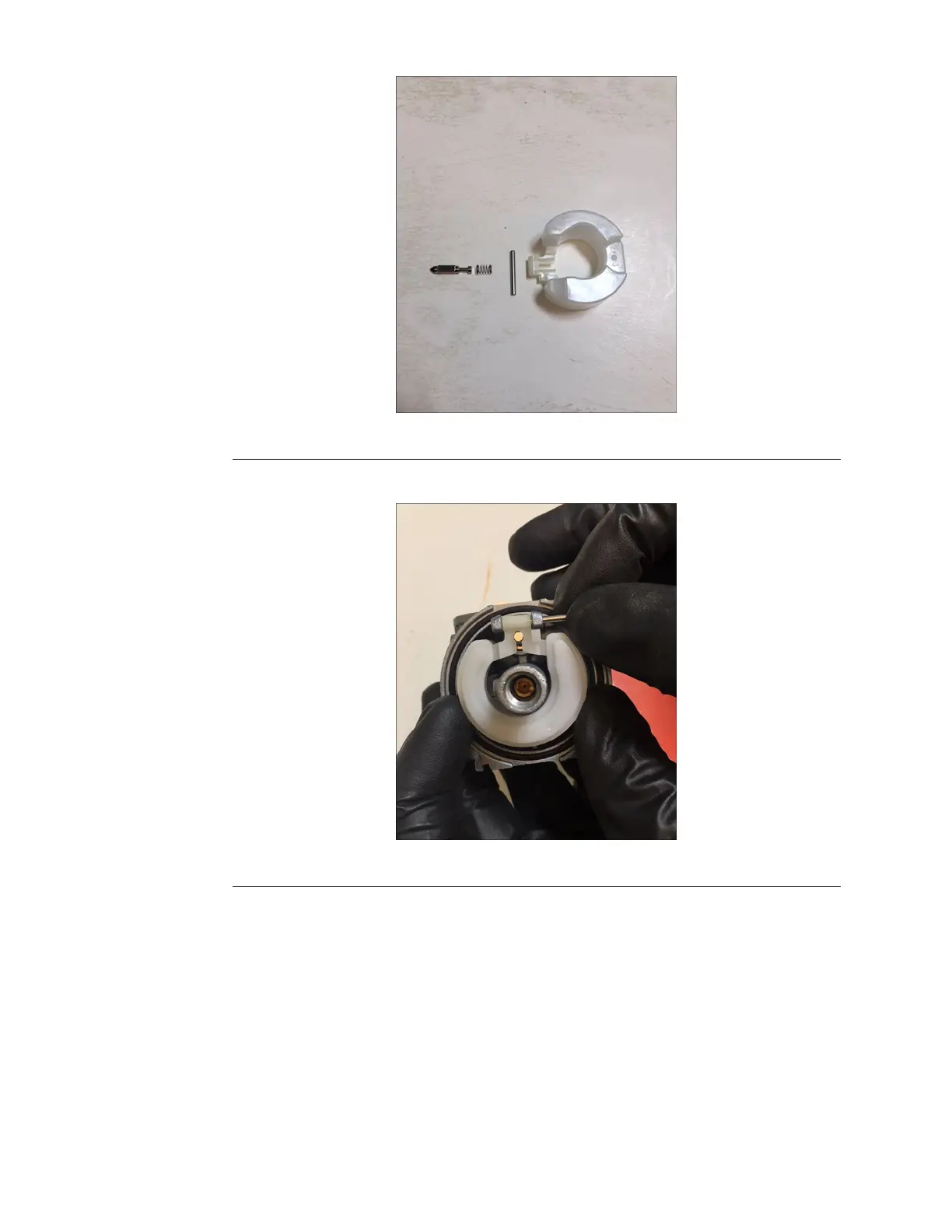

Figure85

3.Installtheoatpinthroughthecarburetorbodyandoat.

Figure86

4.Installtheoatbowlontothecarburetorbody.

FuelSystem:ServiceandRepairs

Page6–20

1P65F-2ServiceManual
