AWDFrontTransmissionRemoval(continued)
g359933

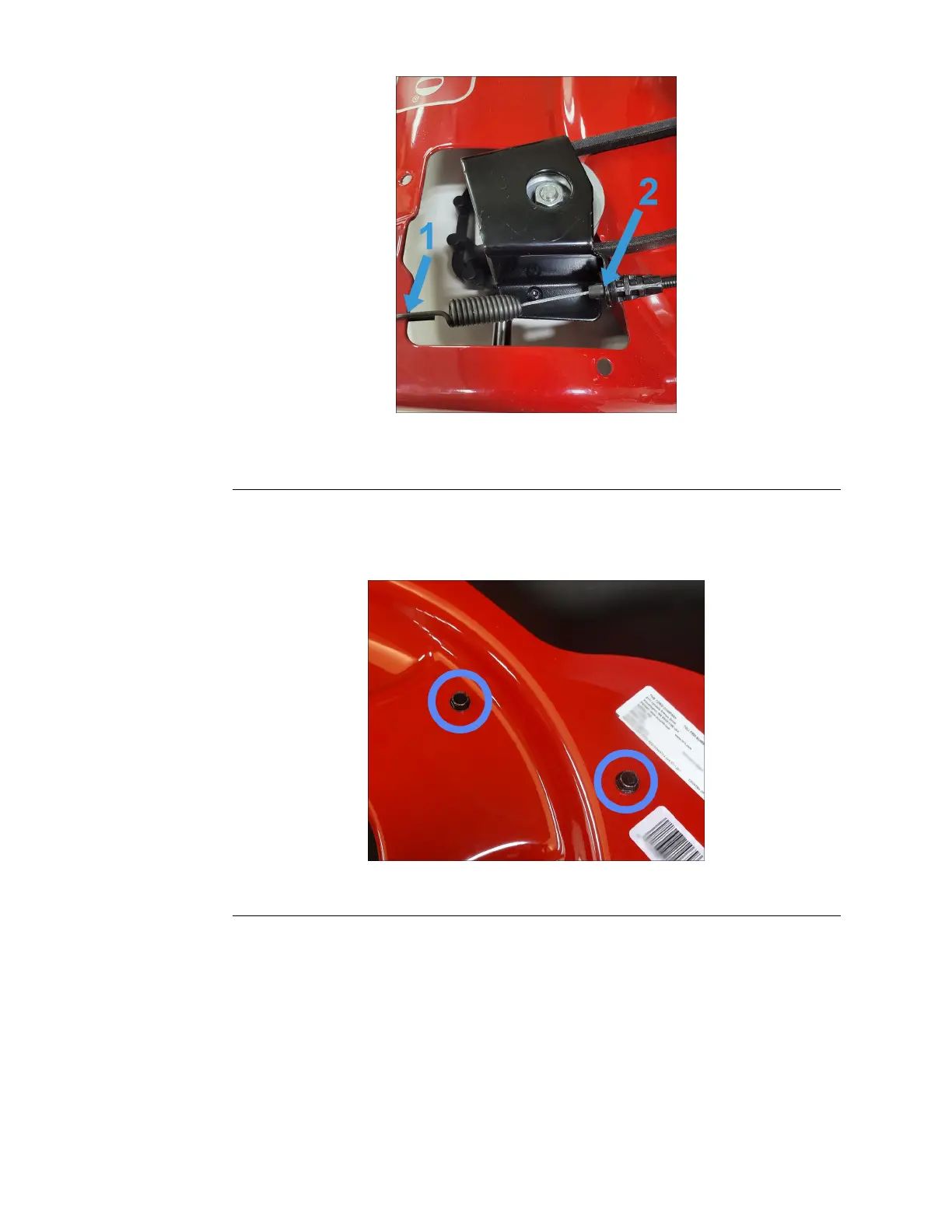

Figure147
1.CableReturnSpring2.FrontTractionCableAnchor
9.Removethebladethefromtheenginecrank.RefertotheproductOperator’s
Manualforthebladeremovalprocedures.
10.Removethe2(1/4–10inch)screwssecuringthebeltguideguardtothedeck.
g352577
Figure148
11.Removethebeltguideguardfromthedecktogainaccesstotherear
transmission.
12.UsingaR2squarebit,removethe3(#10/14)screwssecuringthe
transmissionbrackettothetransmission.
