ElectricStarterRemoval(ElectricStartModelsOnly)(continued)

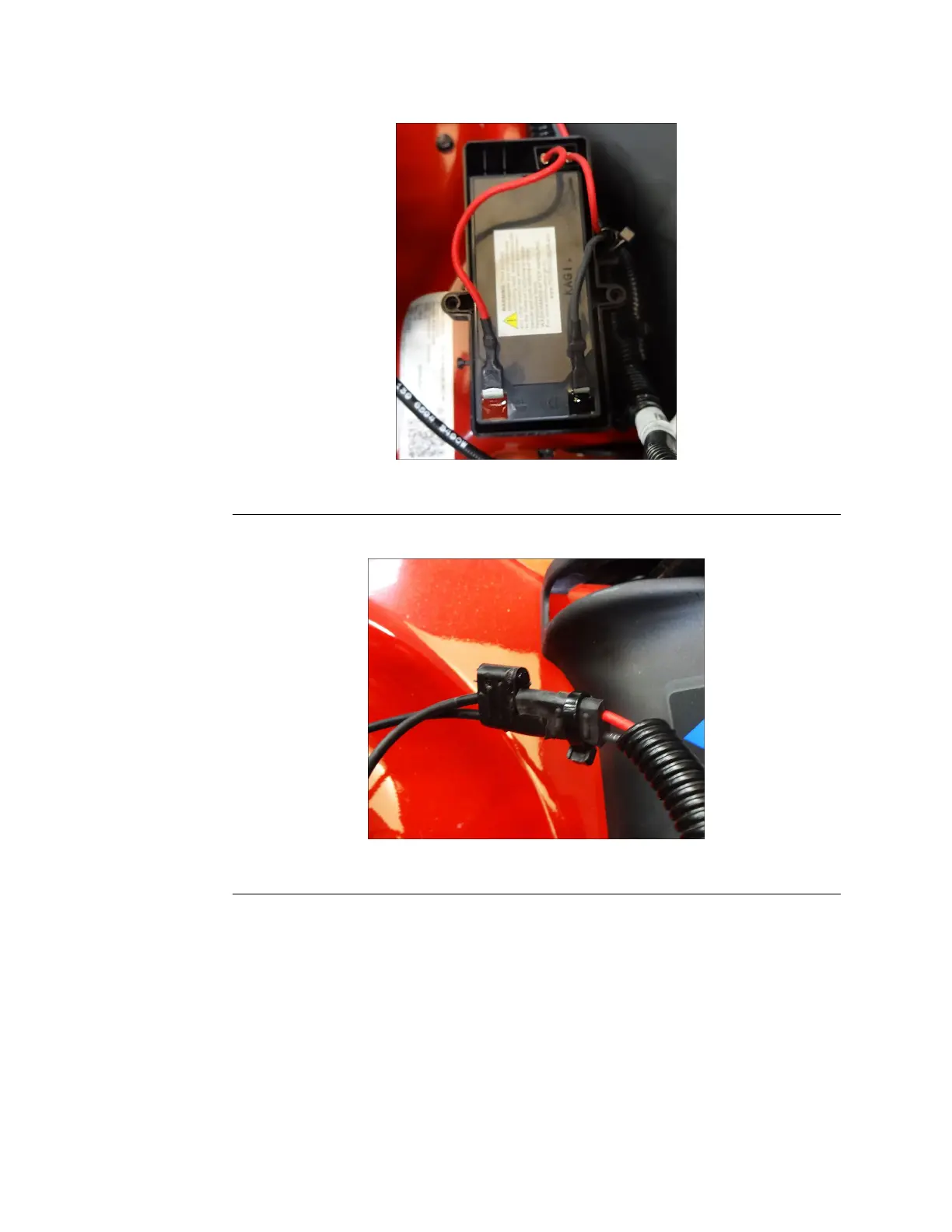

6.Removethefoampadanddisconnectthepositiveandnegativebattery
terminals
g353637
Figure158
7.Disconnecttheelectricstarterharnessfromtheengineharness.
g353638
Figure159
ElectricStarterDisassembly(ModelsEquippedwithElectricStartOnly)
1.Removetheelectricstarterfromtheunit.ElectricStarterRemoval(Electric
StartModelsOnly)(page8–5)
2.Pullandremovetheswitchbuttonfromtheelectricstarterassembly.
Electrical:ServiceandRepairs
Page8–6
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
