ElectricStarterDisassembly(ModelsEquippedwithElectricStartOnly)(continued)

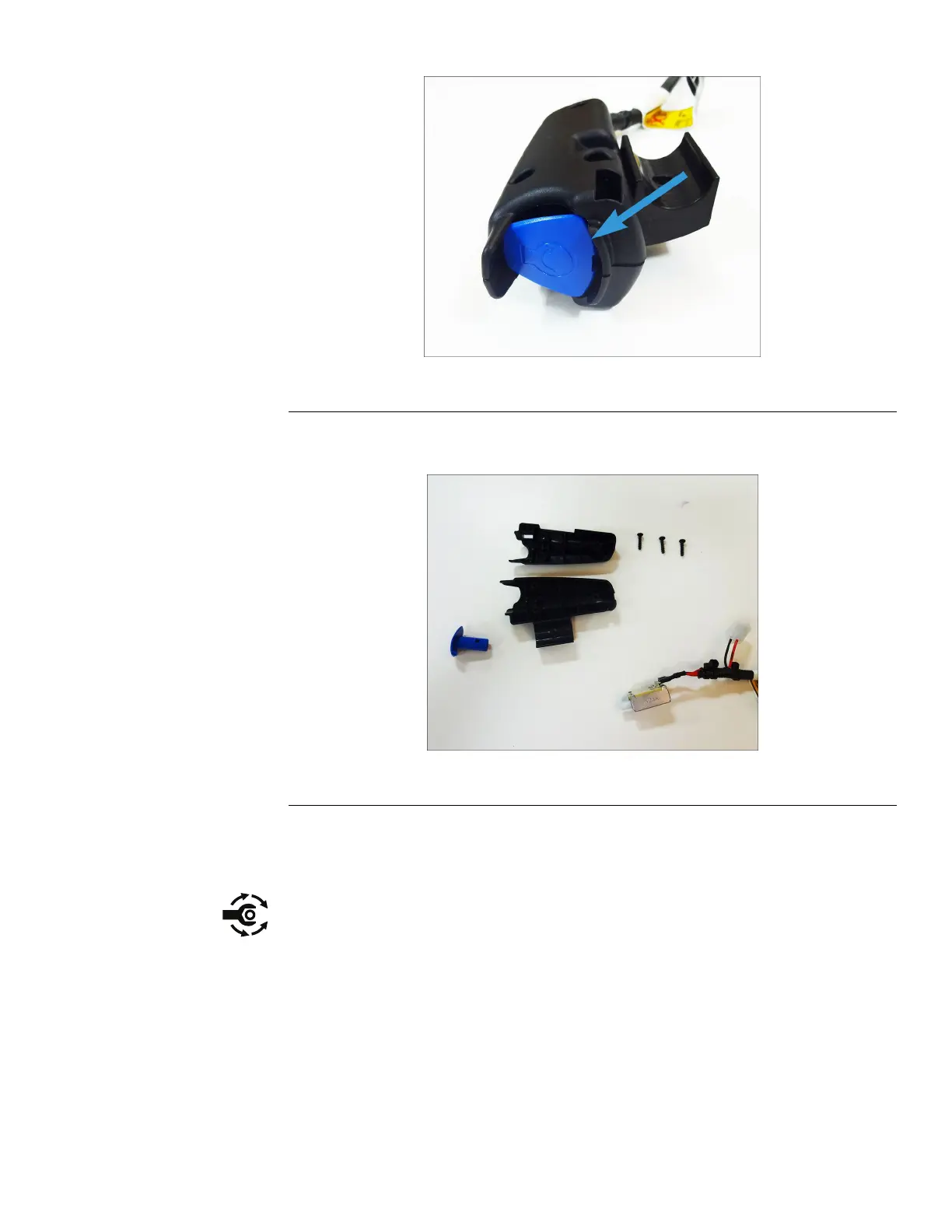

g354406
Figure160
3.Removethe3(M4.2x2.0)screwssecuringtheLHandRHswitchhousings.
RemovetheLHandRHswitchhousingsfromtheelectricstarterharness.
g354407
Figure161
ElectricStarterAssembly(ElectricStartModelsOnly)
1.InstalltheLHandRHswitchhousingstotheelectricstarterharness.
2.SecuretheLHandRHswitchhousingswith3(M4.2x2.0)screws.Torque
thescrewsto2.26±0.34N•m(20±3in-lbs).
3.Installswitchbuttonontotheelectricstarterassembly.
