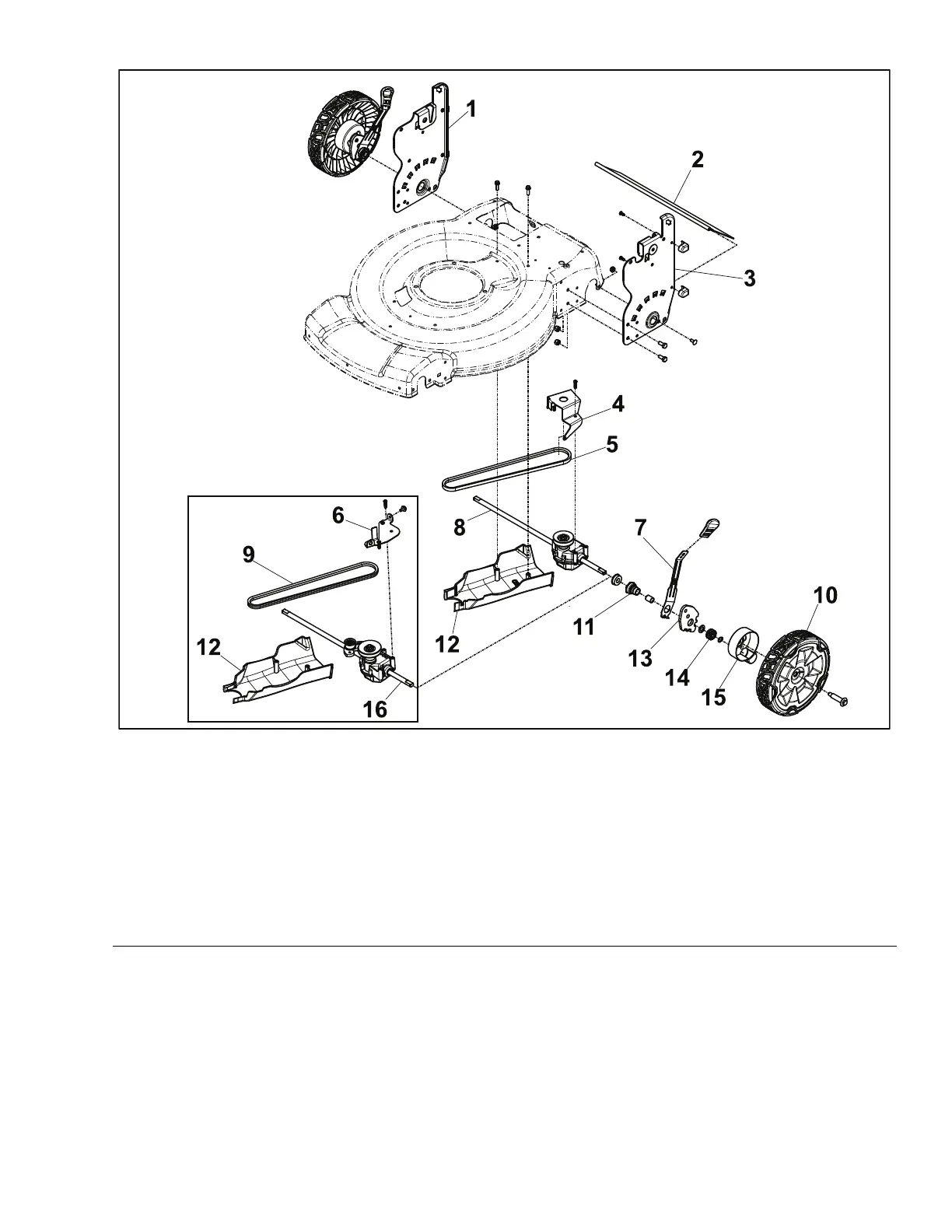

DriveSystemAssembly3
g352312
Figure128
1.RHHeight—of—CutPlate
9.AWDV-Belt
2.TrailingShield
10.RearWheel
3.LHHeight—of—CutPlate
11.BushingRetainer
4.RWDTransmissionBracket
12.BeltCover
5.V-Belt13.RearPivotArm
6.AWDTransmissionBracket
14.PinionGear
7.SpringArm15.GearCoverAssembly
8.RWDTransmission16.AWDTransmission
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page7–5
DriveSystem:ServiceandRepairs
3445-579RevA
