Toro 21472 - AWD PERSONAL PACE Assembly Replacement

AWDPERSONALPACE®AssemblyReplacement
AWDPERSONALPACE®HandleAssemblyRemoval
1.Parkthemachineonalevelsurface,stoptheengineandwaitforallmoving
partstostop.
2.Removethegrassbaggerassemblyifattached.
3.Removetherecoilropefromtheropeguide.
4.Removethebrakecablefromthecableanchor.

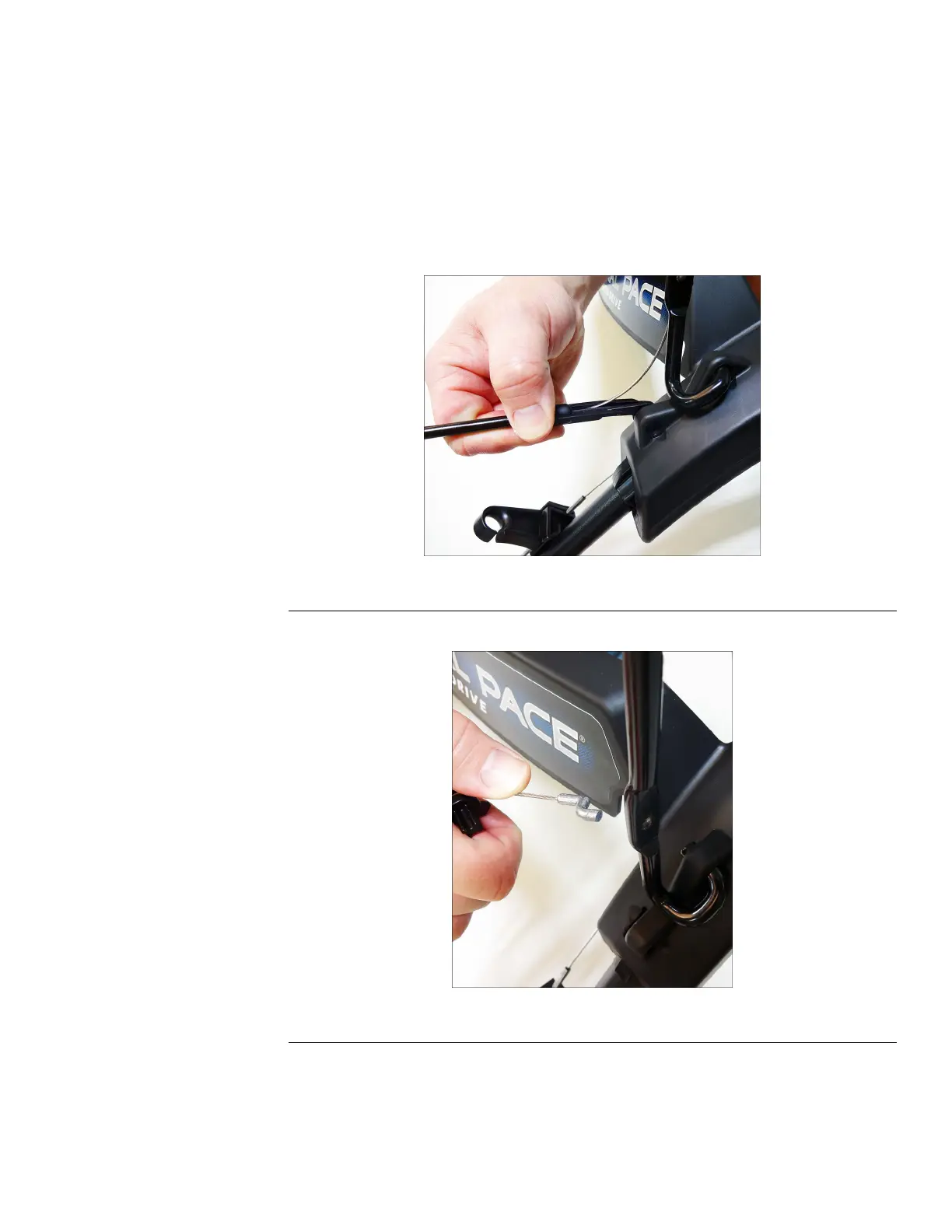

5.Ata90ºangle,removethebrakecablefromthePERSONALPACE®handle.
g352638
Figure64
6.Removethezbendofthebrakecablefromthebail.
g352639
Figure65
7.FromtheRHsideoftheunit,removethebailfromthePERSONALPACE®
handleassembly.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–31
Controls:ServiceandRepairs
3445-579RevA
