ServiceandRepairs
ElectricalAssembly1

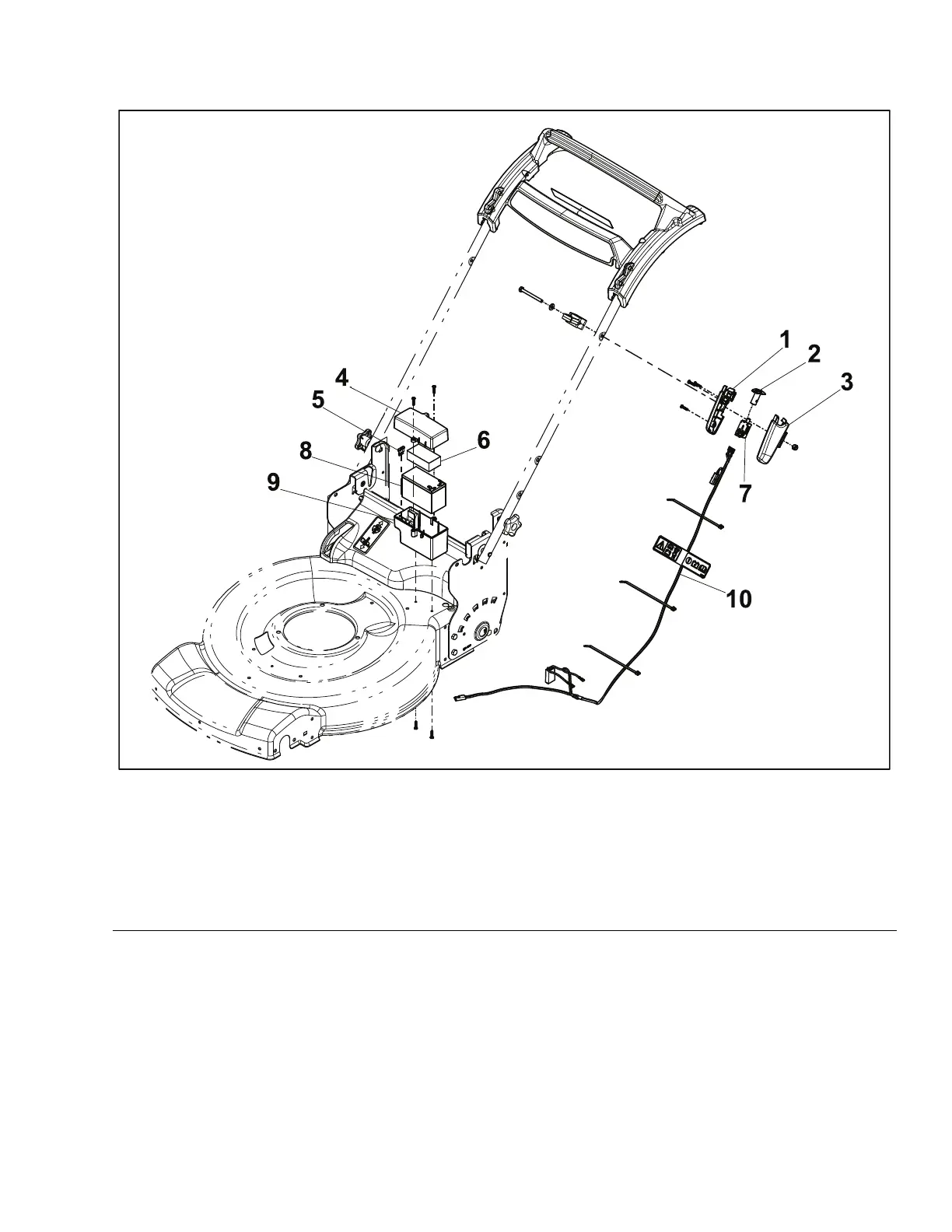

g352314
Figure154
1.RHSwitchHousing
6.T opBatteryFoam
2.SwitchButton7.PushButtonSwitch
3.LHSwitchHousing8.Non-SpillableBattery
4.BatteryCover
9.BatteryTray
5.40AmpFuse10.WireHarness
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page8–3
Electrical:ServiceandRepairs
3445-579RevA
