AWDRearTransmissionRemoval(continued)

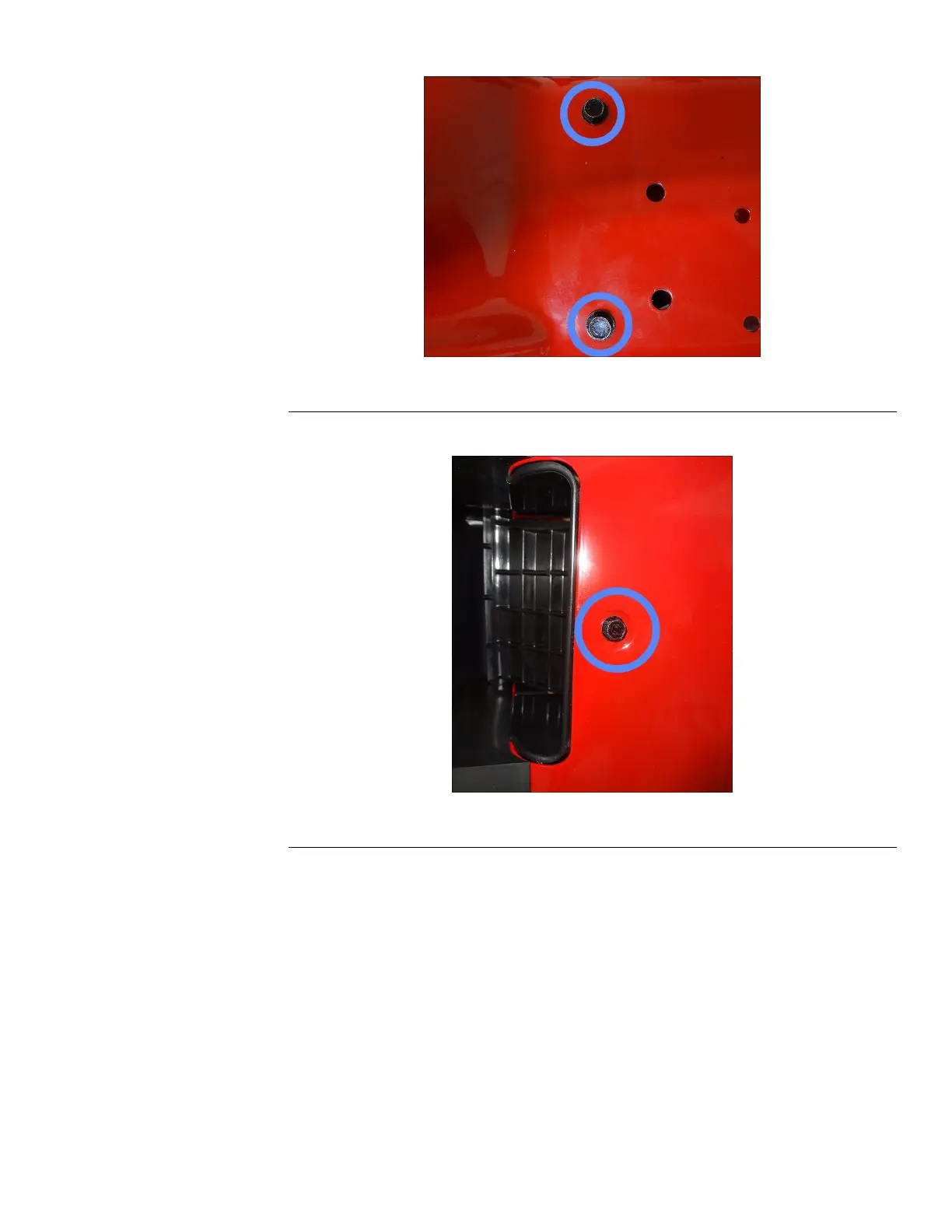

g352575
Figure138
9.Removethe(1/4–10inch)rearscrewsecuringthebafetothedeck.
g352576
Figure139
10.Removethebafefromthedeck.
11.Removethe2screws(1/4–10inch)securingthebeltguideguardtothedeck.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page7–13
DriveSystem:ServiceandRepairs
3445-579RevA
