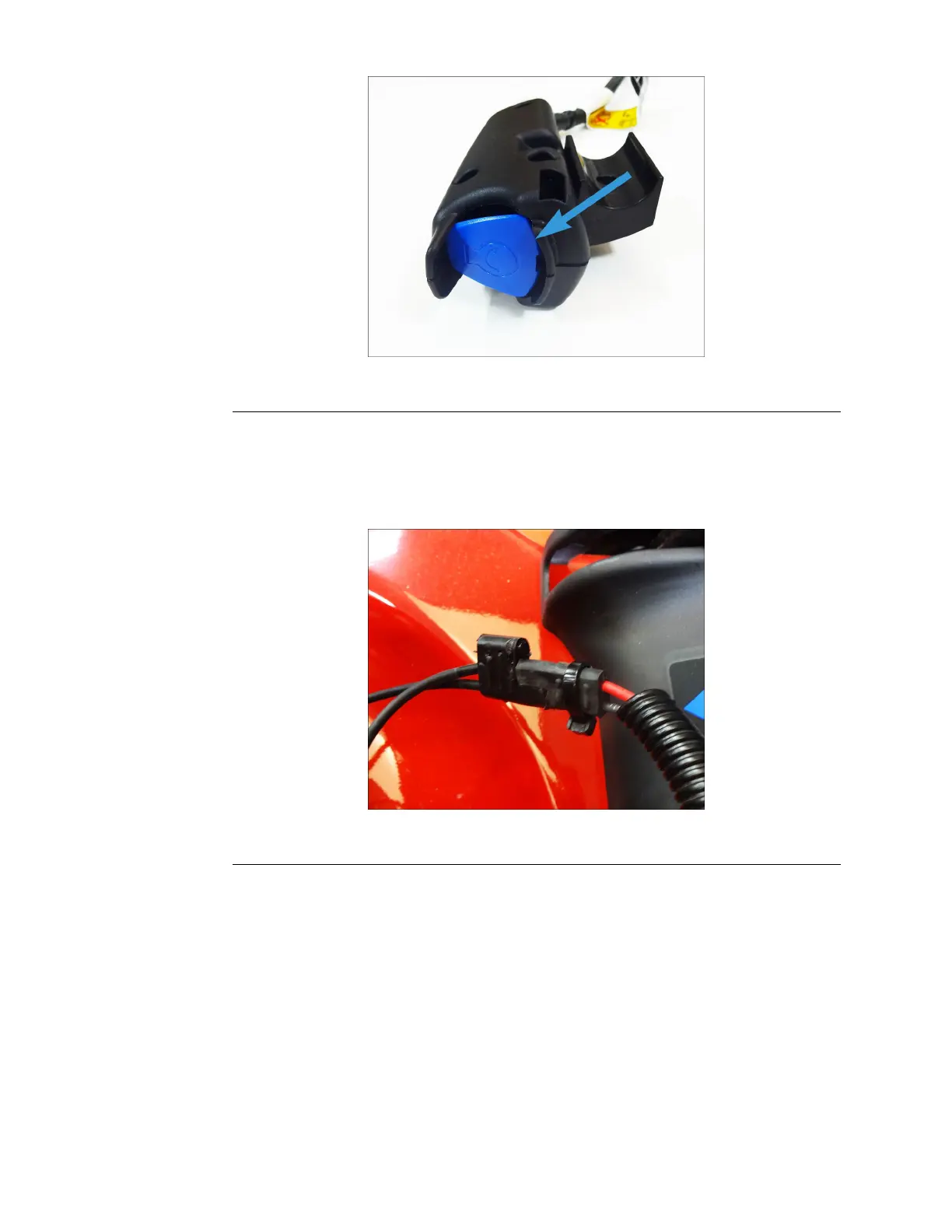

ElectricStarterAssembly(ElectricStartModelsOnly)(continued)
g354406
Figure162
4.Installtheelectricstartertotheunit.(page)
ElectricStarterInstallation(ElectricStartModelsOnly)
1.Connecttheelectricstarterharnesstotheengineharness.
g353638
Figure163
2.Installthebattery.
3.Connectthebatterybyinstallingthepositivecablerst,thenthenegative
cabletothebattery.
Electrical:ServiceandRepairs
Page8–8
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
