RWDTractionCableRemoval(continued)
g352897

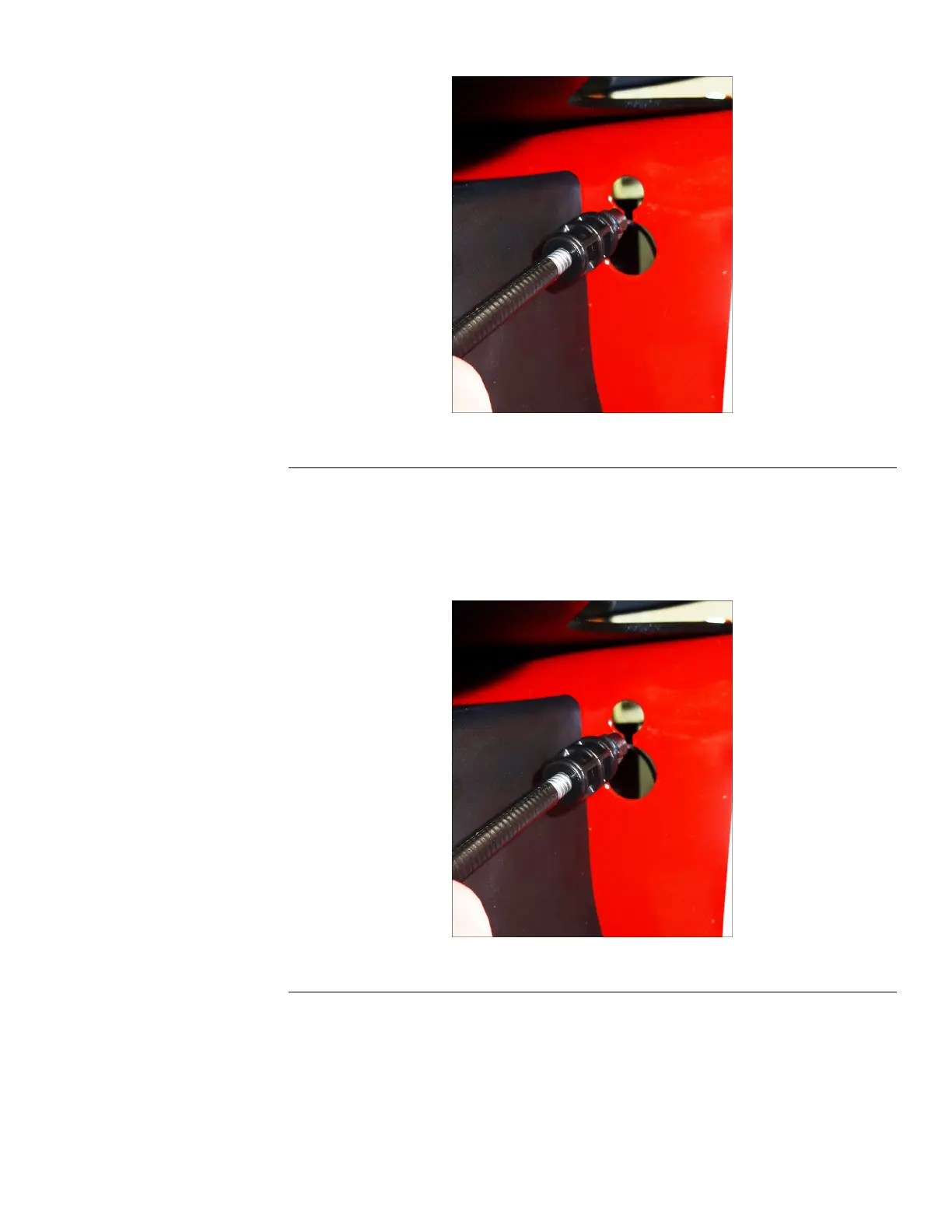

Figure25
10.Removethecablethroughthelargeholeinthedeck.
RWDTractionCableInstallation
1.Routethetractioncontrolcablethroughthechassis.Installthetractioncable
anchorintothedeck.
g352897
Figure26
2.Atthetransmission,installthetractioncablespringontothetractioncable
bracket.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–11
Controls:ServiceandRepairs
3445-579RevA
