AWDFrontTractionCableRemoval(continued)
g359933

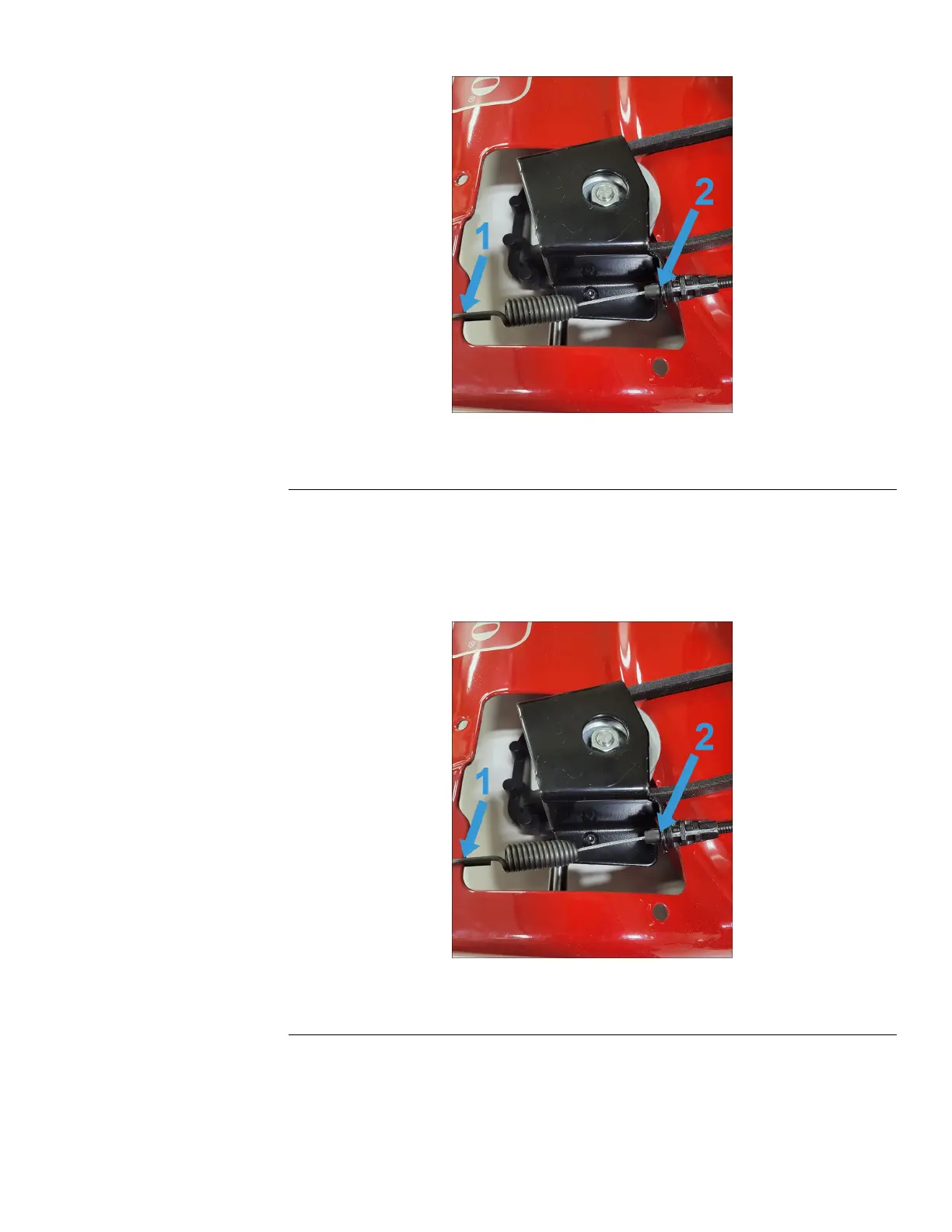

Figure33
1.CableReturnSpring2.FrontTractionCableAnchor
8.Removethefronttractioncablefromtheunit.
AWDFrontTractionCableInstallation
1.Installthecablereturnspringtothedeckandthefronttractioncontrolcable
anchortothetransmissionmount.
g359933
Figure34
1.CableReturnSpring2.FrontTractionCableAnchor
2.Installtheupperintaketothedeck.UpperIntakeInstallation(page6–19)
3.Installthefronttractioncabletothecableyoke.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–15
Controls:ServiceandRepairs
3445-579RevA
