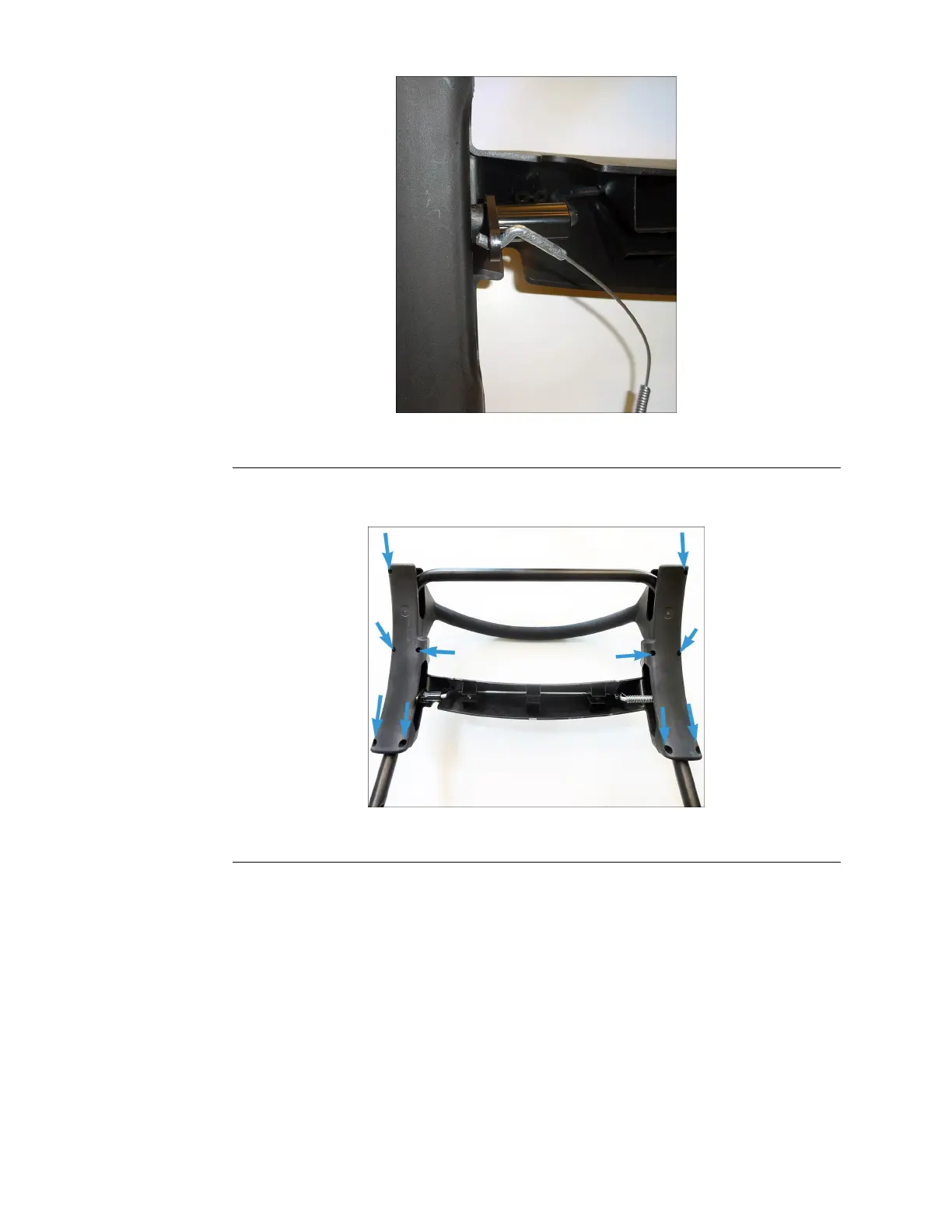

RWDPERSONALPACE®AssemblyHandleRemoval(continued)
g352895
Figure50
13.Removethe10(M4.2x2.0)screwssecuringtheLHandRHbottomhandles
andcurvedPERSONALPACE®handletothecurvedhandle.
g353048
Figure51
14.PullandremovethecurvedPERSONALPACE®handlefromthecurved
handle.
Note:ThehandlepinsmayfalloffwhentheupperPERSONALPACE®
handleisremoved.
15.Removethetorsionspringfromthecurvedhandle.
Controls:ServiceandRepairs
Page5–24
22InchAWD/RWDSteelDeckWalkPower
MowerServiceManual
3445-579RevA
