CurvedHandleRemoval(Non—ElectricStartModelsOnly)(continued)

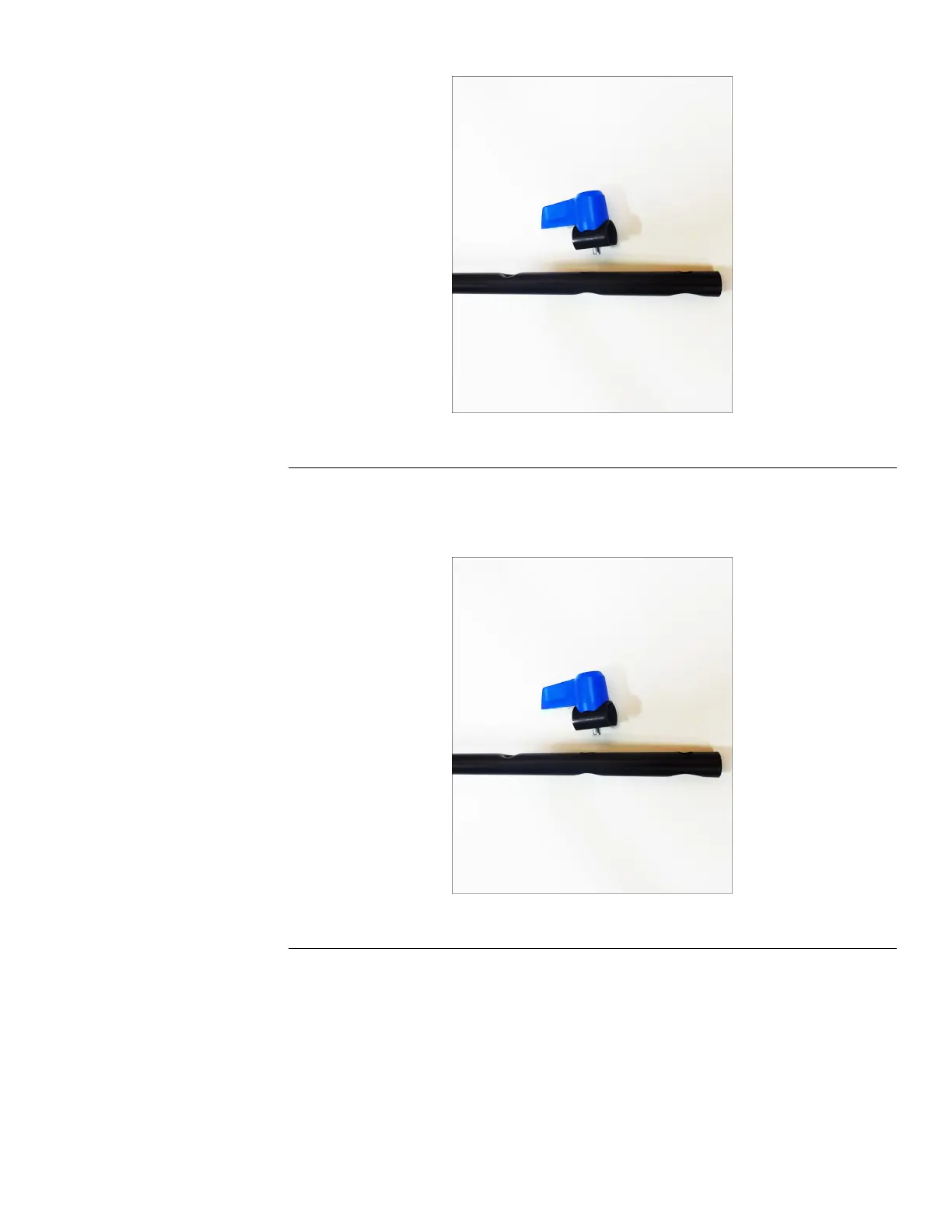

g353182
Figure79
CurvedHandleInstallation(Non—ElectricStartModelsOnly)
1.Installthequickreleaseassembliestothecurvedhandle.
g353182
Figure80
2.Installthecurvedhandleontothechassis.
3.InstalltheLHhandleknobandcarriageboltontothecurvedhandle.Repeat
ontheRHsideoftheunit.
22InchAWD/RWDSteelDeckWalkPowerMowerService
Manual
Page5–39
Controls:ServiceandRepairs
