RearHeight-of-CutAssembly(continued)
4.Usinga1¼inchsocketorwrench,rotatethebushingretainerclockwiseto
installthebushingretainertotherearpivotarm.T orquethebushingretainer
to7.9±9N•m(70±80in-lbs).

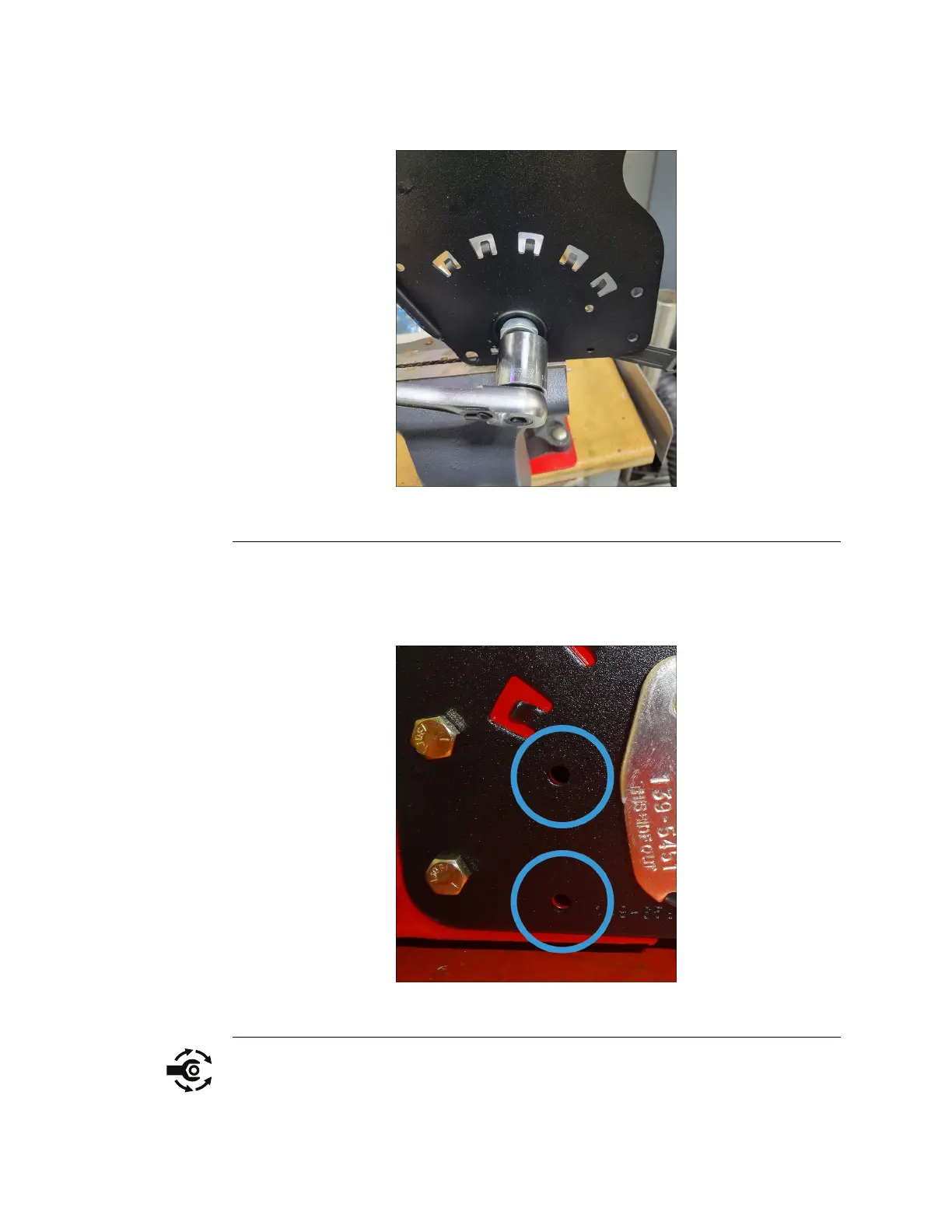

g359619
Figure109
RearHeight-of-CutInstallation
1.AligntheholesonLHtheheight-of-cutplatetotheLHdeck.Repeaton
theRHsideoftheunit.
g370908
Figure110
2.InstalltheLHheight-of-cutplateassemblytothedeck,securewitha(1/4–10
inch)carriagescrewandlocknut.Torquethenutto19.2±3.39N•m(170
±30in-lbs).RepeatontheRHsideoftheunit.
