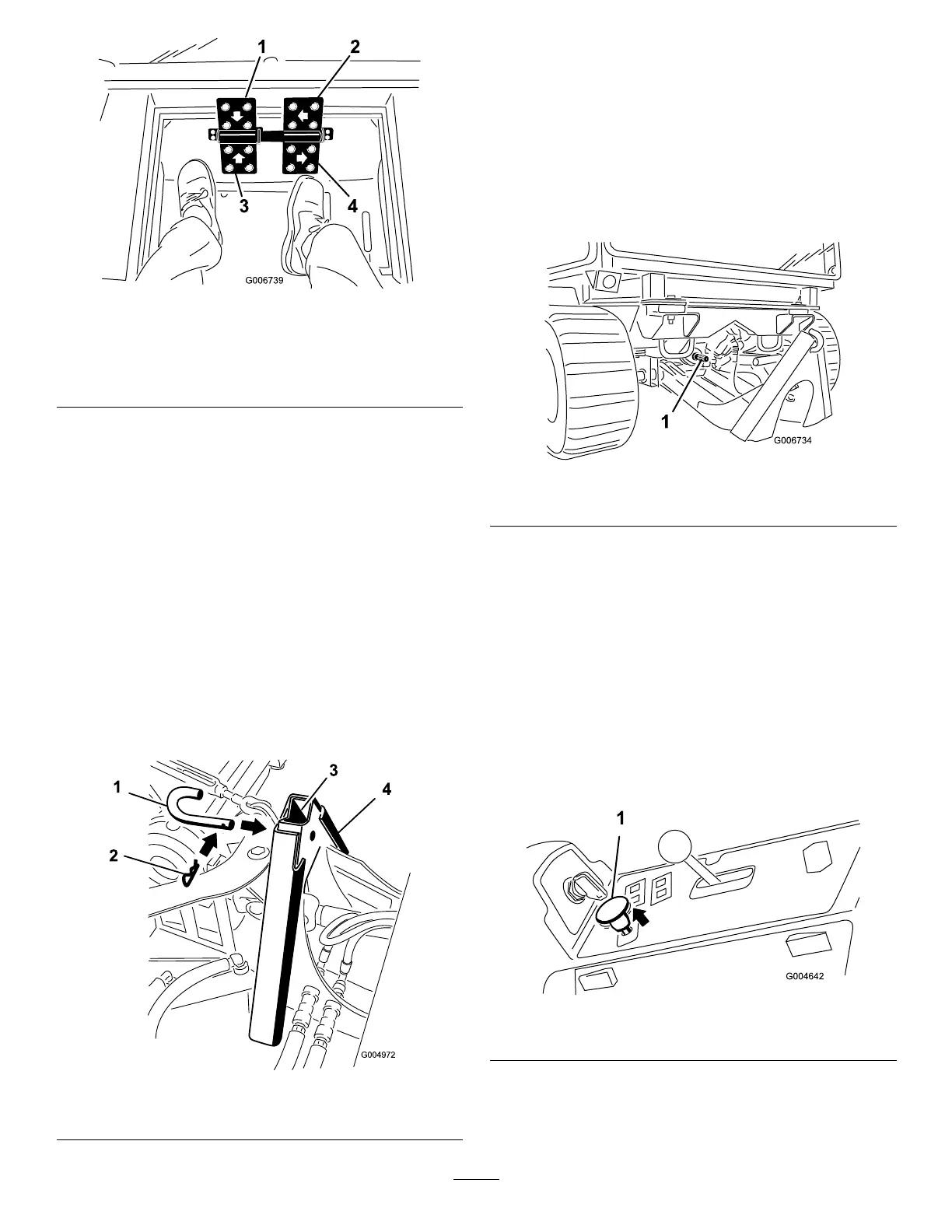

Figure55
1.Presstolowerthe
attachment/liftarm
3.Presstoraisethe
attachment/liftarm
2.Presstoswingthe
attachmenttotheleft
4.Presstoswingthe
attachmenttotheright
Important:Donotcontinuetoholdapedalafterthe
attachmenthasnishedmoving.Doingsowilldamage
thehydraulicsystem.
Connecting/Disconnectingan
Attachment
ReadtheOperator'sManualsuppliedwiththeattachment
beforeoperating.
1.Lowerthefrontliftarm.
2.Drivethemachineintopositionbehindtheattachment
adapter.
3.Raisethemachineadapterontheliftarmintothe
attachmentadapter.
4.Securetheadapterstogetherwiththeattachmentpin
andhairpincotterasshownin
Figure56.
Figure56
1.Attachmentpin
2.Cotterpin
5.Iftheattachmentispoweredbyhydraulics,connect
thehydrauliccouplerontheattachmenttothoseon
thefrontliftarm.
Important:Ensurethatthecouplersareclean
beforeconnectingthemtopreventhydraulic
systemcontamination.
6.IftheattachmentispoweredbythePTO,extendthe
attachmentPTOshaftandinsertitontothemachine
PTOshaft(Figure57).
Figure57
1.PTOshaft
Note:Toremoveanattachment,performtheabovesteps
inreverse.
EngagingthePowerTakeOff(PTO)
Thepowertakeoff(PTO)switchstartsandstopspowered
attachments.
1.Iftheengineiscold,allowtheenginetowarmup5to
10minutesbeforeengagingthePTO.
2.Whileseatedintheseat,releasethepressureonthe
tractioncontrolleversandplacetheminneutral.
3.PulluponthePTOswitchtoengageit(
Figure58).
Figure58
1.PTOswitch
DisengagingthePTO
Todisengage,pushthePTOswitchtotheoffposition.
