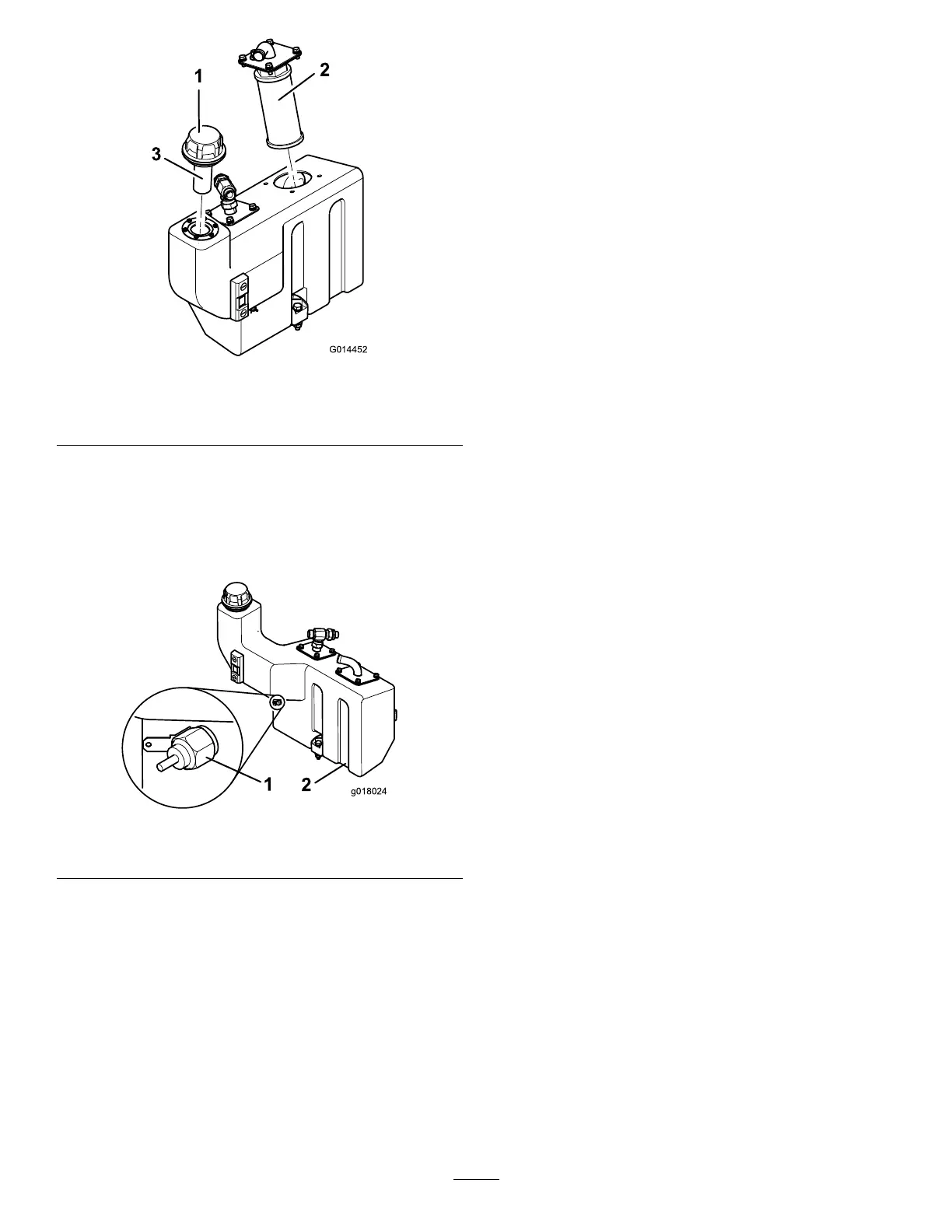

G014452
Figure51
1.Oiltankllercap
3.Fillerstrainer
2.Suctionstrainer
ChecktheHydraulicOil
OverheatWarningSystem
ServiceInterval:Every500hours
1
g018024
2
Figure52
1.Temperatureswitch2.Hydraulicoiltank
1.TurntheignitionkeytotheignitiononpositionI.
2.DisconnecttheRed/Yellowwireterminalfromthe
hydraulictanktemperatureswitch.
3.Touchthemetalterminalofthewireontoasuitable
earthpoint,ensuringthatthemetalsurfacesmake
goodcontact.
Thehornwillsoundandthehydraulicoiltemperature
warninglightwillilluminatetoconrmcorrect
operation.Ifnecessary,makerepairsbeforeoperating
themower.
CheckingtheHydraulicLines
andHoses
Daily,checkhydrauliclinesandhosesforleaks,kinked
lines,loosemountingsupports,wear,loosettings,
weatherdeterioration,andchemicaldeterioration.Make
allnecessaryrepairsbeforeoperating.
