Toro 31201 - Adjusting the Maximum Ground Speed

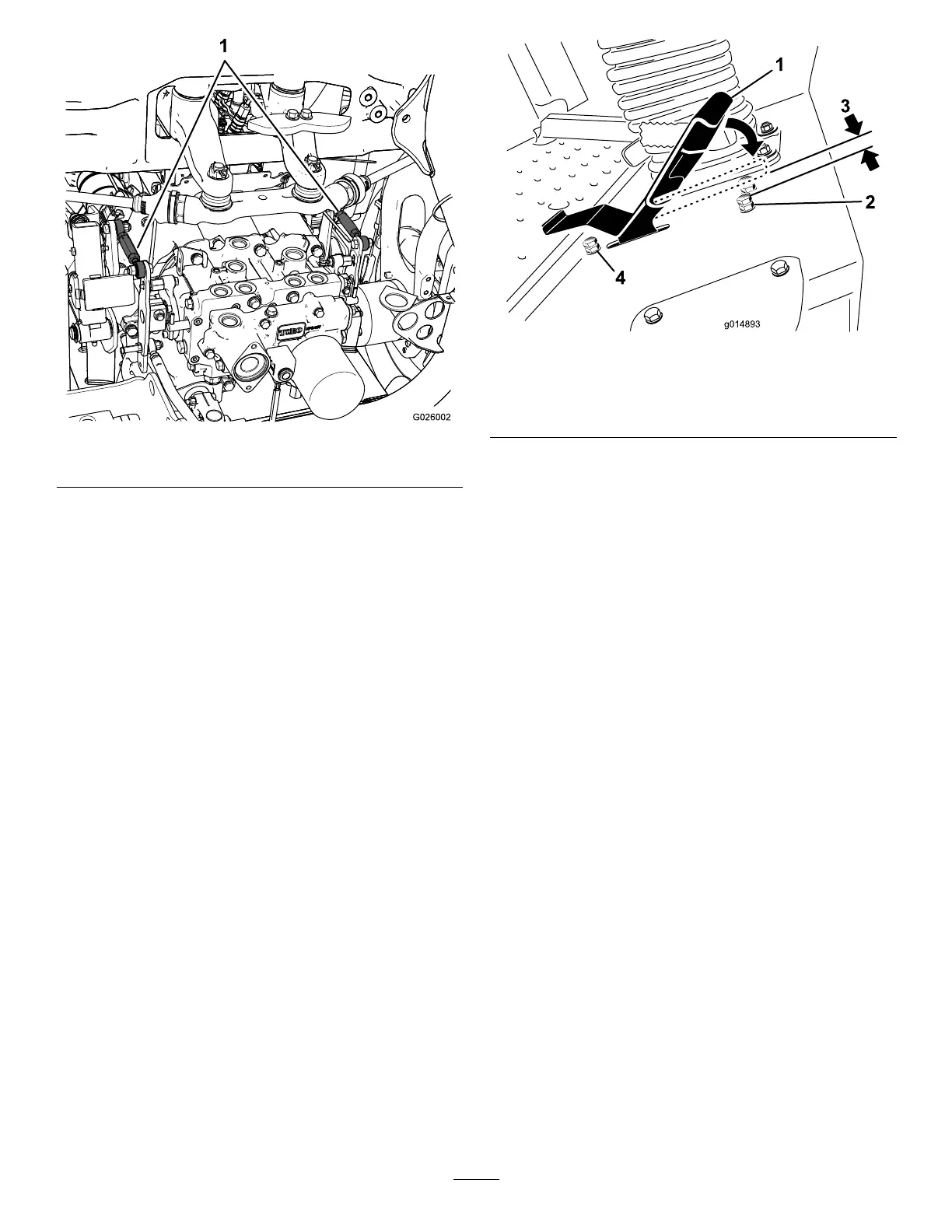

Figure44
1.Transmissioncontrolrods
•Iftheleft,reartireisrotatinginreverse,lengthen
therodbyslowlyturningtherodcounter-clockwise
(asviewedfromthefront)untiltheleftreartire
stopsrotatingorminimalrotationisdetectedin
reverse
•Iftheleft,reartireisrotatingforward,shortenthe
rodbyslowlyturningtherodclockwise(asviewed
fromthefront)untiltheleftreartirestopsrotating.
4.MovethethrottletotheFastposition.Makesurethat
thewheelremainsstoppedorminimalcreepisdetected
inreverse.Adjustitasrequired.
5.Tightenthejamnuts.
6.Repeattheprocedurefortherightreartire,ifrequired,
byusingtherightsidetransmissioncontrolrod.
7.Stoptheengine,removethejackstands,andlowerthe
machinetotheshopoor.
8.Testdrivethemachinetomakesurethatitdoesnot
creep.
AdjustingtheMaximum
GroundSpeed
1.DisengagethePTO,releasethetractionpedaltothe
Neutralposition,andsettheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Loosenthejamnutonthestopboltforthetraction
pedal(Figure45).
Figure45
1.Tractionpedal
3.1.5mm(0.060inch)
2.Stopboltwithjamnut
(forward)
4.Stopboltwithjamnut
(reverse)
4.Adjustthestopboltallthewayin(awayfromthe
tractionpedal).
5.Usingyourhand,pushthetractionpedalalltheway
forward,withlightpressure,untilitstopsandholdit
there.Maintainonlylightpressureonthepedalwhen
pushingittothefullforwardposition.
6.Withtheseatintheraisedposition,verifythatyou
arenotoverloadingthelinkagebymakingsure
thetransmissiondoesnotmovewhenthepedalis
depressedtothestop.
7.Adjustthestopboltout(towardsthetractionpedal)
untilthereisagapof1.5mm(0.060inch)betweenthe
headofthestopboltandthebottomofthetraction
pedal.
8.Tightenthejamnuttosecurethestopboltinplace.
9.Thereversestopboltmaybeadjustedifthemaximum
reversespeedisnotacceptable.
Note:Forafasterreversespeed,adjustthestopbolt
in.Foraslowerreversespeed,adjustthestopboltout.
