Toro 31201 - Hydraulic System Maintenance; Checking the Hydraulic System; Changing the Hydraulic Oil and Filter

HydraulicSystem
Maintenance
Thereservoirislledatthefactorywithapproximately17L
(18qt)ofhigh-qualitytractortransmission/hydraulicuid.
Therecommendedreplacementuidisasfollows:
ToroPremiumTransmission/HydraulicTractorFluid
(Availablein5gallonpailsor55gallondrums.Seeparts
catalogorAuthorizedT oroDistributorforpartnumbers.)
Alternateuids:IftheTorouidisnotavailable,Mobil®424
hydraulicuidmaybeused.
Note:Torowillnotassumeresponsibilityfordamagecaused
byimpropersubstitutions.
Note:Manyhydraulicuidsarealmostcolorless,makingit
difculttospotleaks.Areddyeadditiveforthehydraulic
systemoilisavailablein20ml(2/3oz)bottles.Onebottle
issufcientfor15-22L(4-6gallons)ofhydraulicoil.Order
partnumber44-2500fromyourAuthorizedTorodistributor.
CheckingtheHydraulic
System
ServiceInterval:Beforeeachuseordaily
Checkthelevelofthehydraulicuidbeforetheengineisrst
startedanddailythereafter.
1.Positionthemachineonalevelsurface.Releasethe
tractionpedaltotheneutralpositionandstartthe
engine.Runengineatlowestpossiblerpmtopurge
thesystemofair.DonotengagethePTO.Raise
thedecktoextendliftcylinders,stoptheengine,and
removethekey.
2.Removethehydraulicllcap(Figure46)fromller
neck.
3.Removethedipstickandwipeitwithacleanrag
(Figure46).
4.Screwthedipstickallthewayintothellerneck;then
removeitandchecklevelofuid(Figure46).
Iflevelisnotwithinnotchedareaofthedipstick,add
enoughhighqualityhydraulicuidtoraiselevelto
withinthenotchedarea.Donotoverll.
5.Replacethedipstickandthreadthellcapnger-tight
ontollerneck.
6.Checkallhosesandttingsforleaks.

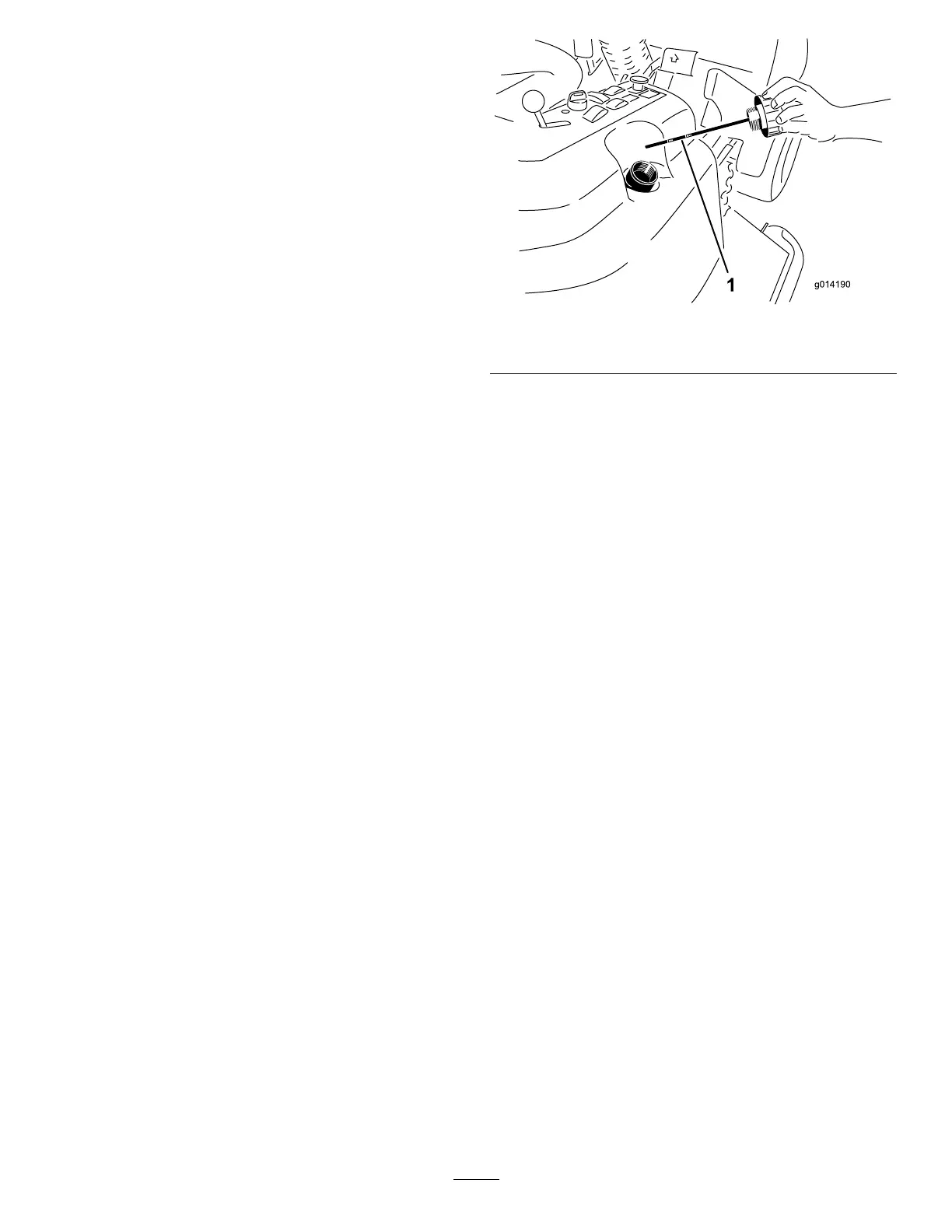

Figure46
1.Dipstick
ChangingtheHydraulicOil
AndFilter
ServiceInterval:Aftertherst200hours
Every800hours
1.DisengagethePTO,releasethetractionpedaltothe
Neutralpositionandsettheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Placealargepanunderthehydraulicreservoirand
transmissioncaseandremovetheplugs,drainingallthe
hydraulicuid(Figure47).
44
