Toro 31222 - Oil Pressure Warning Light; Fuel Gauge

ChargeIndicator
Illuminateswhenthechargingsystemcircuitmalfunctions
(Figure7).
OilPressureWarningLight
Theoilpressurewarninglight(Figure7)glowswhentheoil
pressureinenginedropsbelowasafelevel.Iflowoilpressure
everoccurs,stoptheengineimmediatelyanddeterminethe
cause.Repairthedamagebeforestartingtheengineagain.
FuelGauge
Thefuelgauge(Figure8)indicatesthefuellevelremaining
inthefueltank.

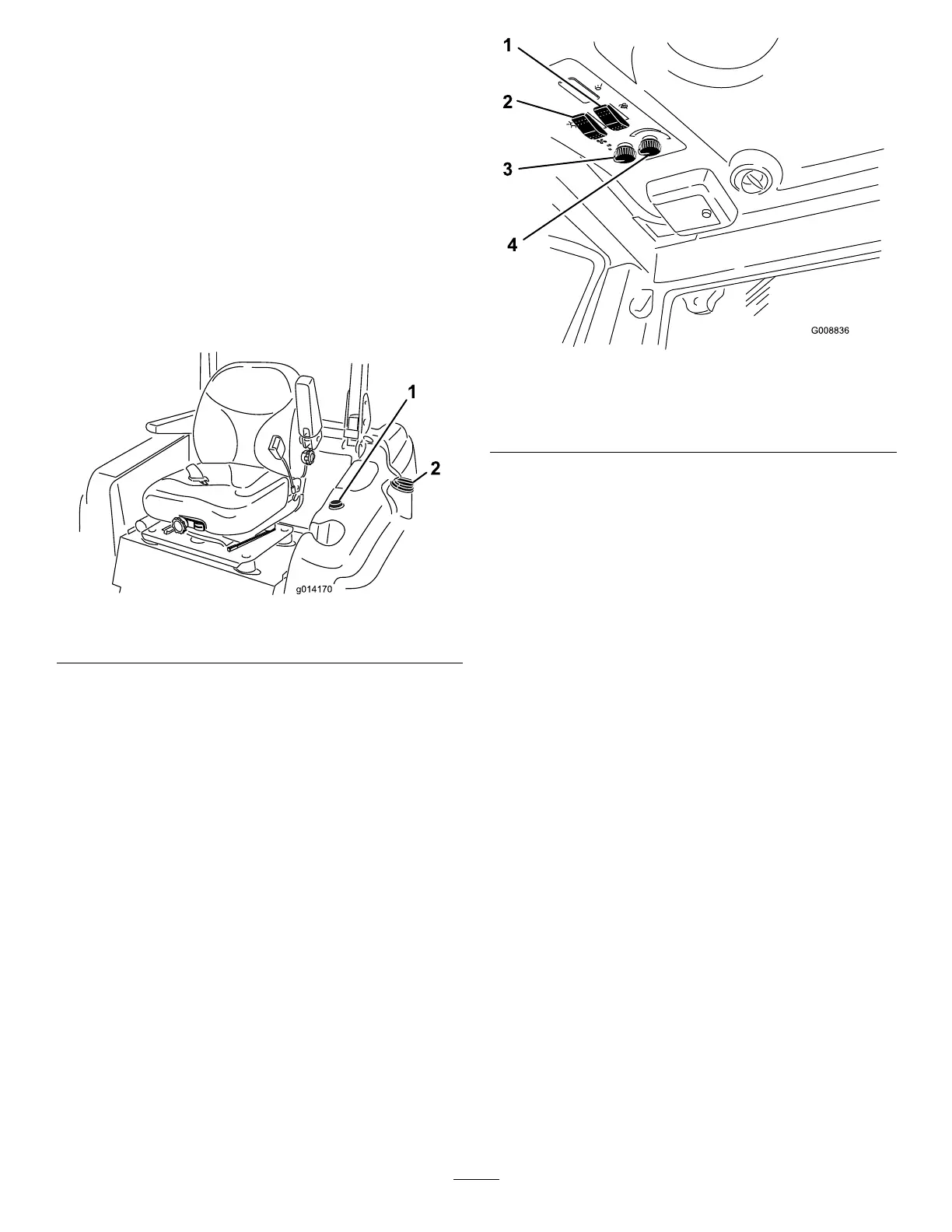

Figure8
1.Fuelgauge2.Fueltankcap
CabControls
Model31222only
WindShieldWiper/WasherSwitch
Presstherearoftheswitchtoactivatethewindshieldwipers
(Figure9)andthefrontofswitchtoactivatethewindshield
washer.Releasetheswitchtoturnoffthewasher.
AirConditioningSwitch
Pressthefrontoftheswitchtoactivatetheairconditioning
(Figure9)andtherearoftheswitchtoturnofftheair
conditioning.
Figure9
1.Windshieldwiper/washer
switch
3.Fancontrol
2.Airconditioningswitch4.Temperaturecontrol
FanControl
Rotatethefancontrolknobtoregulatethespeedofthefan
(Figure9).
TemperatureControl
Rotatethetemperaturecontrolknobtoregulatetheair
temperatureinthecab(Figure9).
HeaterShut-offValve
Closingtheheatershut-offvalve,locatedinengine
compartment(
Figure10),willmaximizetheairconditioner
capacitytothecabduringthesummer.Duringthefall
conversion,fullyopenthevalve.
