IftheoutputLEDsareonasspecied,butthemachinedoes
notfunctionproperly,thisindicatesanon-electricalproblem.
Repairasnecessary.
Note:Ifeachoutputswitchisinthecorrectpositionand
functioningcorrectly,buttheoutputLEDsarenotcorrectly
illuminated,thisindicatesanECMproblem.Ifthisoccurs,
contactyourToroDistributorforassistance.
Important:TheDiagnosticACEdisplaymustnotbe
leftconnectedtothemachine.Itisnotdesignedto
withstandtheenvironmentofthemachine'severyday
use.WhendoneusingtheDiagnosticACE,disconnect
itfromthemachineandconnectloop-backconnector
toharnessconnector.Themachinewillnotoperate
withoutloopbackconnectorinstalledontheharness.
StoretheDiagnosticACEindry,securelocationinthe
shop,notonthemachine.
PositioningtheStandardSeat
ChangingtheSeatPosition
Theseatcanmoveforwardandbackward.Positiontheseat
whereyouhavethebestcontrolofthemachineandaremost
comfortable.
1.Toadjust,movetheleversidewaystounlocktheseat
(Figure23).

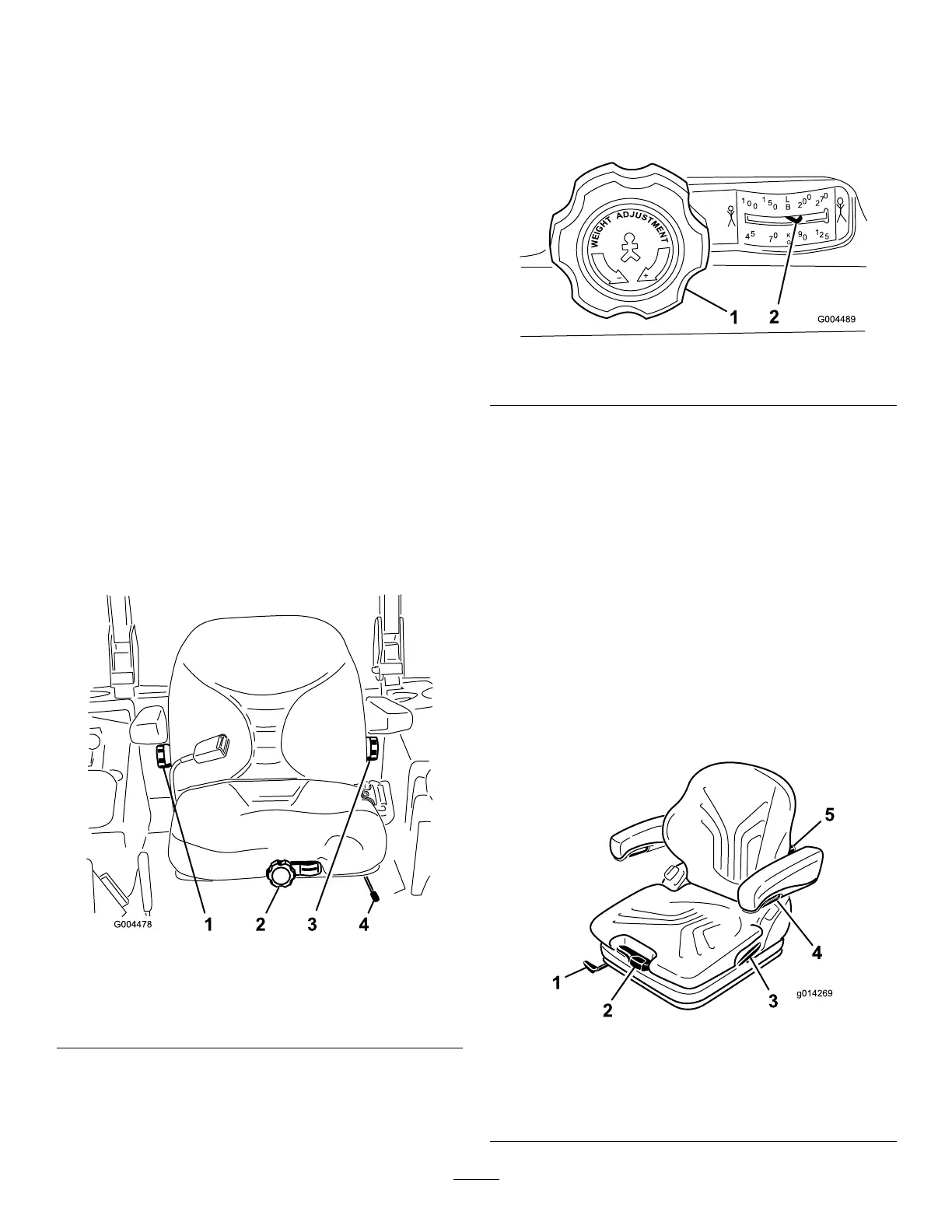

Figure23
1.Backrestknob3.Lumbarsupport
adjustmentknob
2.Seatsuspensionknob4.Seatpositionadjustment
lever
2.Slidetheseattothedesiredpositionandreleaselever
tolockinposition.
3.Verifythattheseathaslockedintoplacebyattempting
tomoveitbackandforth.
ChangingtheSeatSuspension
Theseatcanbeadjustedtoprovideasmoothandcomfortable
ride.Positiontheseatwhereyouaremostcomfortable.
Withoutsittingontheseat,turntheknobinfronteither
directiontoprovidethebestcomfort(Figure23).
Figure24
1.Seatsuspensionknob2.Operatorweightsetting
ChangingtheBackPosition
Thebackoftheseatcanbeadjustedtoprovideacomfortable
ride.Positionthebackoftheseatwhereitismost
comfortable.
Toadjustit,turntheknob,undertheright-sidearmrest,in
eitherdirectiontoprovidethebestcomfort(Figure23).
ChangingtheLumbarSupport
Thebackoftheseatcanbeadjustedtoprovideacustomized
lumbarsupportforyourlowerback.
Toadjustit,turntheknob,undertheleft-sidearmrest,in
eitherdirectiontoprovidethebestcomfort(Figure23).
PositioningtheDeluxeSeat
Figure25
1.Fore/Aftadjustmentlever
4.Armrestadjustmentknob
2.Weightadjustmentlever5.Lumbarsupportadjusting
knob
3.Backrestlockinglever
