Toro 31222 - Cleaning the Air Conditioning Coil

G009265
1
2
3
G009266
1
2
3
Figure55
1.Thumbscrew
3.Airlter
2.Grate
2.Cleantheltersbyblowingclean,oilfree,compressed
airthroughthem.
Important:Ifeitherlterhasahole,tear,orother
damage,replaceit.
3.Installtheltersandgrate,securingthemwiththe
thumbscrews.
CleaningtheAirConditioning
Coil
ServiceInterval:Every250hours(Cleanmorefrequentlyin
extremelydustyordirtyconditions)
1.Stoptheengineandremovethekey.
2.Removethe4screwssecuringthefanandthe
condensercovertothefanmount(Figure56).
3.Carefullyliftthefanoutofthecondensercover.

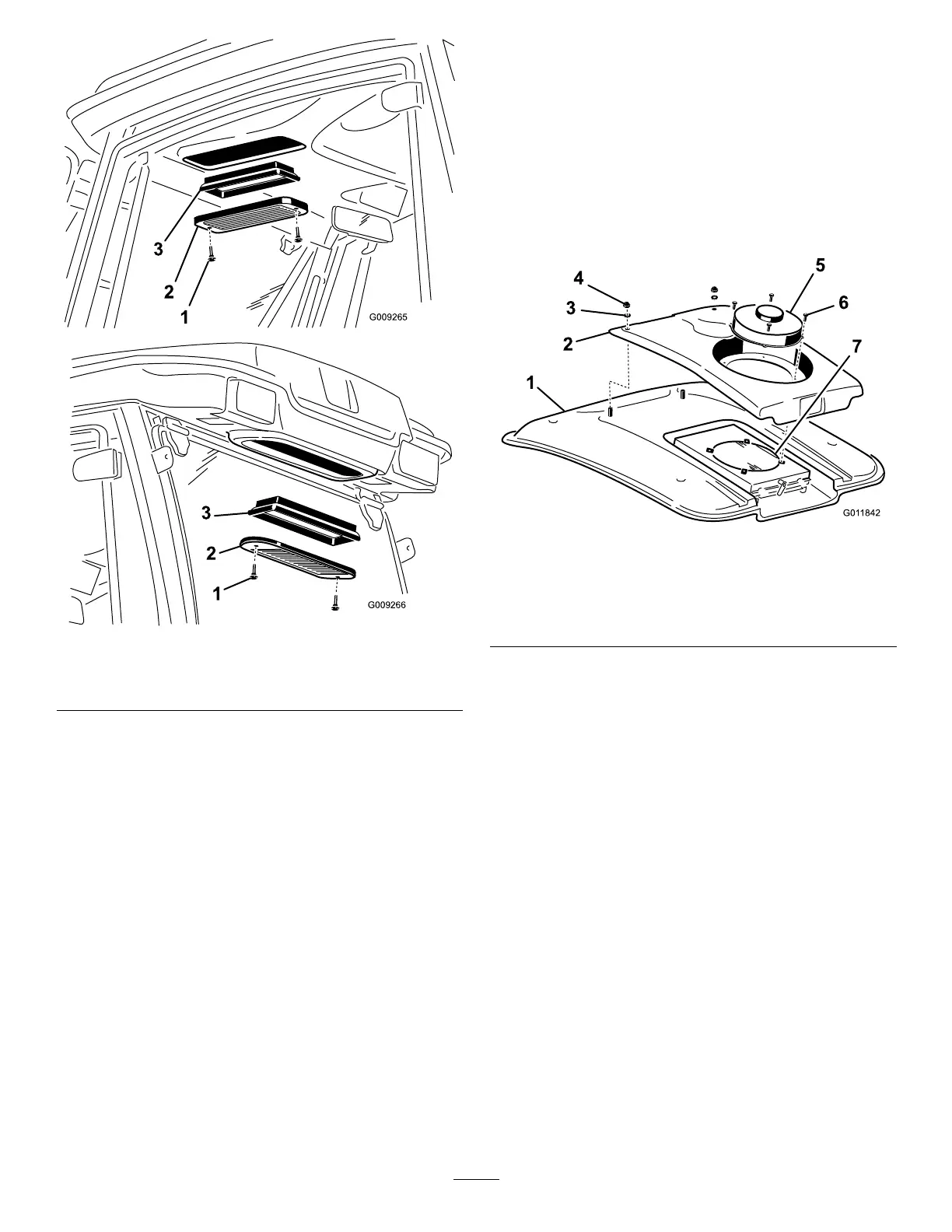

Figure56
1.Cabinroof
5.Fan
2.Condensercover6.Screw
3.Washer7.Airconditioningcondenser
4.Nut
4.Removethetwonutsandwasherssecuringthefrontof
thecondensercovertothecabroof(Figure56).
5.Unplugthefanwireconnectorslocatedbetweenthe
coverandroof.
6.Removethefanandthecover.
7.RemoveandcleantheA/CCondenserScreen.Refer
toCleaningtheA/CCondenserScreen.
8.Cleantheairconditioningcondenserthoroughlywith
compressedair(Figure56).
9.ReplacetheA/CCondenserScreen.
10.Replacethecondensercoverandfan.Makesureto
connectthefanwiresbeforesecuringthecondenser
cover.
