Toro 31222 - Adjusting the Speed Limiter Lever

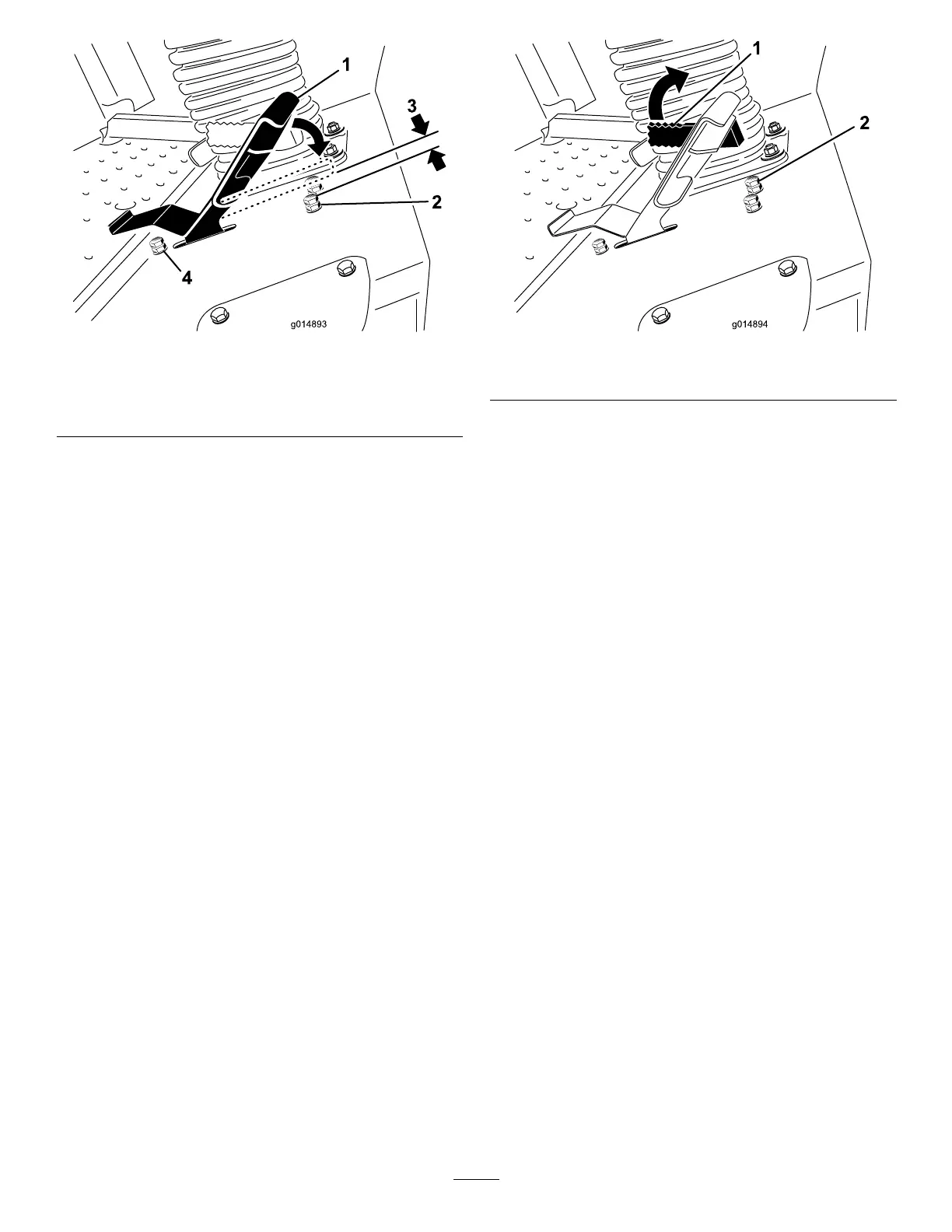

Figure51
1.Tractionpedal
3.1.5mm(0.060inch)
2.Stopboltw/jamnut
(forward)
4.Stopboltw/jamnut
(reverse)
4.Adjustthestopboltallthewayin(awayfromthe
tractionpedal).
5.Usingyourhand,pushthetractionpedalalltheway
forward,withlightpressure,untilitstopsandholdit
there.Maintainonlylightpressureonthepedalwhen
pushingittothefullforwardposition.
6.Withtheseatintheraisedposition,verifythatyou
arenotoverloadingthelinkagebymakingsure
thetransmissiondoesnotmovewhenthepedalis
depressedtothestop.
7.Adjustthestopboltout(towardsthetractionpedal)
untilthereisagapof1.5mm(0.060inch)betweenthe
headofthestopboltandthebottomofthetraction
pedal.
8.Tightenthejamnuttosecurethestopboltinplace.
9.Thereversestopboltmaybeadjustedifthemaximum
reversespeedisnotacceptable.Forafasterreverse
speed,adjustthestopboltin.Foraslowerreverse
speed,adjustthestopboltout.
AdjustingtheSpeedLimiter
Lever
Thespeedlimiterlever(Figure52)canbeippedforwardto
limitthetractionspeedwhileoperating.
1.DisengagethePTO,releasethetractionpedaltothe
neutralpositionandsettheparkingbrake.
2.MovethethrottlelevertotheSlowposition,stopthe
engine,removethekey,andwaitforallmovingpartsto
stopbeforeleavingtheoperatingposition.
3.Loosenthejamnutonthespeedlimiterstopbolt
(
Figure52).
Figure52
1.Speedlimiterlever2.Stopboltw/jamnut
4.Threadthestopboltintoincreasethespeedandout
todecreasethespeed.
5.Tightenthejamnuttolocktheadjustment.
6.Rotatethespeedlimiterleverdown,operatethe
machinetoverifytheadjustmentandreadjustthestop
boltasrequired.
