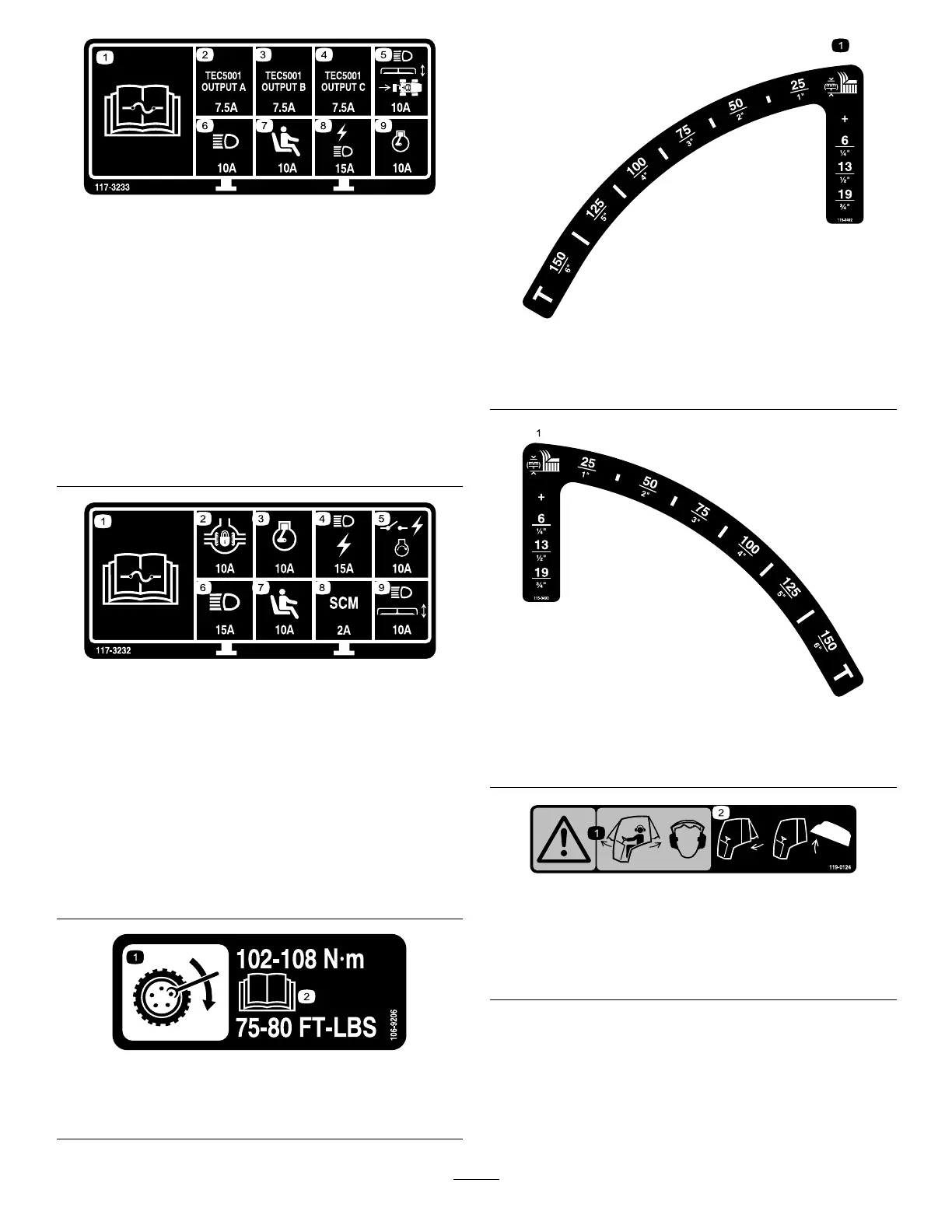

117-3233
4Wheeldrivemodels
1.ReadtheOperator'sManualforinformationonfuses.
2.4wheelsteersolenoid—7.5amp
3.PTOenable,4wheelsteerlamp,decklift,deckoat—7.5
amp
4.Glowindicator,fuelrunsolenoid,diagnosticlight,start—7.5
amp
5.Headlights,deckactuator,powertake–off—10amp
6.Lights—15amp
7.Operatorpresenceswitch—10amp
8.Powerpoint,lights—15amp
9.Engine—10amp
117-3232
2Wheeldrivemodels
1.ReadtheOperator'sManualforinformationonfuses.
2.Differentiallockout—10amp
3.Engine—10amp
4.Lights,powerpoint—15amp
5.Powerswitch,engineignition—10amp
6.Lights—15amp
7.Operatorpresenceswitch—10amp
8.Computer—2amp
9.Headlights,deckactuator—10amp
106-9206
1.Wheeltorquespecications
2.ReadtheOperator'sManual.
115-0492
Non-cabmodels
1.Heightofcut(mm)
115-0493
Cabmodels
1.Heightofcut(mm)
119–0124
(Cabmodels)
1.Warning—whenthecabwindowsareopenwearhearing
protection.
2.Closetherearwindowbeforeattemptingtoopenthehood.
