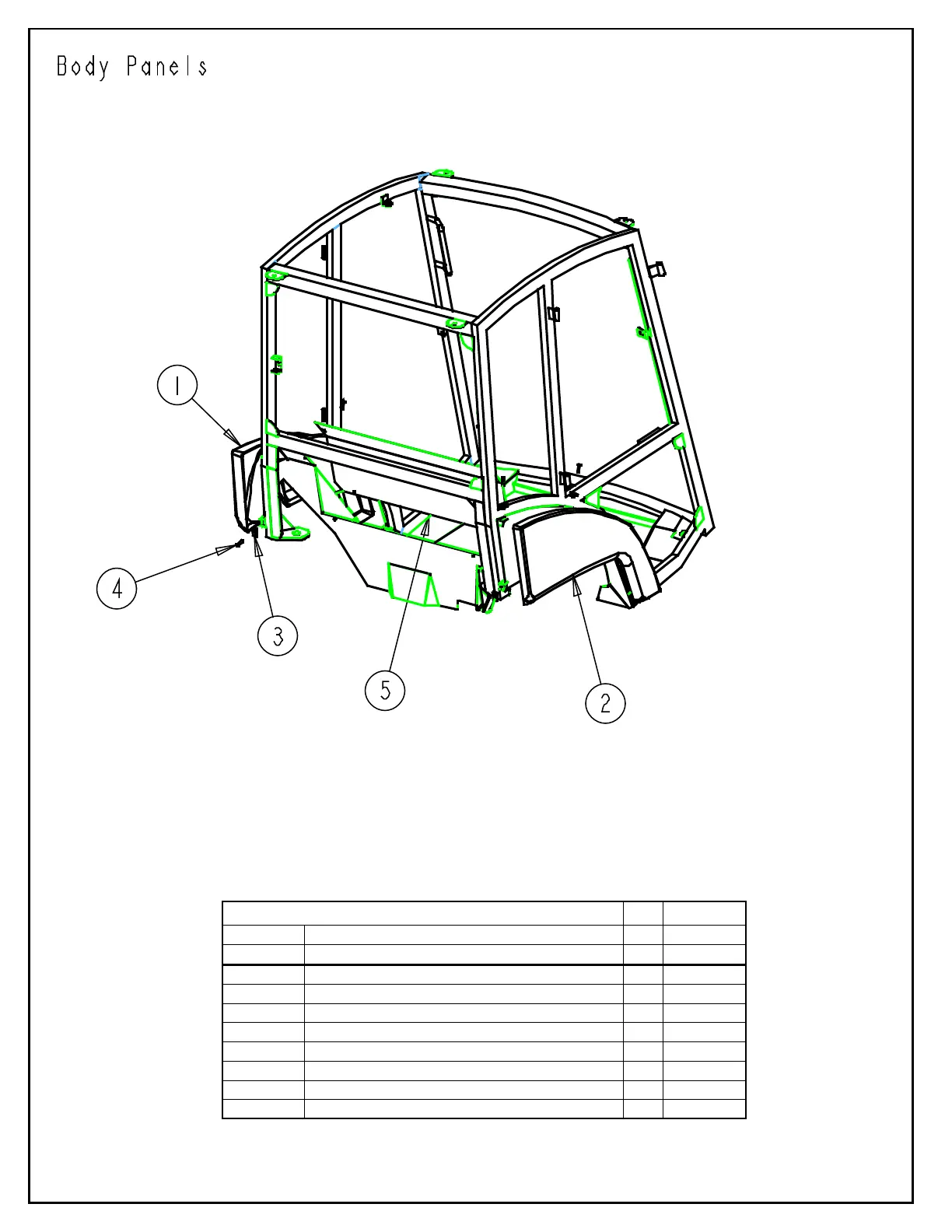

Body Panels
Item #
Description
Qty.
JDP P/N
1
Left Composite Side Panel
1
101471
2
Right Composite Side Panel
1
101472
3
Nut, Extruded-Panel, 1/4"
8
100042
4
Screw, Button-Head, 1/4" x 1", Macro-black
8
100441
5
Rear Shield
1
101482
n/a
Nut, 4-Lobe, 1/4"
4
101483
