Toro 3280-D - Opening Side Window Assembly

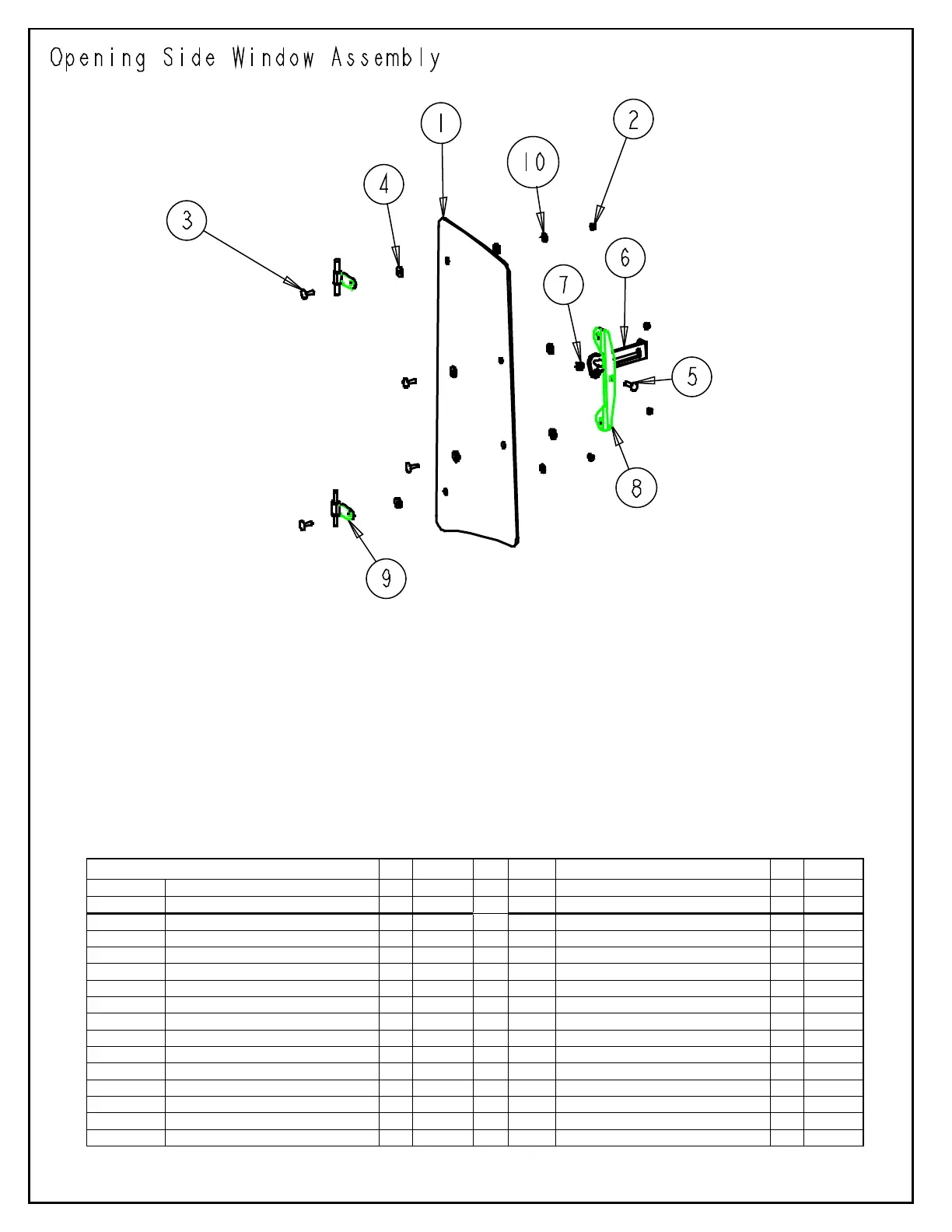

Opening Side Window Assembly
Item #
Description
Qty.
JDP P/N
Item #
Description
Qty.
JDP P/N
1 Left Side Window 1 101456 n/a Right Side Window 1 101456
n/a Glass Weatherstripping (8.43LF) 1 101462 n/a Glass Weatherstripping (8.43LF) 1 101462
2 Nut, Flange, 1/4", Macro-black 4 100223 n/a Nut, Flange, 1/4", Macro-black 4 100223
3 Bolt, Step, 1/4" x 1", Macro-black 4 100003 n/a Bolt, Step, 1/4" x 1", Macro-black 4 100003
4 Bushing, Neoprene, 5MM, Black 8 100382 n/a Bushing, Neoprene, 5MM, Black 8 100382
5 Bolt, Carriage, 5/16" x 1", YD 1 100374 n/a Bolt, Carriage, 5/16" x 1", YD 1 100374
6 Side Window Latch 1 100027 n/a Side Window Latch 1 100028
7 Nut, Flange, 5/16", YD 1 100005 n/a Nut, Flange, 5/16", YD 1 100005
8 Side Window Latch Bracket 1 100375 n/a Side Window Latch Bracket 1 100375
9 Side Window Hinge Weldment 2 100379 n/a Side Window Hinge Weldment 2 100379
n/a Hinge Brass Flat Washer 4 100026 n/a Hinge Brass Flat Washer 4 100026
10 Washer, Flat, 1/4", YD 2 100380 n/a Washer, Flat, 1/4", YD 2 100380
