Toro 3280-D - Door Assembly

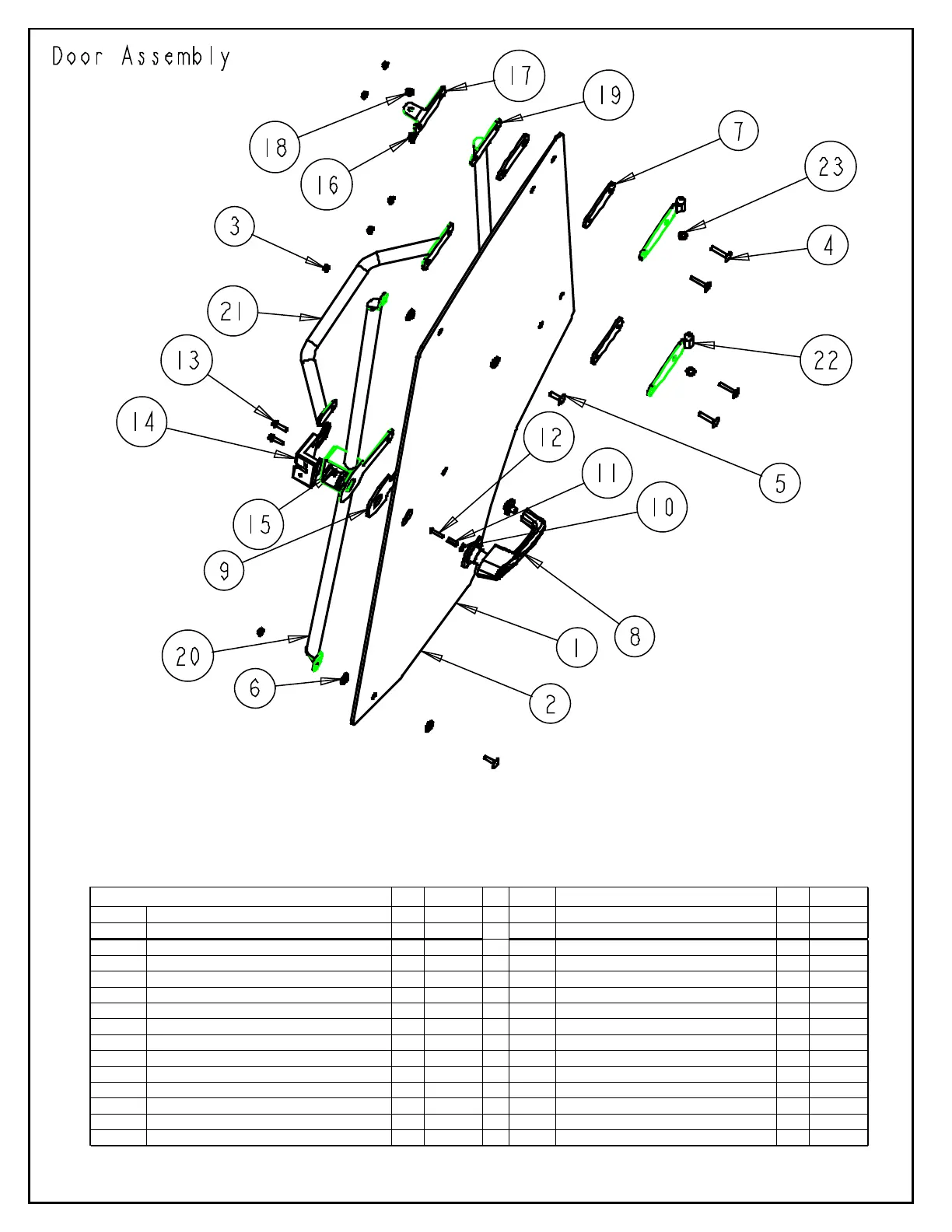

Door Assembly
Item #
Description
Qty.
JDP P/N
Item #
Description
Qty.
JDP P/N
1 Door Glass 1 101455 13 Bolt, Flange, M6 x 1.0 x 25mm, YD 3 100007
2 Door Glass Weatherstripping (13.57LF) 1 101461 14 Door Latch - Left 1 100006
3 Nut, Flange, 1/4", Macro-black 6 100223 15 Nut, Flange, M6 x 1.0m YD 2 100008
4 Bolt, Step, 1/4" x 1 1/2", Marco-black 4 100635 16 Gas Shock Ball Stud 1 100366
5 Bolt, Step, 1/4" x 1", Macro-black 2 100003 17 Gas Shock Mount Plate 1 100368
6 Bushing, Neoprene, 5MM, Black 4 100382 18 Nut, Flange, 5/16", YD 1 100005
7 Neoprene, Injection Molded, 5MM, Black 4 100362 19 Door Hinge Support Weldment 1 100936
8 Door Push-Button Handle 1 101445 20 Door Latch Support Weldment 1 100937
9 Door Handle Bushing 1 101397 21 Door Grab Handle Weldment 1 100938
10 Washer, Flat, 3/16" 1 101478 22 Door Hinge Weldment 2 100377
11 Nut, Coupler, 10-32 x 3/4" 1 101476 23 Hinge Brass Flat Washer 2 100026
12 Machine Screw, 10-32 x 1 1/4" 1 101477
