RightConsoleRemoval(continued)

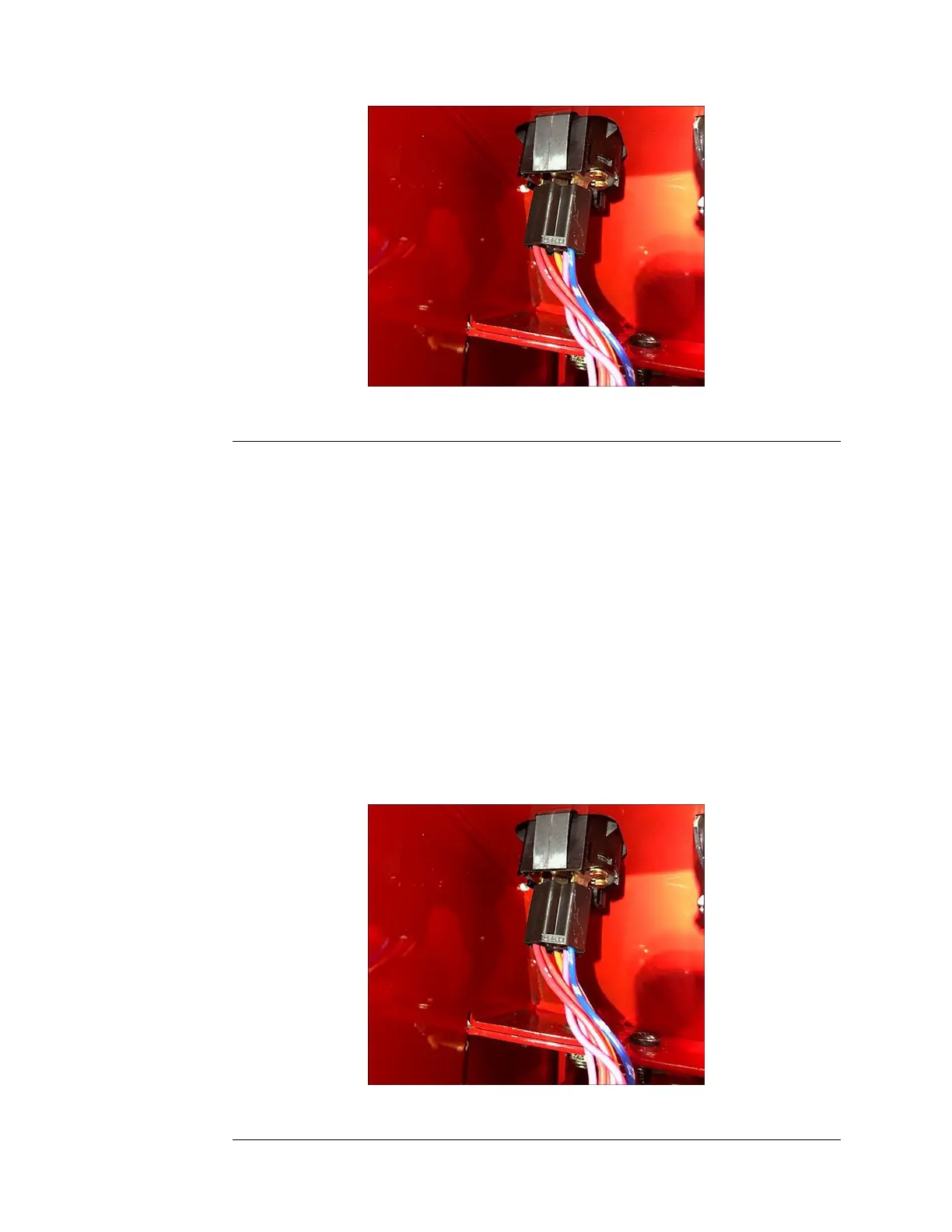

9.DisconnectthewiringharnessfromthePTOswitch.

g346222

Figure25

10.Pinchtogetherthe2tabsonthePTOswitch.Pushingfromthebottomside

up,removethePTOswitchfromtheRHsidepod.

11.Pinchtogetherthe2tabsontheignitionswitch.Pushingfromthebottom

sideup,removetheignitionswitchfromtheRHsidepod.

12.Removethe2(5/16inch)locknutsandcarriageboltssecuringtheRH

consoletothechassis.

13.LifttheRHconsoleawayfromthemachine.

RightConsoleInstallation

1.InstalltheRHconsoleontothemachine.

2.Installthe2(5/16inch)locknutsandcarriageboltssecuringtheRHconsole

tothechassis.

3.InstalltheignitionswitchtotheRHsidepod.

4.InstallthePTOswitchtotheRHsidepod.

5.ConnectthewiringharnesstothePTOswitch.

g346222

Figure26

Chassis:ServiceandRepairs

Page5–12

4000SeriesZMASTER®ServiceManual

3442-427RevA
