ElectricMowerDeckLiftReplacement
ElectricMowerDeckLiftRemoval
1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe
engine,waitforallmovingpartstostopandremovethekey.Engagethe
parkingbrake.
2.Removetheheight-of-cutpin.Lowerthedeckuntilit’sontheoorandthere
isslackinthechains.

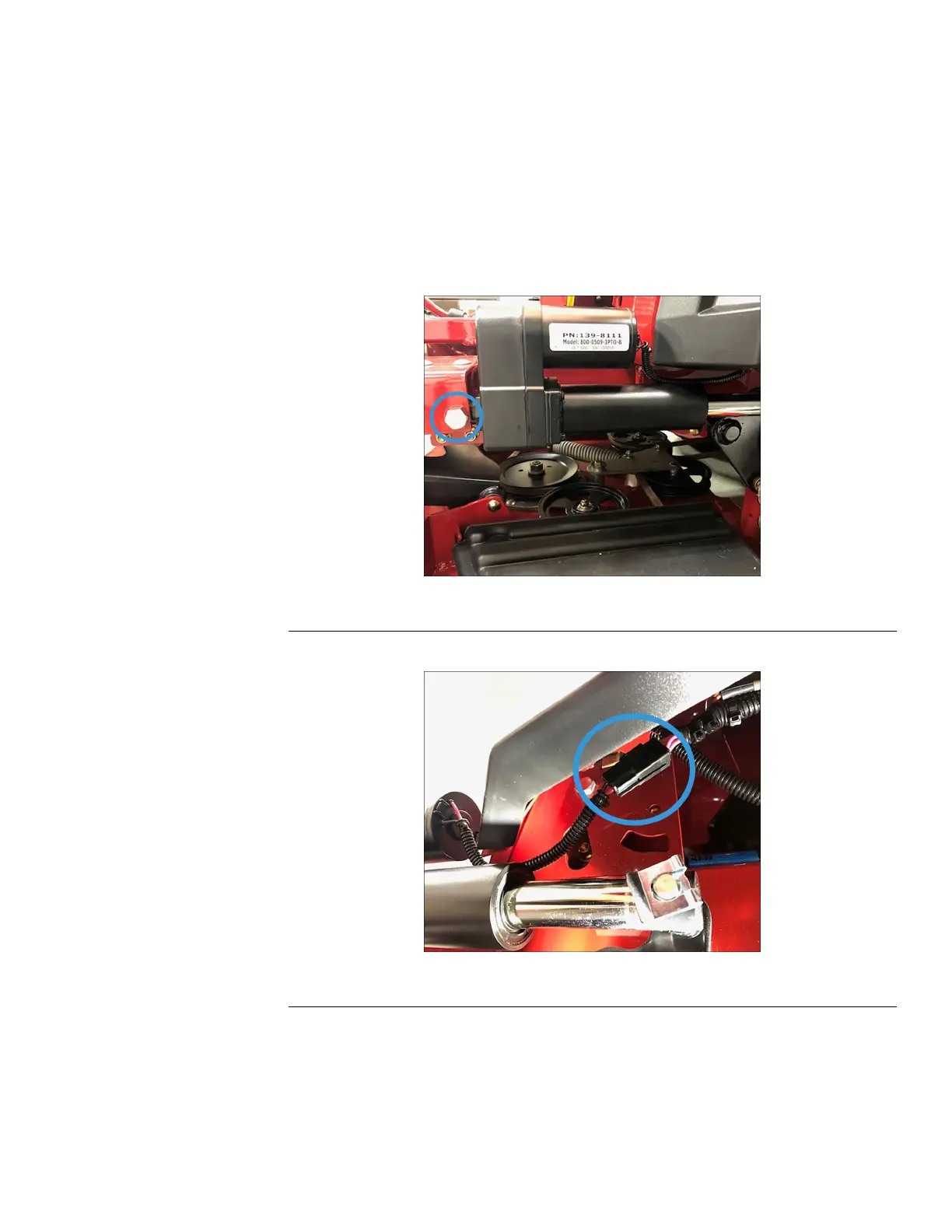

3.Removethe½locknutandboltsecuringthedecklifttothedeckliftactuator.
Note:Mayneedtoraisedeckliftactuatorslightlyforremoval.Decklift
actuatorwillswingdownwardsafterfastenerremoval.
g348232
Figure63
4.Disconnecttheharnessplugfromthedecklifttothewiringharness.
g348235
Figure64
5.Removethepinclipsecuringtherearofthedeckliftactuatortothedeck
liftasm.Removethedeckliftasm.
ElectricMowerDeckLiftInstallation
1.Installthedeckliftasm.Installthepinclipsecuringtherearofthedecklift
actuatortothedeckliftasm.
4000SeriesZMASTER®ServiceManual
Page6–9
Deck:ServiceandRepairs
3442-427RevA
