ThrottleCableAssemblyUnitInstallation(continued)

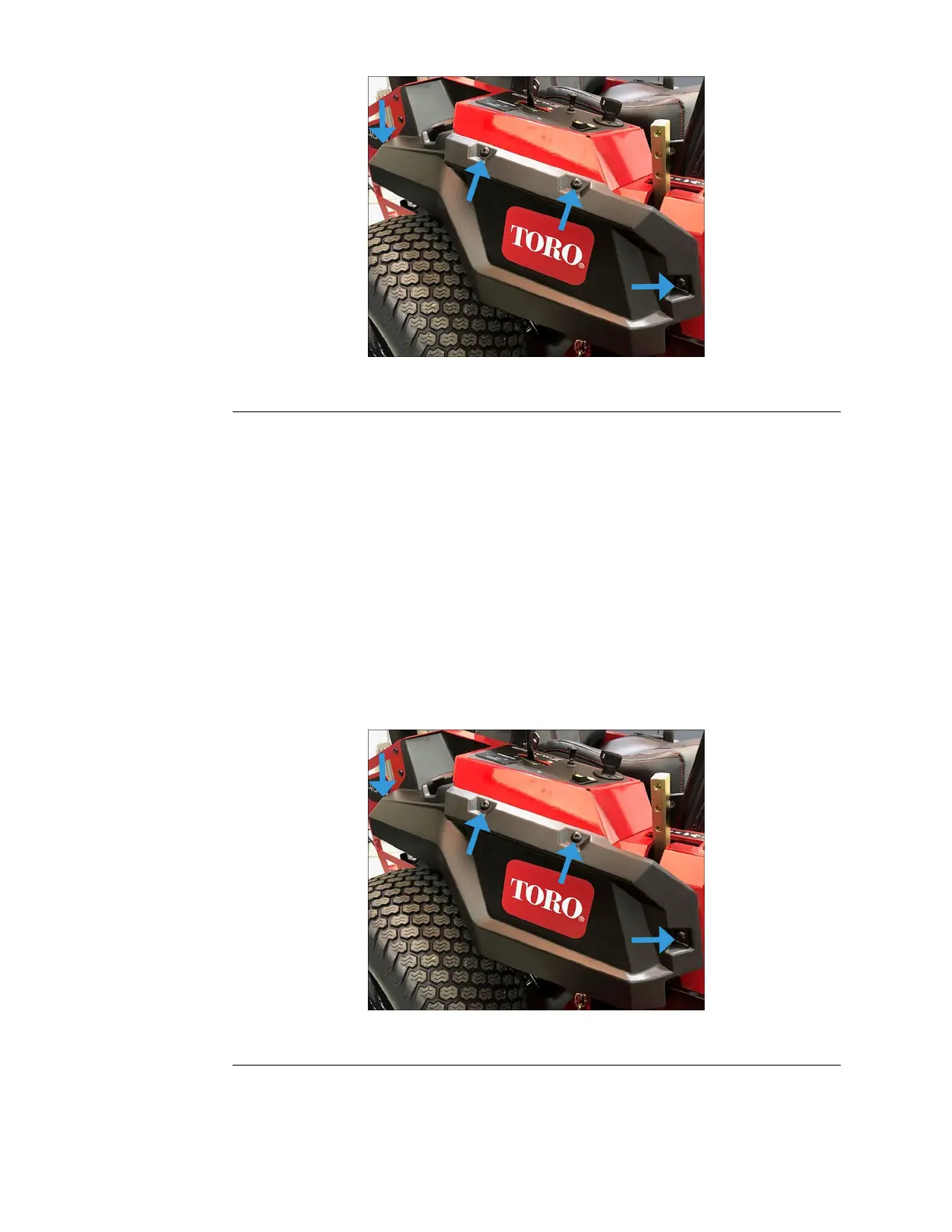

g346220

Figure31

5.Connectthebatterybyinstallingthepositivecablerst,thenthenegative

cabletothebattery.

ChokeCableAssemblyReplacement

ChokeCableAssemblyUnitRemoval

1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe

engine,waitforallmovingpartstostopandremovethekey.Engagethe

parkingbrake.

2.Disconnectthebatterybyremovingthenegativecablerst,thenthepositive

cablefromthebattery.

3.Removethe4(1/4-20inch)torxscrewssecuringtheRHsidepodtotheRH

console.RemovetheRHsidepodfromtheRHconsole.

g346220

Figure32

4.Removethenutfromthebottomsideofthechokecablesecuringthecable

tothepod.

5.Disconnectthechokecable.

Chassis:ServiceandRepairs

Page5–16

4000SeriesZMASTER®ServiceManual

3442-427RevA
