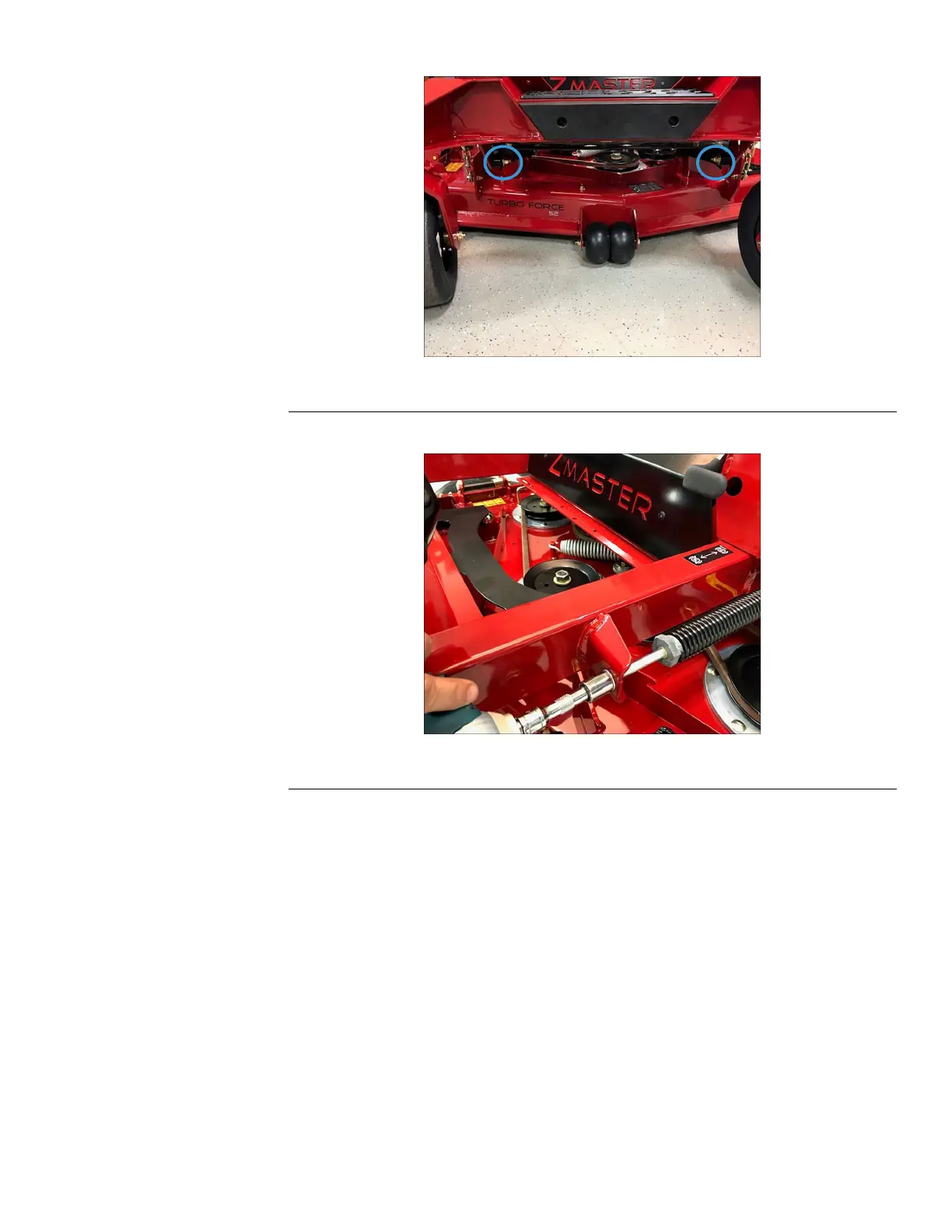

MowerDeckInstallation(continued)

g348210

Figure59

7.Installtheliftassistspringscrew.

g348207

Figure60

8.Installthedeckbelt.DeckBeltReplacement(page6–4)

9.Connectthebatterybyinstallingthepositivecablerst,thenthenegative

cabletothebattery.

MowerDeckReplacement(withDeckLift)

MowerDeckRemoval(withDeckLift)

1.ParkthemachineonalevelsurfaceanddisengagethePTO.Stopthe

engine,waitforallmovingpartstostopandremovethekey.Engagethe

parkingbrake.

2.Removethedeckbelt.DeckBeltReplacement(page6–4)

3.Removetheheight-of-cutpin.Lowerthedeckuntilit’sontheoorandthere

isslackinthechains.

4.Removethe2(3/8inch)locknutsandcarriageboltssecuringthedeckstrut

totheframe.

4000SeriesZMASTER®ServiceManual

Page6–7

Deck:ServiceandRepairs

3442-427RevA
