MowerDeckRemoval(continued)

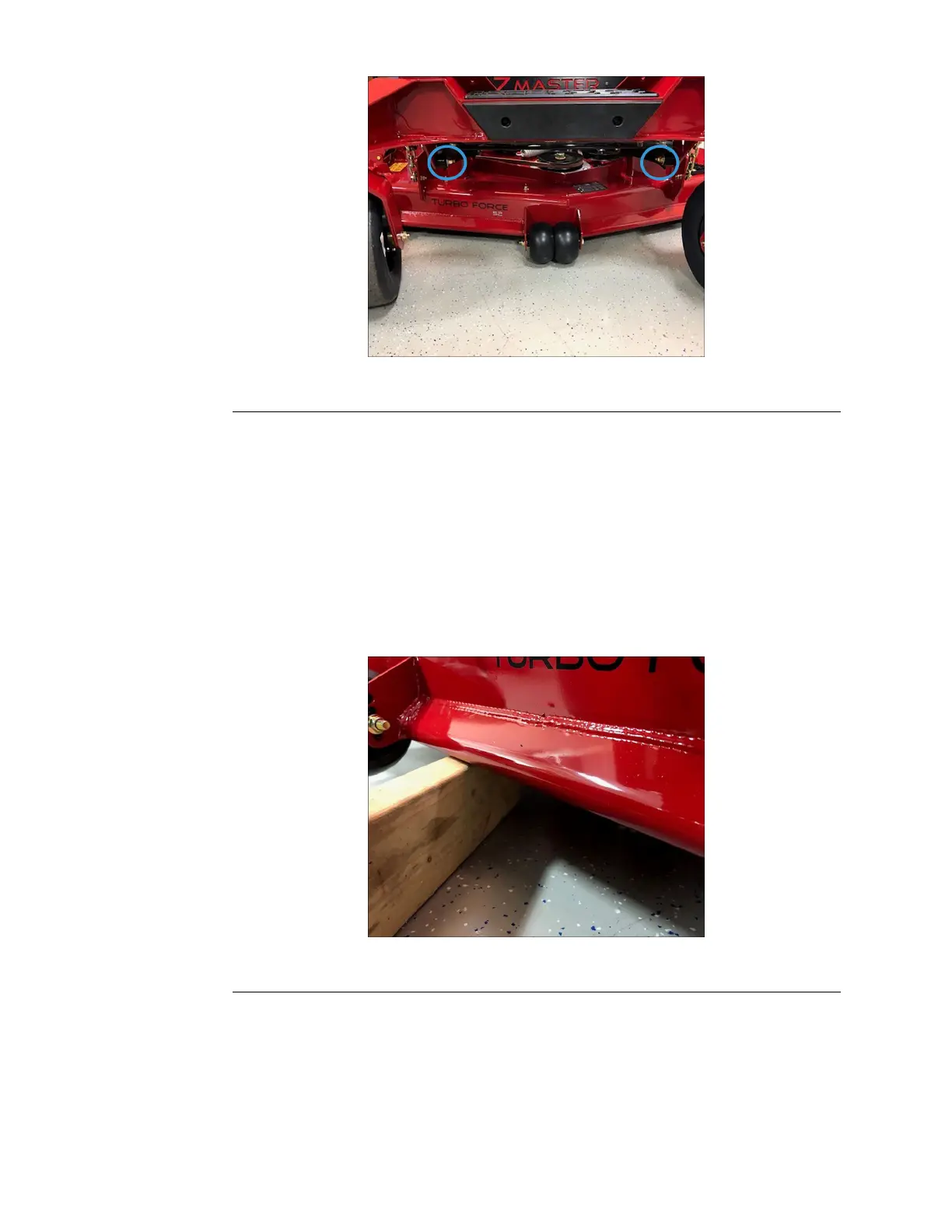

g348210

Figure57

8.Removethe4(3/8inch)shoulderbolts(1perdeckcorner)securingthedeck

liftchainstothedeckliftassembly.

9.Placethedeckliftintothetransportposition.

10.SlidethedeckouttheRHsideofthemachine.

MowerDeckInstallation

1.Placethedeckliftintothetransportposition.

2.SlidethedeckunderthemachinethroughtheRHside.

3.Placethedeckonthesameblocksthatwereusedintheremovalsection.

g348085

Figure58

4.Placethedeckliftatthelowestheight-of-cutposition.

5.Installthe4(3/8inch)shoulderbolts(1perdeckcorner)securingthedeck

liftchainstothedeckliftassembly.

6.Installthe2(3/8inch)locknutsandcarriageboltssecuringthedeckstrut

totheframe.

Deck:ServiceandRepairs

Page6–6

4000SeriesZMASTER®ServiceManual

3442-427RevA
