MowerDeckRemoval(withDeckLift)(continued)

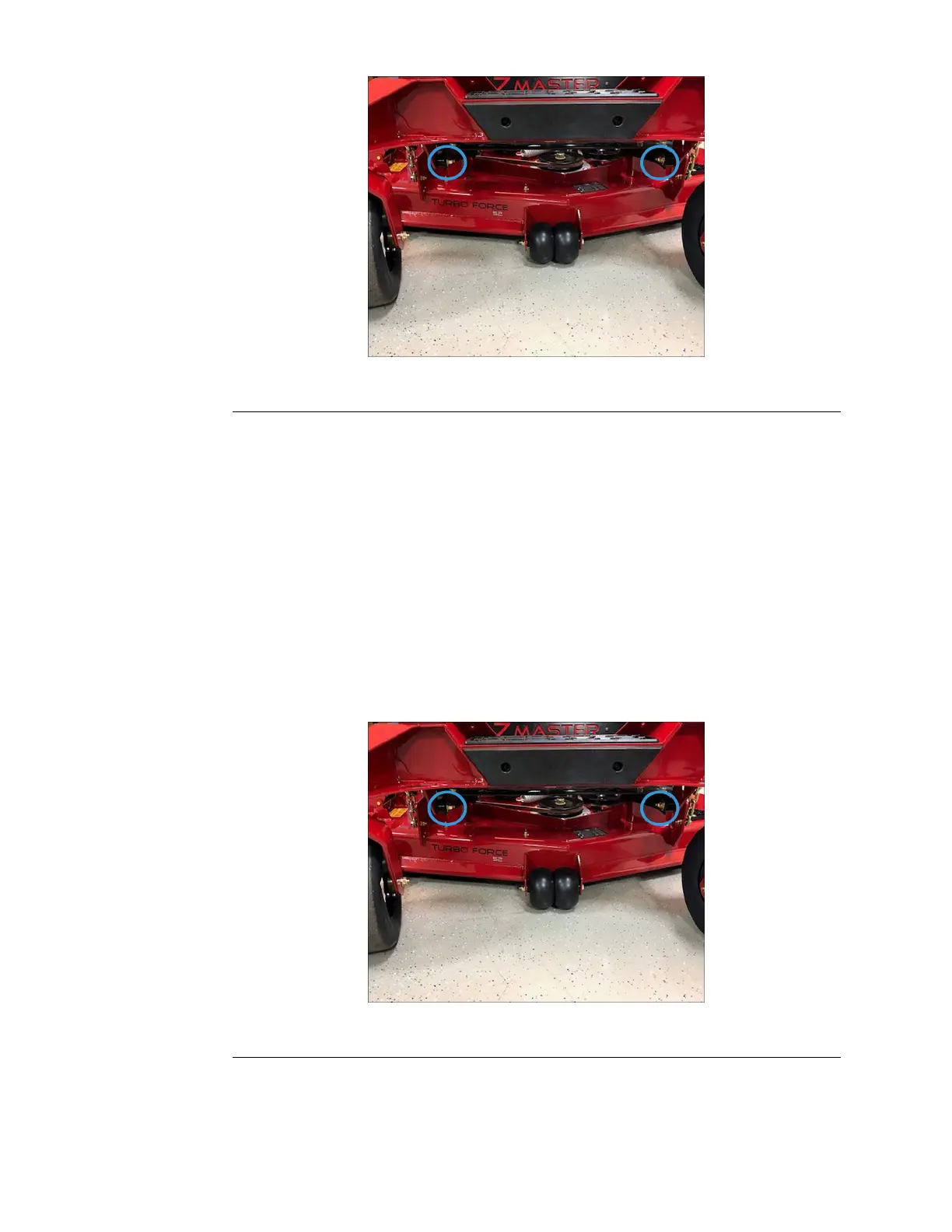

g348210

Figure61

5.Removethe4(3/8inch)shoulderbolts(1perdeckcorner)securingthedeck

liftchainstothedeckliftassembly.

6.Raisethedeckliftintothetransportposition.

7.SlidethedeckouttheRHsideofthemachine.

MowerDeckInstallation(withDeckLift)

1.SlidethedeckunderthemachinethroughtheRHside.

2.Lowerthedeckliftuntiltheliftchainscanbeattachedtothedeck.

3.Installthe4(3/8inch)shoulderbolts(1perdeckcorner)securingthedeck

liftchainstothedeckliftassembly.

4.Installthe2(3/8inch)locknutsandcarriageboltssecuringthedeckstrut

totheframe.

g348210

Figure62

5.Installthedeckbelt.DeckBeltReplacement(page6–4)

Deck:ServiceandRepairs

Page6–8

4000SeriesZMASTER®ServiceManual

3442-427RevA
