LeftConsoleRemoval(continued)

g346223

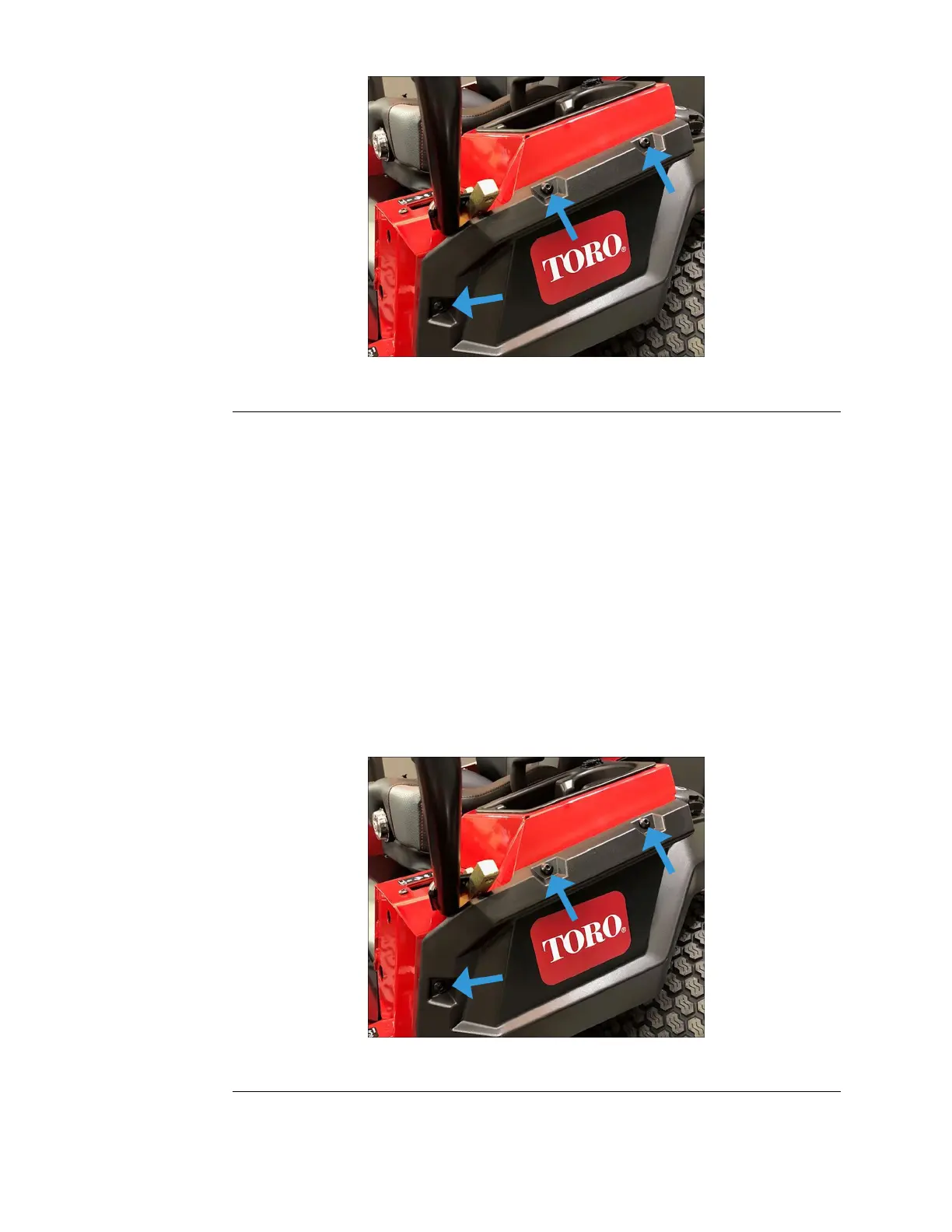

Figure28

4.DisconnectthewiringharnessfromtheUSBcharger.

5.Removethe2(5/16inch)locknutsandcarriageboltssecuringtheLH

consoletothechassis.

6.LifttheLHconsoleawayfromthemachine.

LeftConsoleInstallation

1.InstalltheLHconsoleontothemachine.

2.Installandtightenthe2(5/16inch)locknutsandcarriageboltssecuringthe

LHconsoletothechassis.

3.ConnectthewiringharnesstotheUSBcharger.

4.InstalltheLHsidepodtotheLHconsole.Installthe4(1/4-20inch)torx

screwssecuringtheLHsidepodtotheLHconsole.

Note:3screwsareshownintheimagebelow.

g346223

Figure29

5.Connectthebatterybyinstallingthepositivecablerst,thenthenegative

cabletothebattery.

Chassis:ServiceandRepairs

Page5–14

4000SeriesZMASTER®ServiceManual

3442-427RevA
