MotionControlAssemblyInstallation(continued)

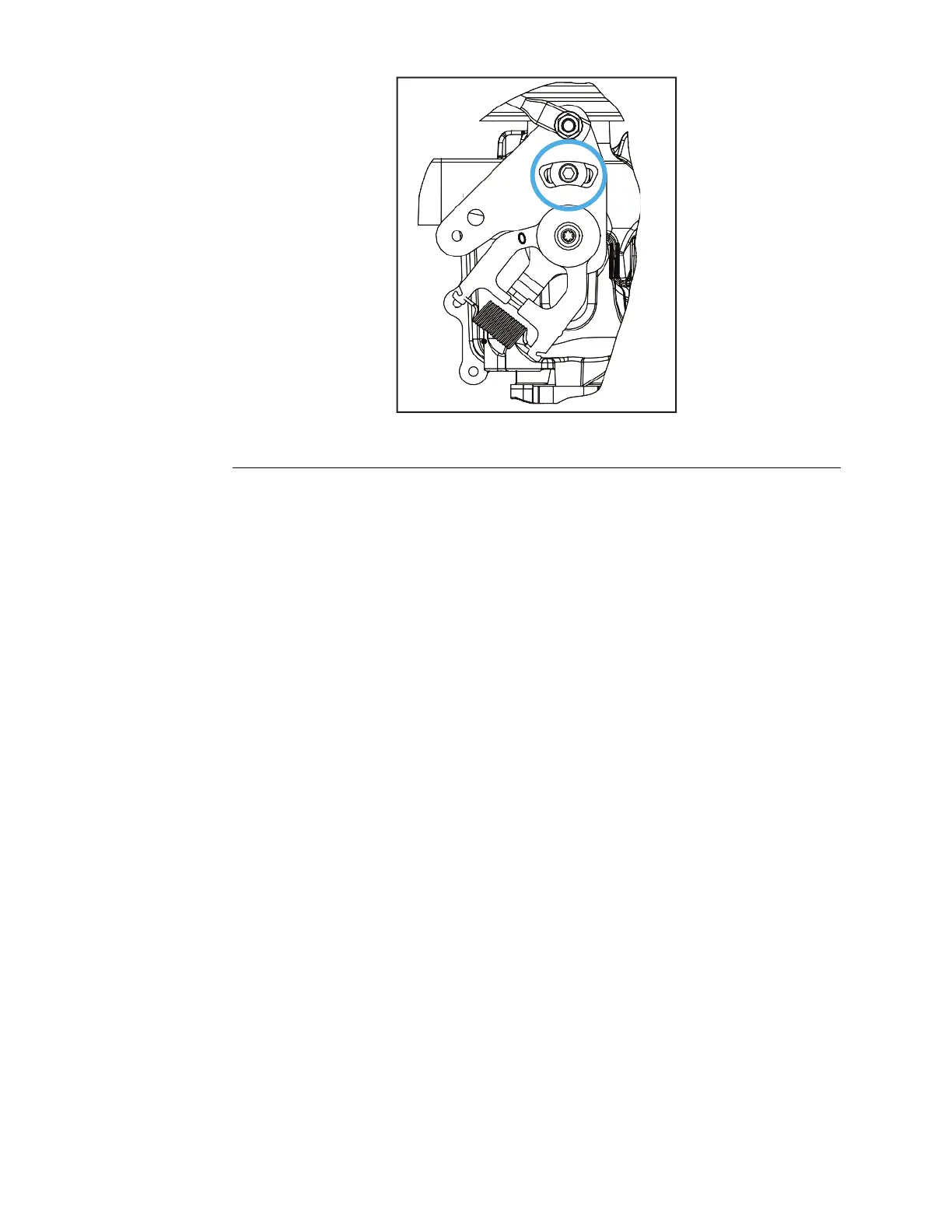

g337846

Figure53

5.Connectthemotioncontroldampertothemotioncontrolassemblyand

torquetheboltto108-135N•m(90±10in-lb).

6.Installthemotioncontrolcovertotheframe,securewiththe2screws.

7.Connectthemotioncontrolhandletothemotioncontrolassembly.

8.Installthesideconsole.RightConsoleReplacement(page5–11)Left

ConsoleReplacement(page5–13)

9.Connectthebatterybyinstallingthepositivecablerst,thenthenegative

cabletothebattery.

10.Adjusttheneutralsetting.

11.Adjustthetrackingifnecessary.

Chassis:ServiceandRepairs

Page5–32

4000SeriesZMASTER®ServiceManual

3442-427RevA
