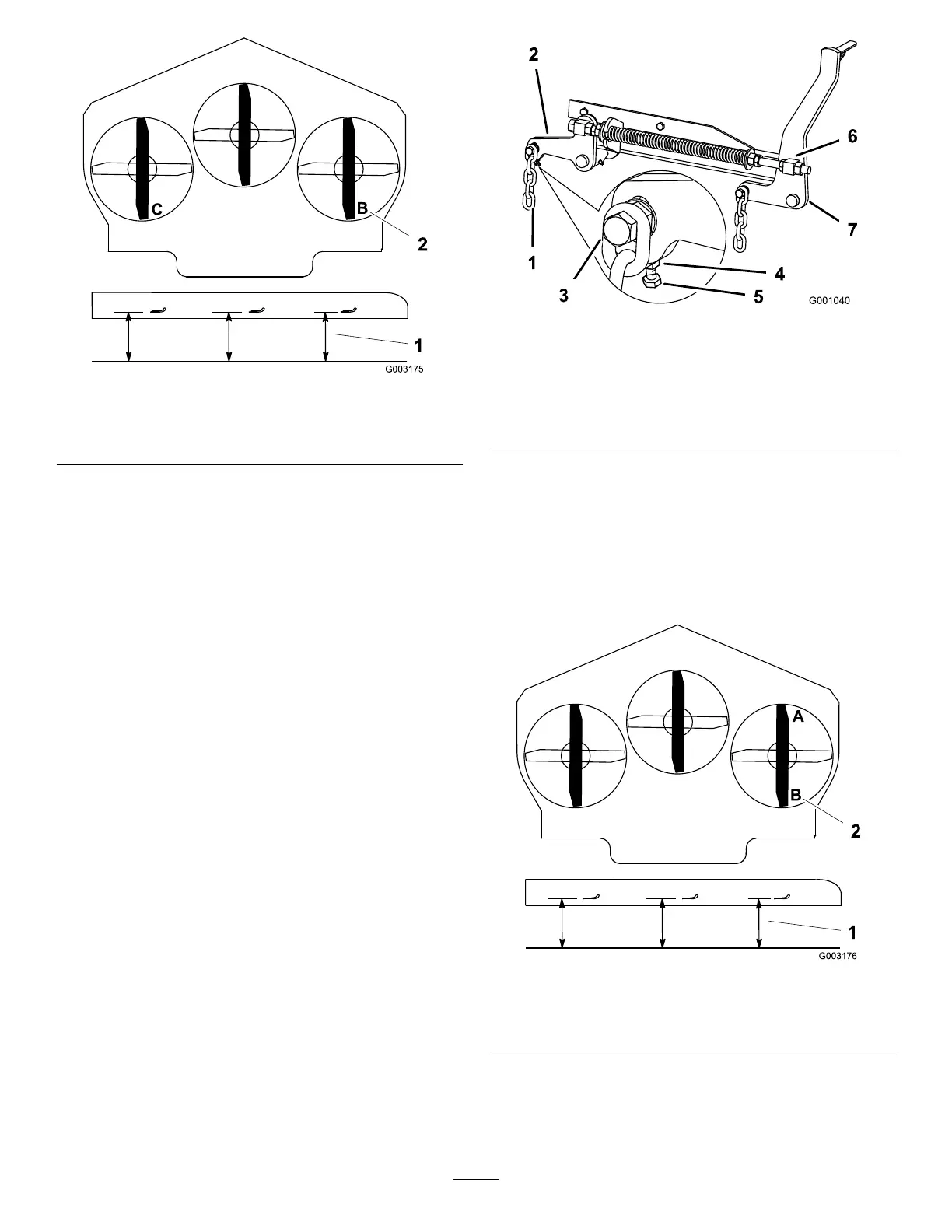

Figure74
1.Measureherefromblade
toahardsurface.
2.MeasureatBandC.
7.IfthemeasurementsatpositionsBorCarenot
correct,loosentheboltattachingtherearchain
totherear-supportarm(Figure75).
8.Loosenthejamnutundertherear-support
armandadjusttheadjustmentbolttogeta
measurementof7.9to8.3cm(3-1/8to3-1/4
inches)(Figure75).
Note:Itisrecommendedthatbothsidesofthe
mowerareadjustedthesamedistance.
9.Tightenthejamnutundertherear-supportarm
andtightentheboltsecuringthechaintothe
rear-supportarm.
10.Adjusttheoppositesideifneeded.
g001040
Figure75
1.Rearchain5.Adjustmentbolt
2.Rear-supportarm6.Frontswivel
3.Bolt7.Front-supportarm
4.Jamnut
AdjustingtheFront-to-RearMower
Pitch
1.Positiontherightbladefront-to-rear(Figure76).
2.MeasuretherightbladeattheAlocation,from
alevelsurfacetothecuttingedgeoftheblade
tip(Figure76).
g003176
Figure76
1.Measureherefromblade
tohardsurface
2.MeasureatAandB
3.Recordthismeasurement.
4.MeasuretherightbladeattheBlocation,from
alevelsurfacetothecuttingedgeoftheblade
tip(Figure76).
